In the previous post, I showed you Siemens star images made with the Nikon 135/1.8 Plena on the Z7 with the star in the center of the frame. In this post, the images comes from the lower left corner.
- Edelkrone Tripod X Pro
- Arca Swiss C1
- Manual exposure
- EFCS
- ISO 64
- Delay set to 2 seconds
- Six shots per f-stop
- Target centered
- Stops: f/1.8, f/2, f/2.8, f/4, f/5.6, f/8, f/11
- Shutter speeds: 1/320, 1/250, 1/125, 1/60, 1/30, 1/15 seconds
- Developed in Lr with default settings except for white balance, and sharpening set to 0

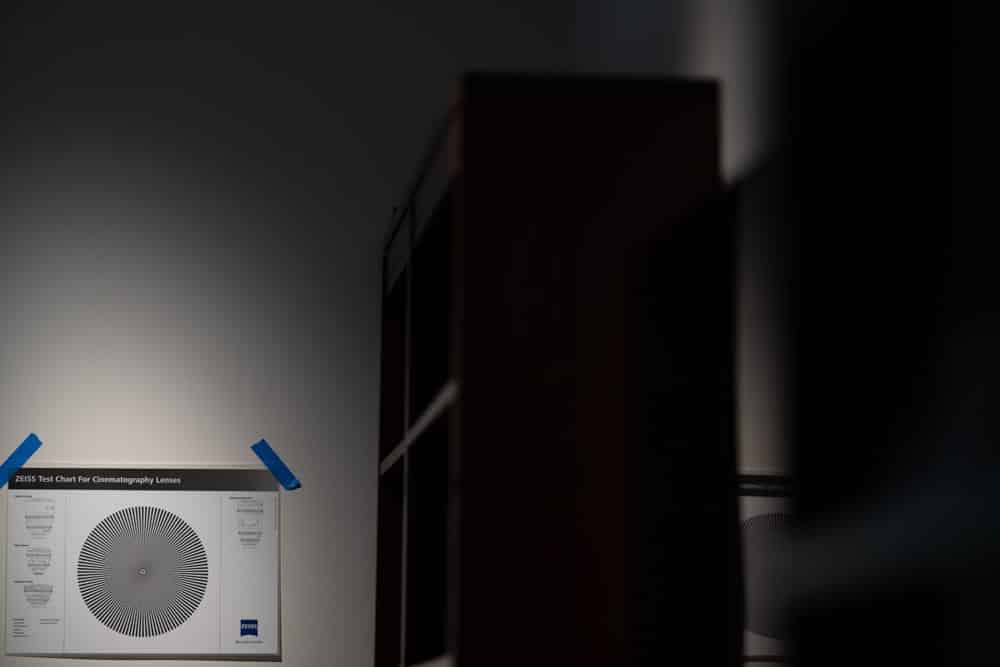

An uncropped image:
Crops, at 250% magnification:

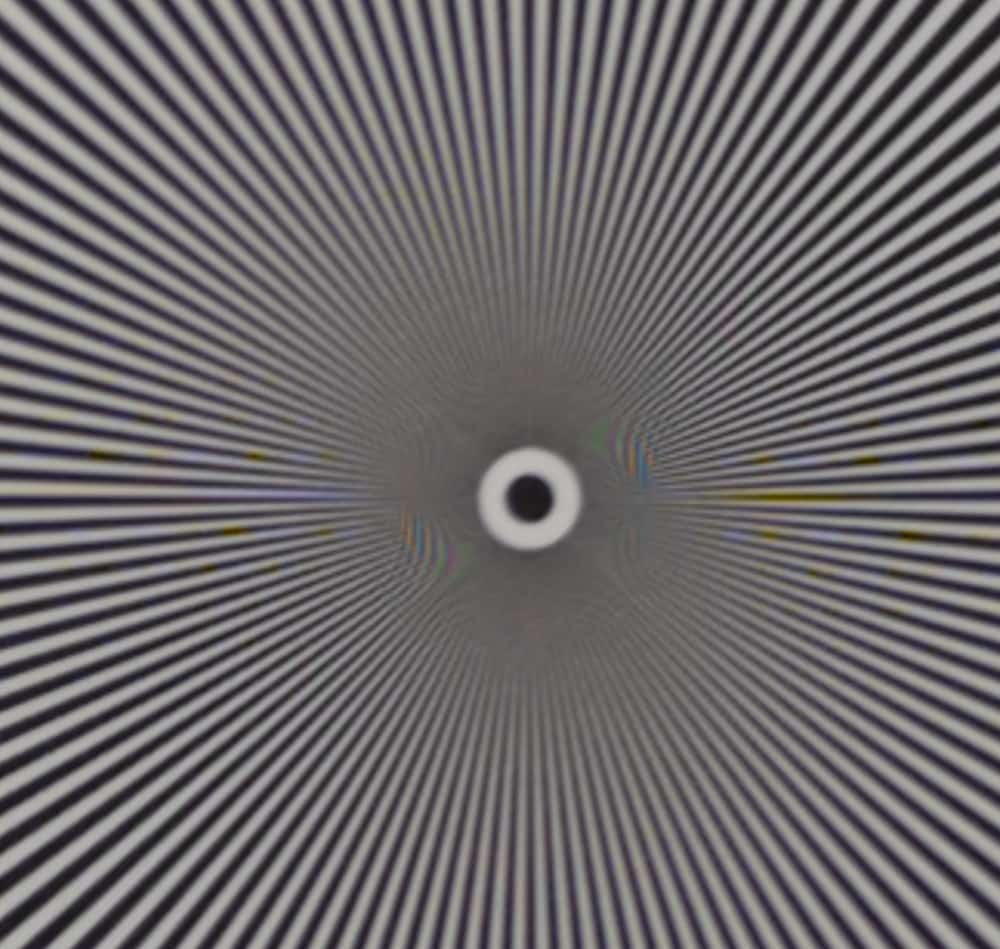

Wide open radial lines have higher resolution than tangential ones.There is aliasing for both kinds on lines.

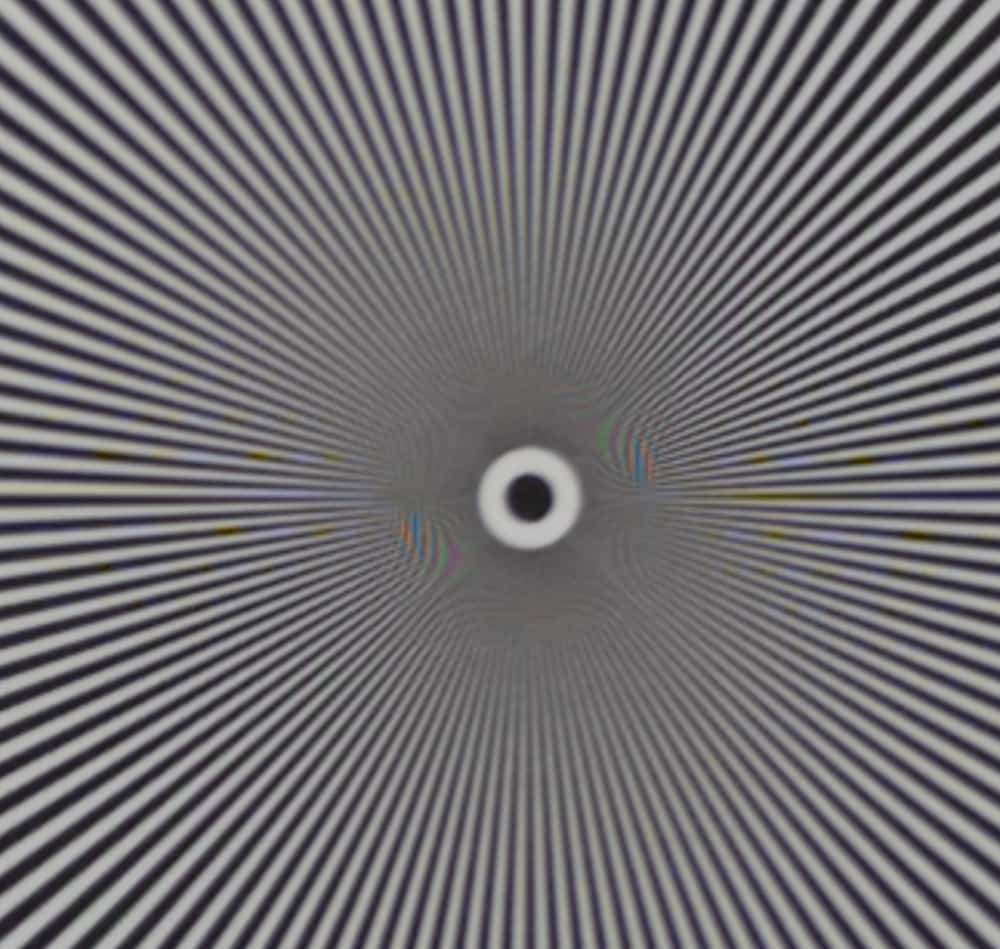

Not much difference at f/2.

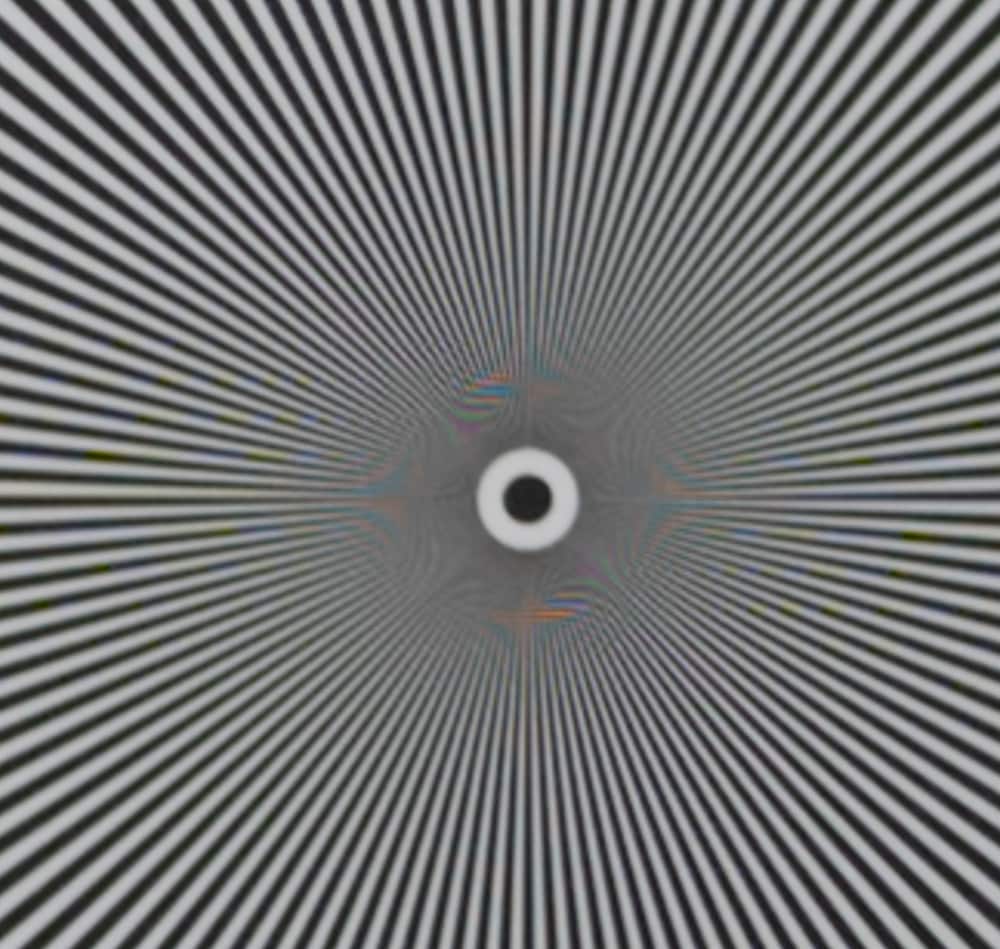

f/2.8 is a little better.

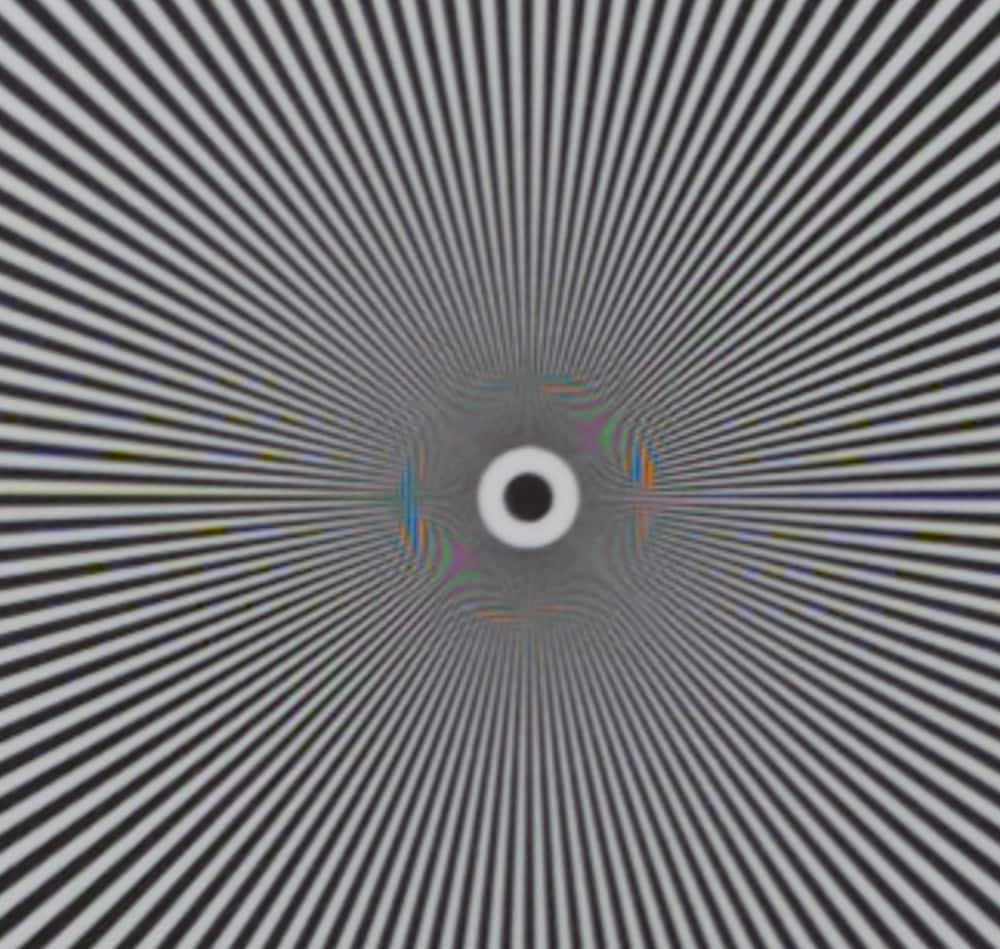

F/4 is very sharp.

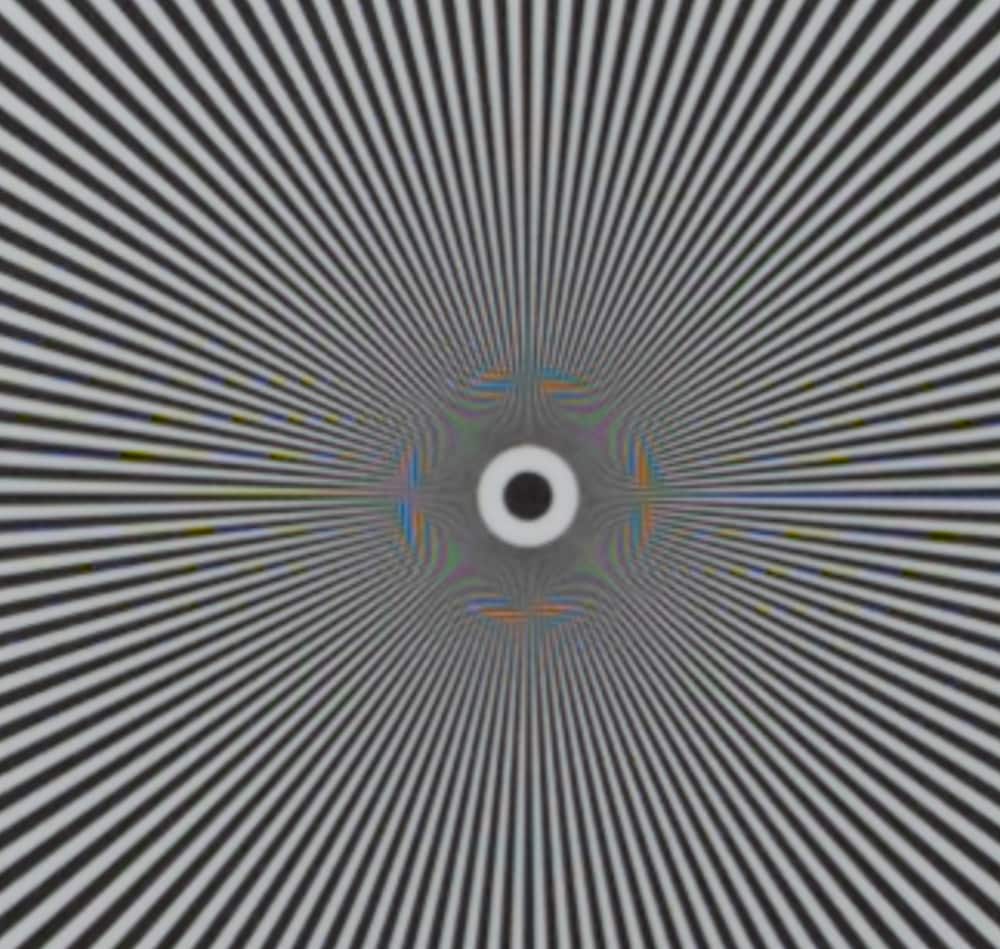

So is f/5.6.

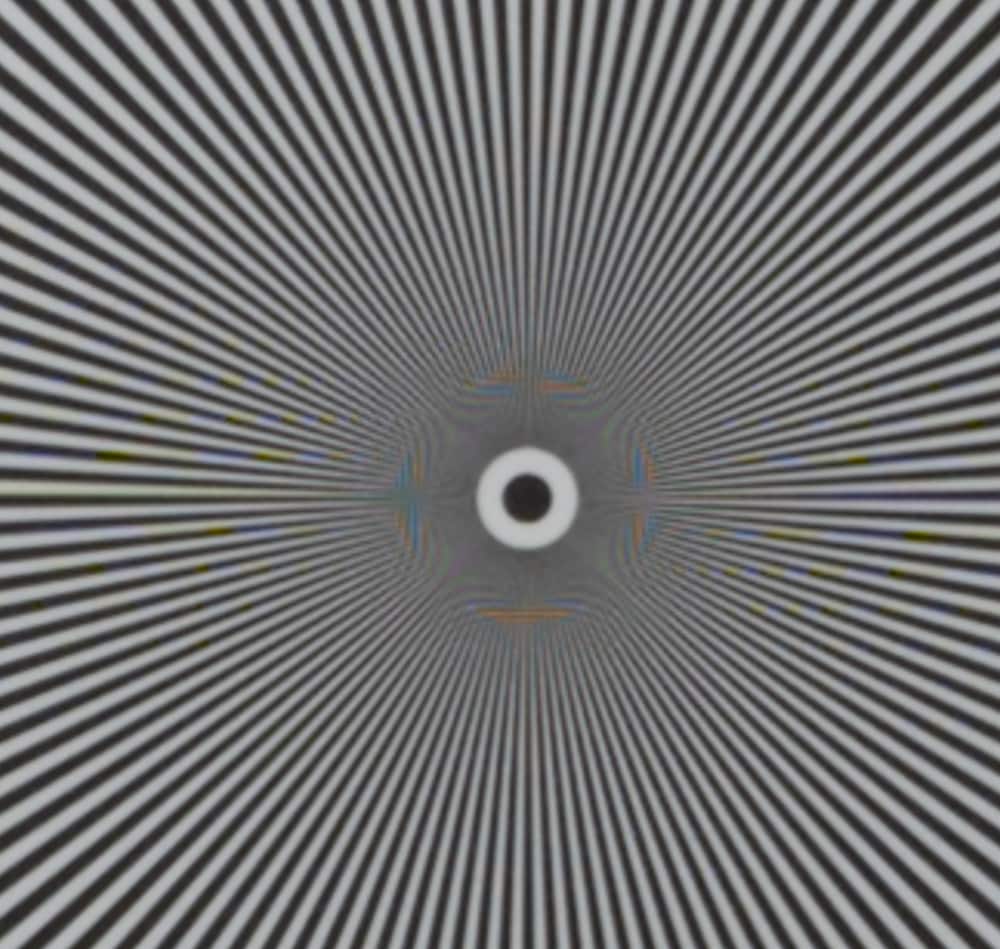

Diffraction is costing us a little bit at f/8.

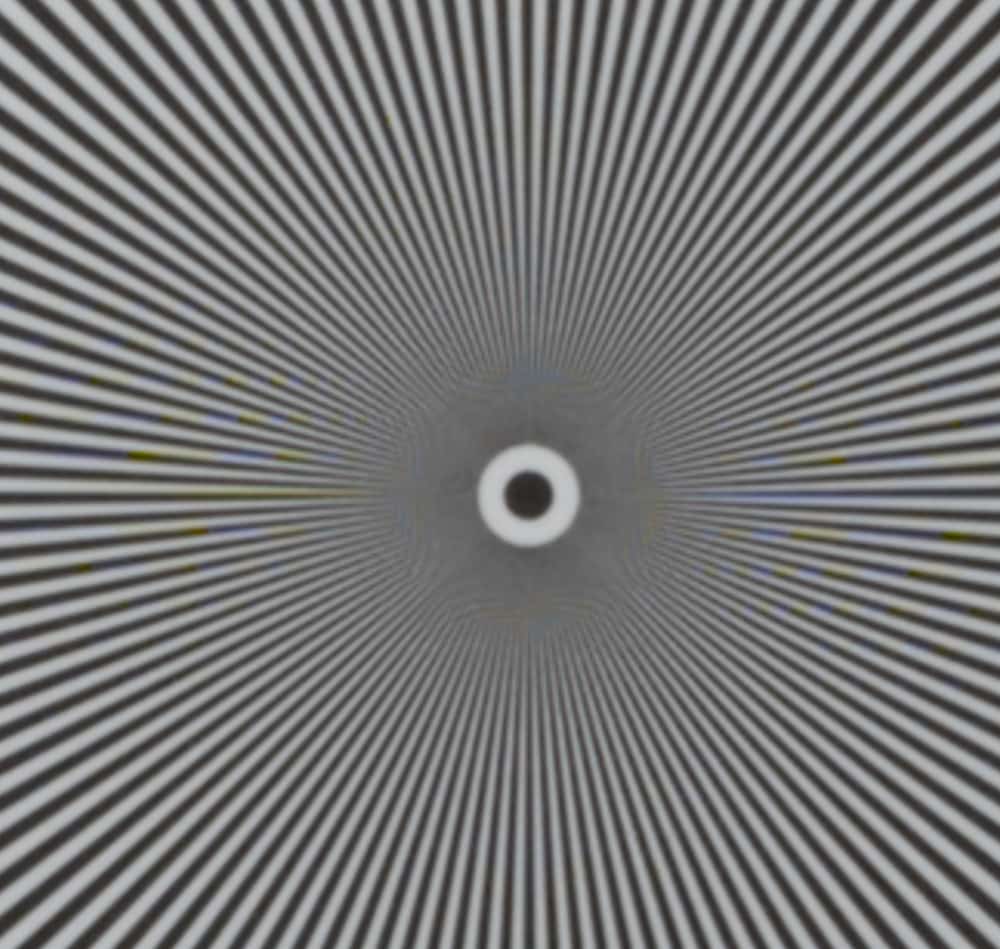

Lots of diffraction at f/11, but still some aliasing.
Very impressive!
