The particulars:
- Edelkrone Tripod X Pro
- Arca Swiss C1
- Manual exposure
- EFCS
- ISO 64
- Delay set to 5 seconds
- Six shots per f-stop
- Target centered
- Stops: f/0.95, f/1.4, f/2, f/2.8, f/4, f/5.6, f/8
- Shutter speeds: 1/1250, 1/500, 1/250, 1/125, 1/60, 1/30, 1/15 seconds
- Developed in Lr with default settings except for white balance and sharpening set to 0

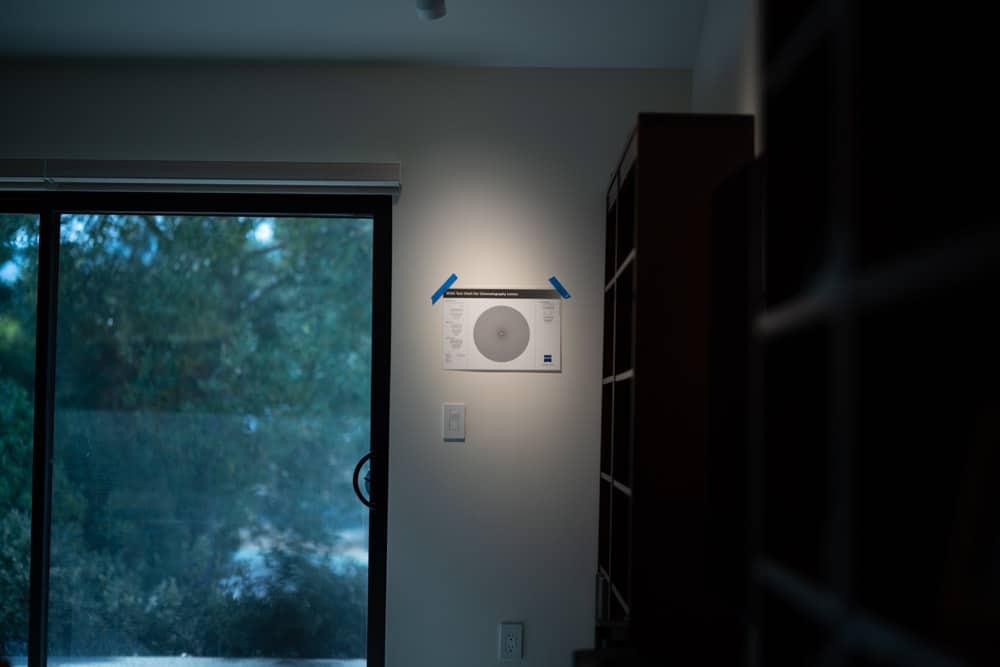

Over all test image:
In the center, at about 250% magnification:
The contrast at the Nyquist frequency isn’t too high, but the lens definitely is laying down more detail than the sensor can resolve.
At f/1.4, the amount of detail is truly impressive.

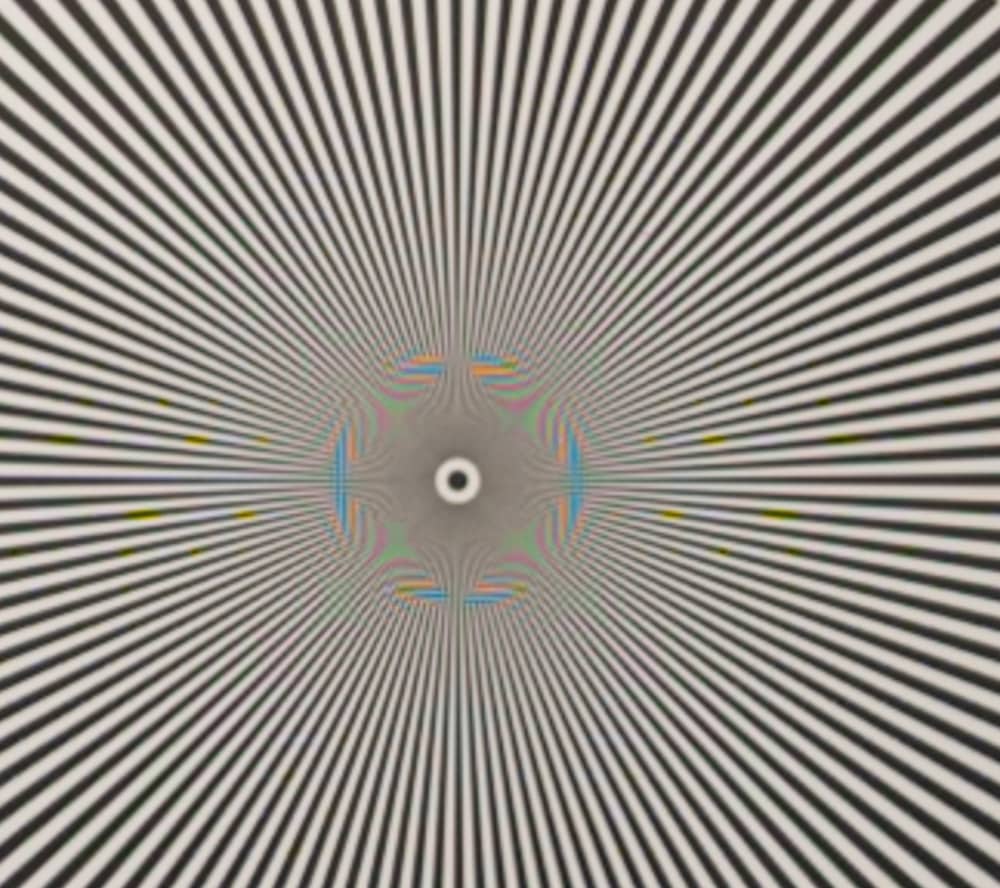

F/2 is about the same as f/1.4.

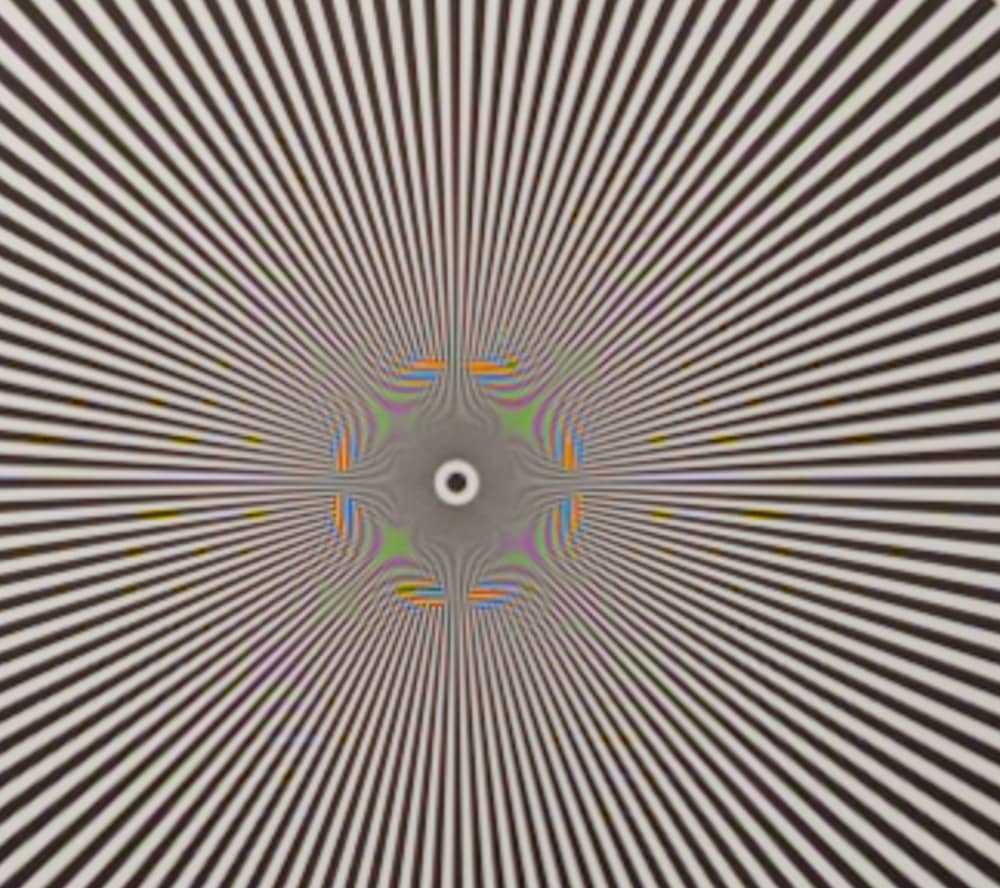

A little sharper here.

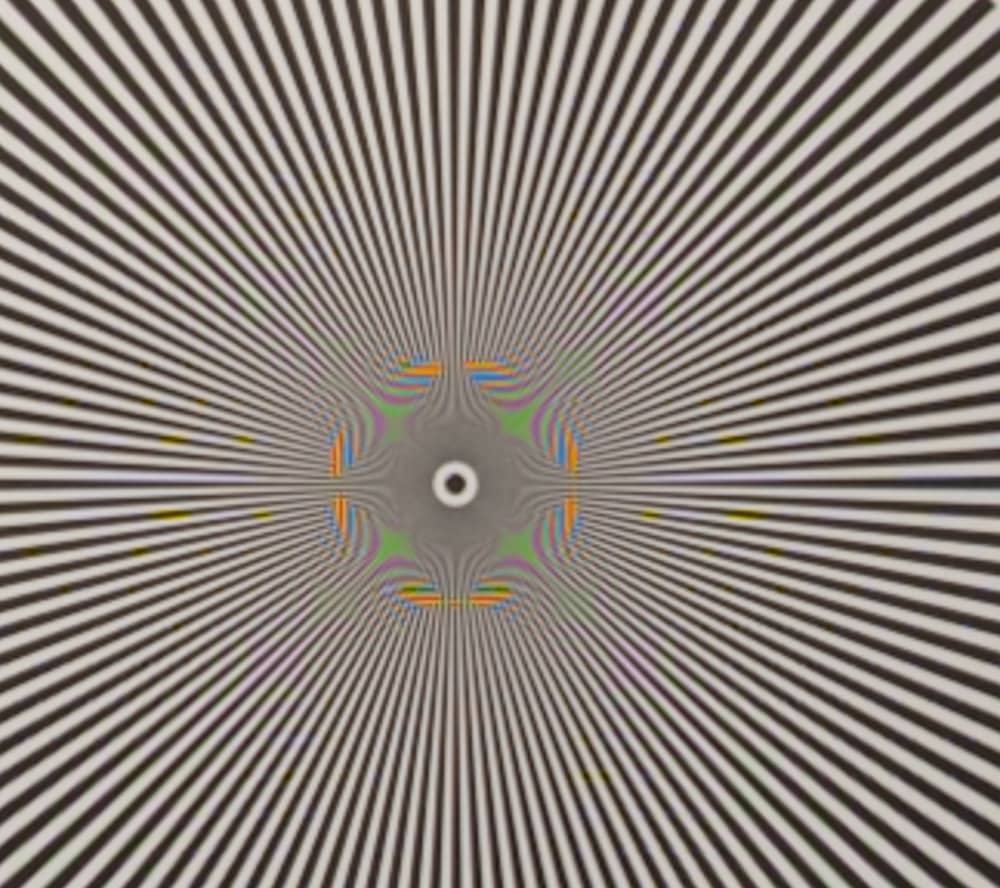

About the same as f/2.8.

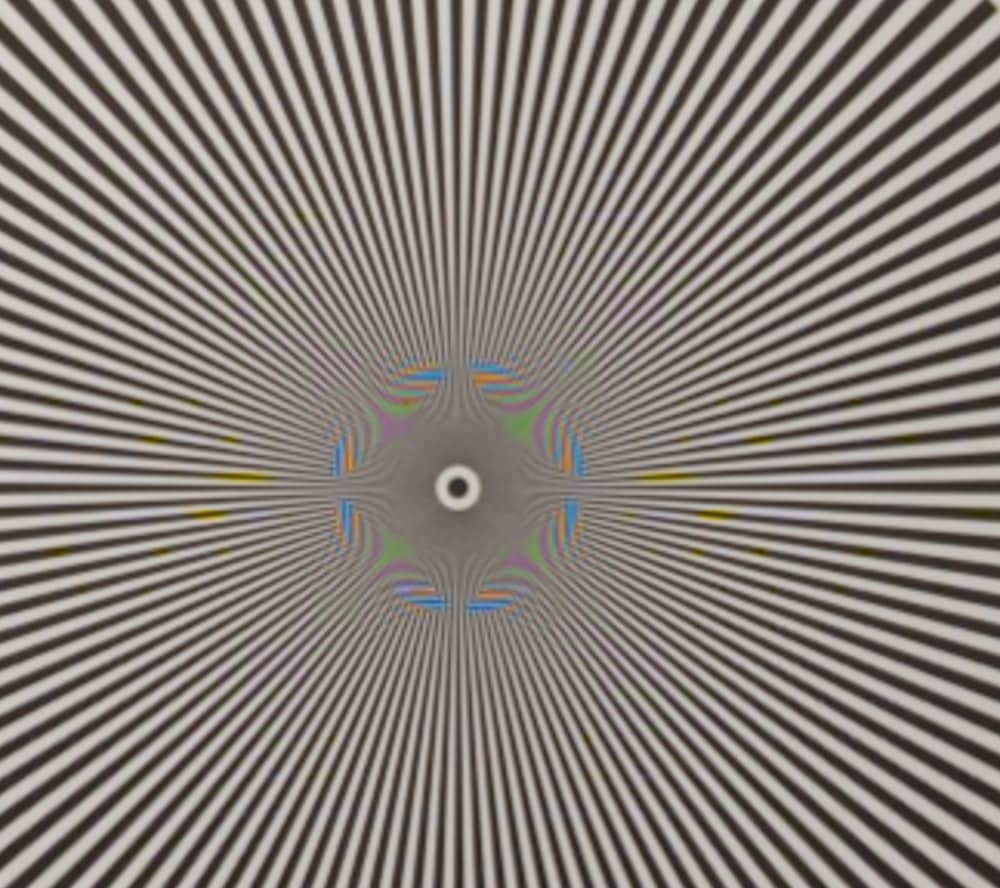

Diffraction is beginning to cost us detail.
![](https://blog.kasson.com/wp-content/uploads/2024/07/Z709045.jpg)

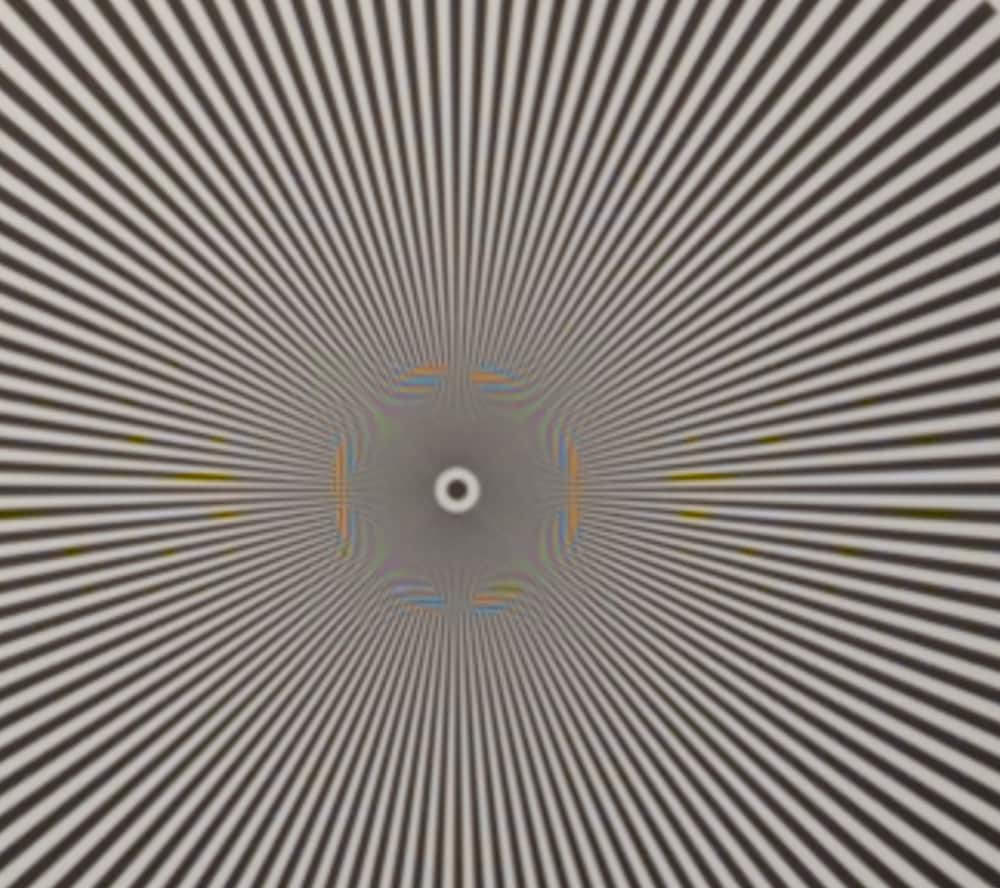

Even more detail loss at f/8.
This is outstanding performance.
