In the previous post, I showed you MTF curves for the Rodenstock 105/5.6 HR Digaron Macro on GFX 100S at 1:1. Now I’ll show you the results of testing the same lens at 1:2 magnification, which is close to the magnification that you’d used for digitizing 6×6 or 6×7 negatives.
Here’s the test procedure:
- GFX 100S
- Foba camera stand
- C1 head
- Lens focused to get to 1:2 magnification
- ISO 100
- Electronic shutter
- Indicated f/5.6 through f/8 in half-stop steps
- Exposure time adjusted in M mode
- Cognisys rail, 100 exposures, 80 um step size
- Initial focus short of target
- Convert RAF to DNG using Adobe DNG Converter
- Extract raw mosaics with dcraw
- Extract slanted edge for each raw plane in a Matlab program the Jack Hogan originally wrote, and that I’ve been modifying for years.
- Analyze the slanted edges and produce MTF curves using MTF Mapper (great program; thanks, Frans)
- Fit curves to the MTF Mapper MTF50 values in Matlab
- Correct for systematic GFX focus bracketing inconsistencies
- Analyze and graph in Matlab

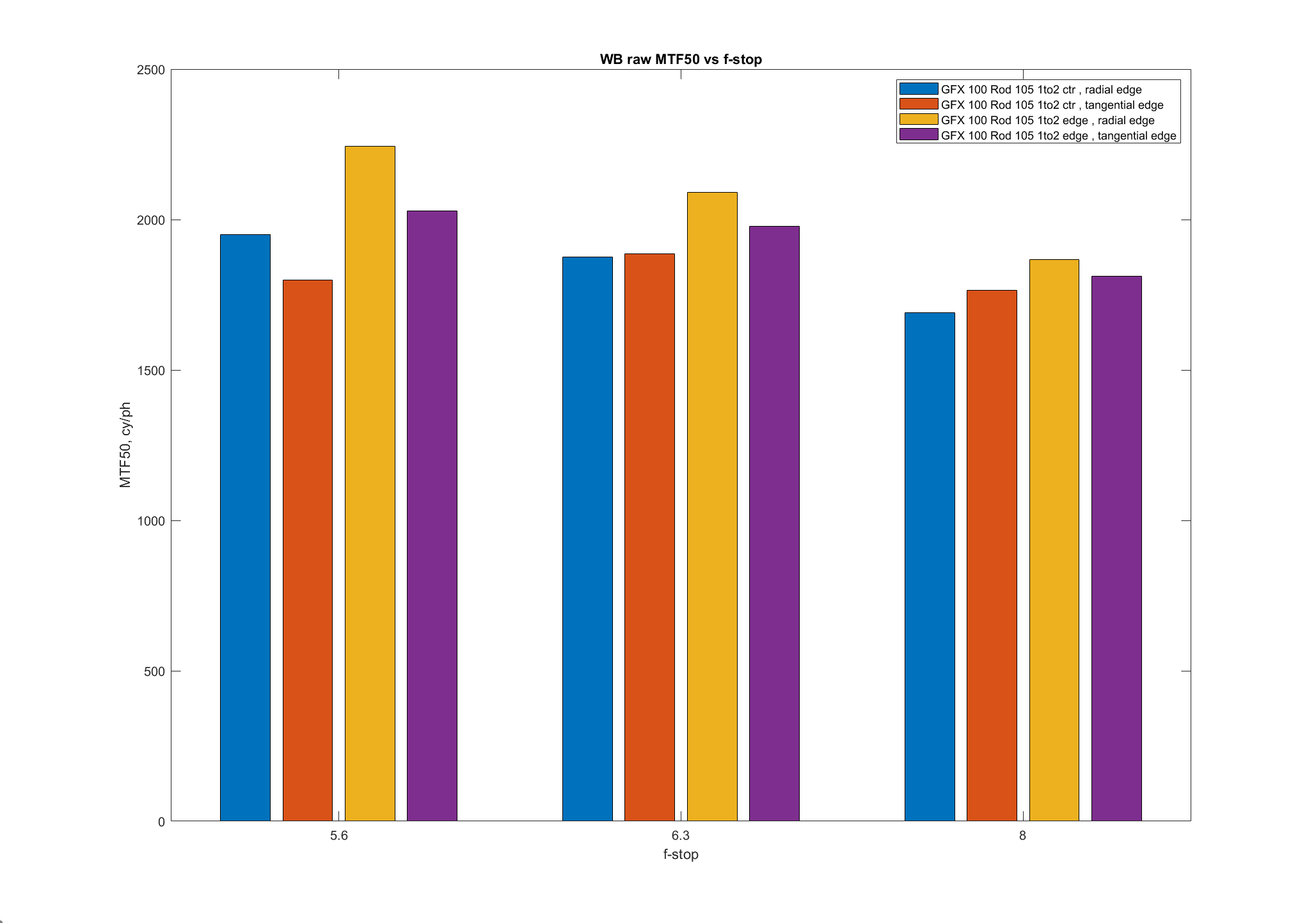

Here are the results:
The vertical axis is MTF50 in cycles per picture height. Higher is sharper. The horizontal axis is f-stop.
- The blue and red columns are for the lens on axis, with, respectively, a horizontal and a vertical edge.
- The yellow and purple columns are for the lens at the far right edge, with, respectively, a horizontal and a vertical edge.
These are excellent.

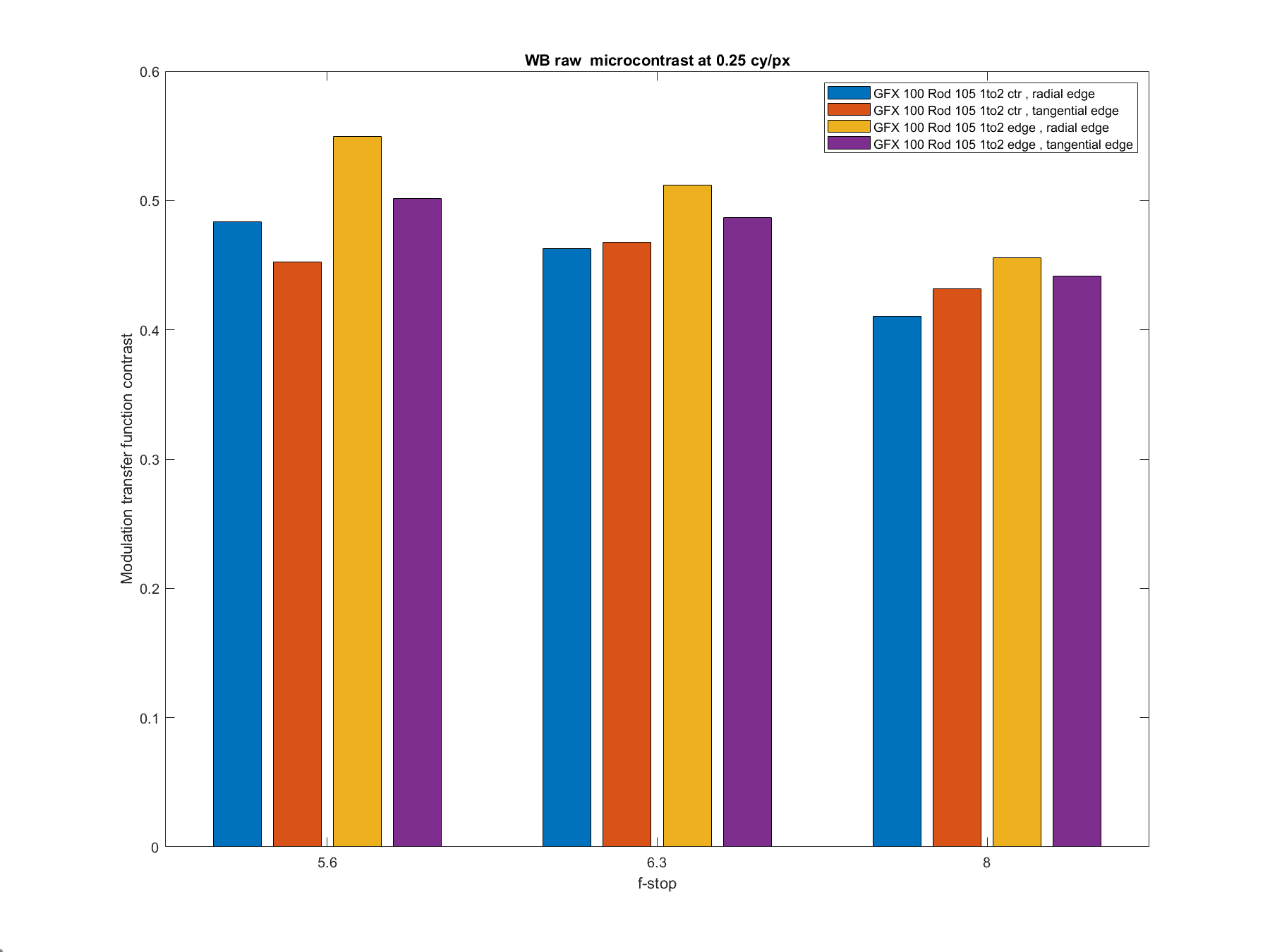

Here is the microcontrast, which for this test I’m defining as the contrast at 1/4 the pixel pitch.
Also excellent.

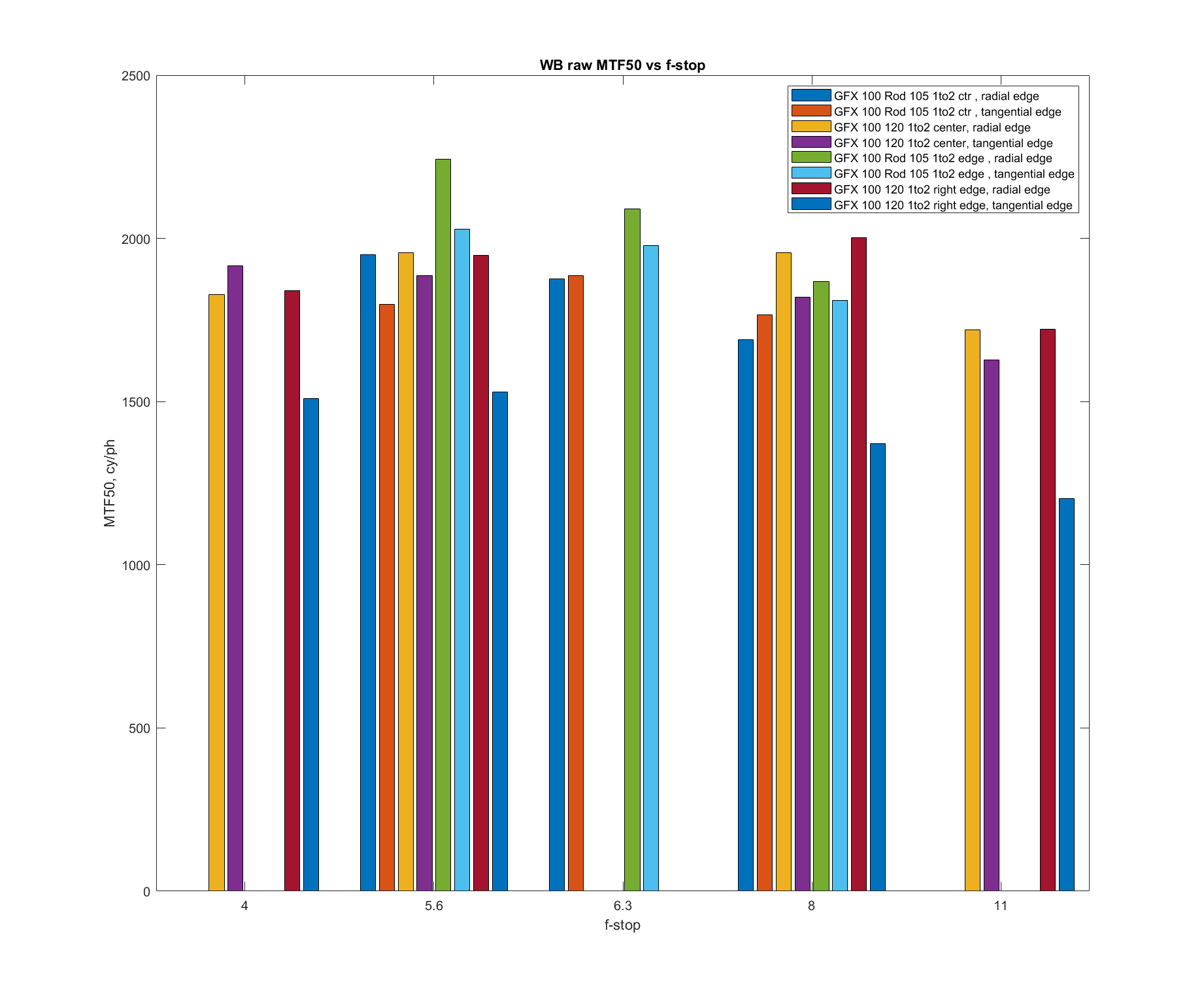

Here’s how the Rodenstock lens compares with the Fuji 120 mm f/4 GF macro:
The Rodenstock lens is a better performer off axis, but the Fuji results are quite credible. Because of internal focusing, the Fuji is faster when they’re both set to f/5.6 and f/8, which reduces diffraction and boosts the results on axis.
