Z7 magnified LCD lag

This is one in a series of posts on the Nikon Z7. You should be able to find all the posts about that camera in the Category List on the right sidebar, below the Articles widget. There’s a drop-down menu there that you can use to get to all the posts in this series; just look for “Nikon Z6/7”.

While I was doing lens testing yesterday of the Nikkor 35/1.8S and 24-70/4S lenses on the Z7, I had a devil of a time with manual focusing on the Siemens Star target. I think part of it was the focus-by-wire (FBW) firmware in the camera. Back in the NEX-5 days, FBW was pretty lousy with the Sony MILCs, too, but they’ve improved a lot. Nikon seems to have a long path ahead of them to come down that learning curve.

But I also noticed something that seemed just plain weird: the image seemed to change focus after I’d stopped turning the ring. Could it be latency?

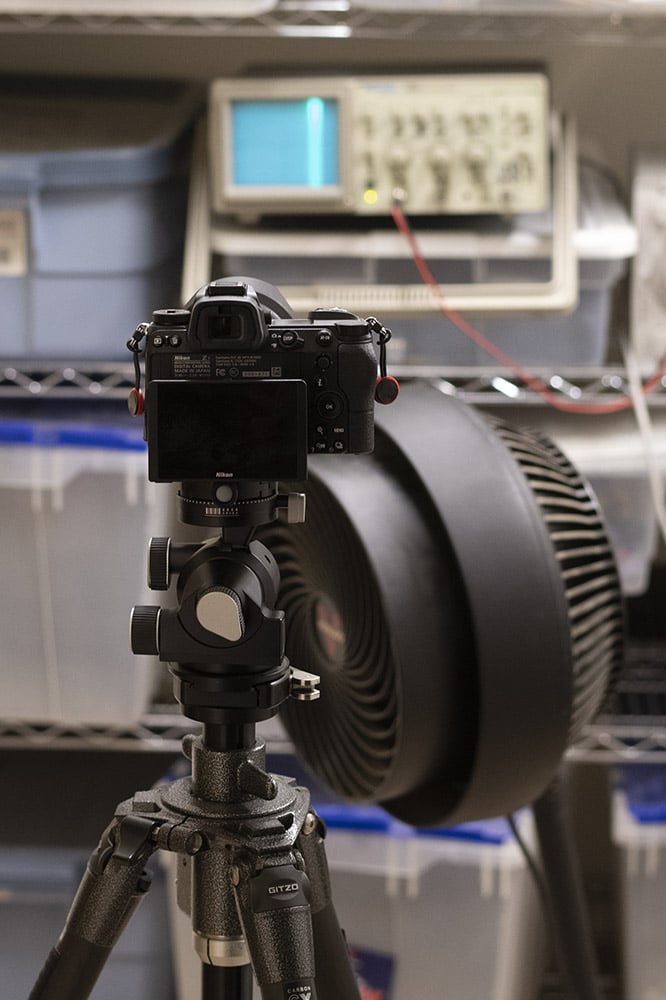

I put together this setup this morning:

You’re looking at the back of the Z78, which has the 35/1.8 on it. The camera is aimed at an ancient Tektronix analog oscilloscope — this won’t work reliably with a digital one. There’s a function generator set to a high frequency, with the amplitude the full vertical scale of the ‘scope. I set the time base to 50 milliseconds per division, or half a second to traverse the entire screen. I set the Z7 to maximum magnification and adjusted the distance do that the ‘scope screen filled the finder. Then I turned off the room lights and took a picture of the back of the camera and the ‘scope screen at the same time with the Nikon D850, which takes about 3 milliseconds to make an exposure. The exposure itself was 4 msec long.

Here’s what it looked like:

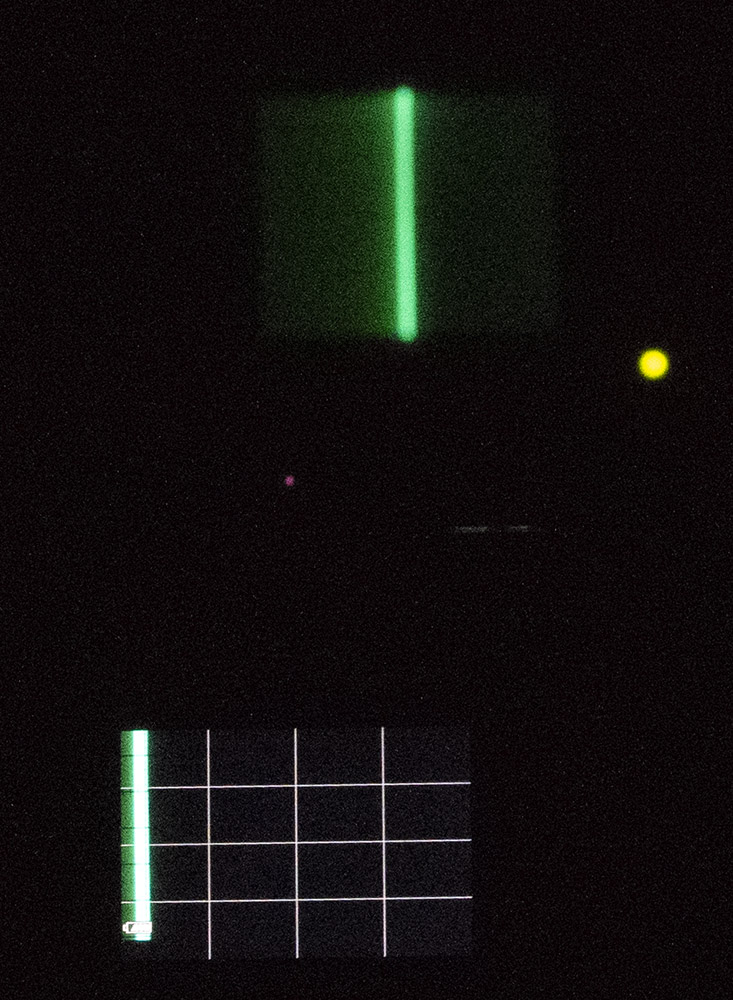

The trace on the ‘scope is almost to the middle of the screen, but the image of that trace on the camera’s LCD is about at the one-division line. That means that what the camera is displaying is about 200 milliseconds behind real time.

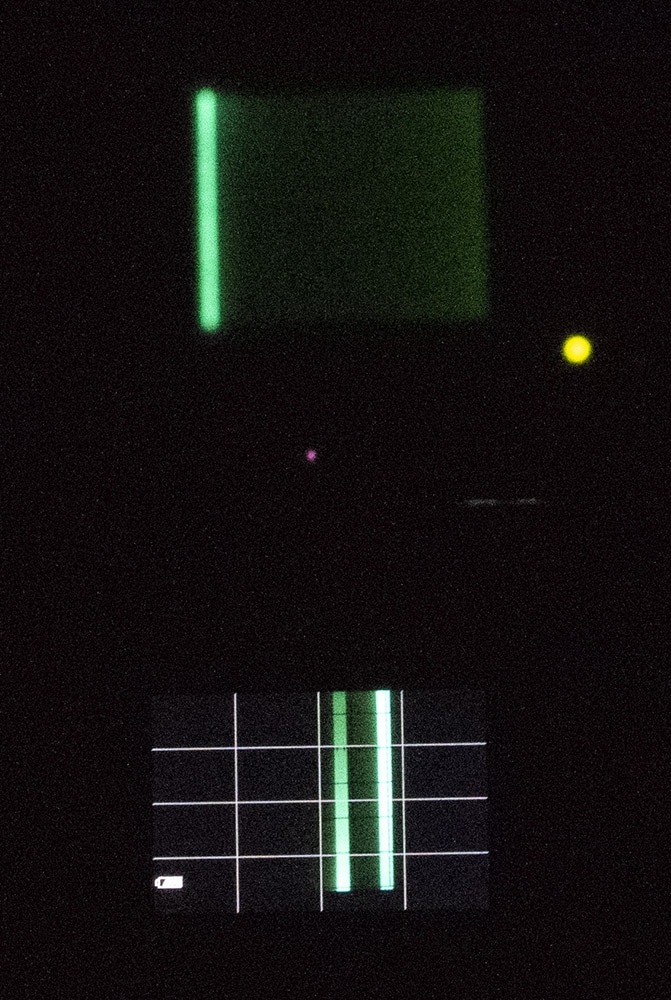

The next image shows the refresh timing:

In this case, the oscilloscope has completed the pass that is shown on the camera screen, has started another one, and is a bit over 100 msec into it. The bright trace on the camera back is thus about 200 msec behind. However, the dimmer trace is from the previous refresh of the LCD, and is another 50 msec behind.

Thus the latency of the Z7 LCD in fully-magnified mode is between 200 and 250 msec. I’m assuming that it’s about the same in the EVF, but I don’t have a way to measure that.

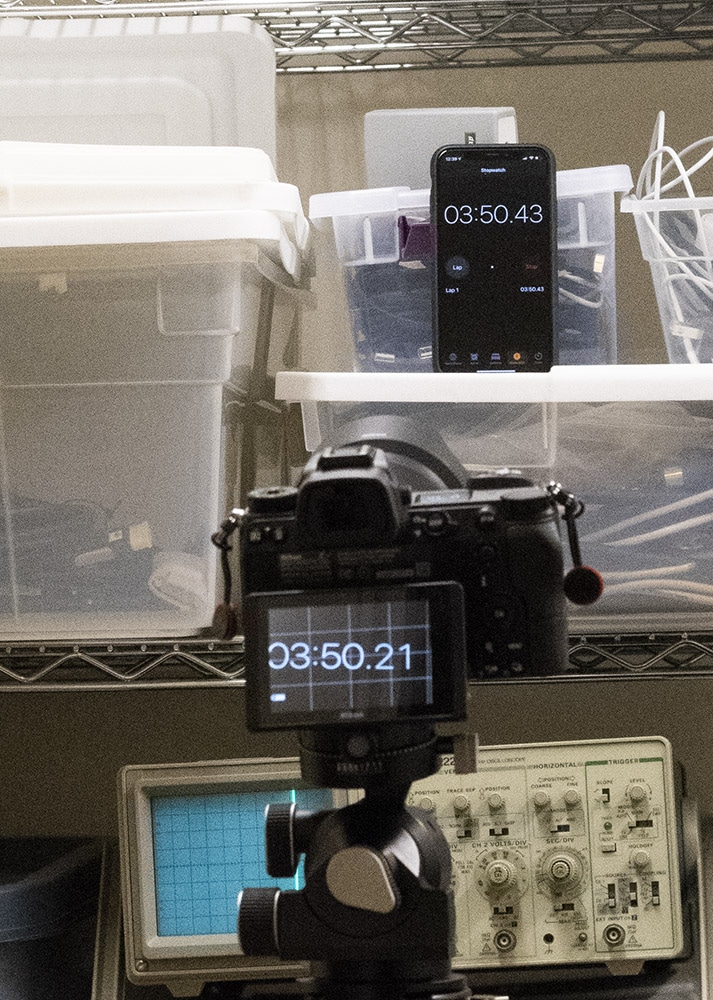

Horshack came up with a better way to make this measurement:

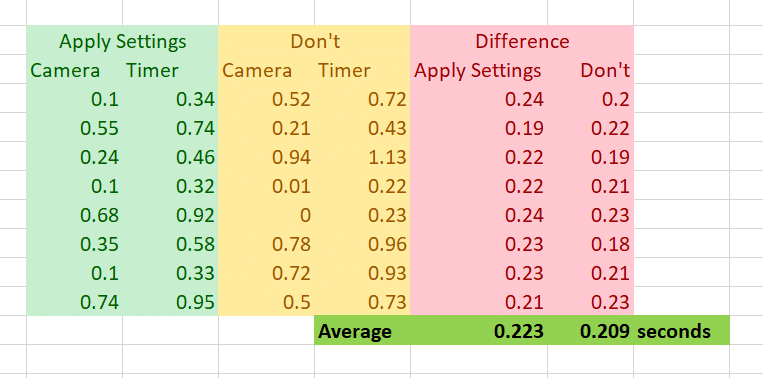

The results, for both possibilities of the Z7 d8 menu switch:

About what we got with the ‘scope, and I trust these numbers more. If the d8 function changes the latency, it doesn’t change it by much.

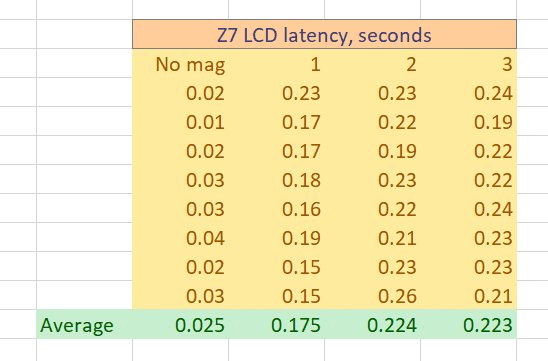

Here are the results at all four magnification settings, including unmagnified, with apply settings and peaking on for the first three columns:

Latency is quite low at no magnification, about 25 msec, but adding magnification, even a little, makes things much worse. Peaking does not affect the results.

And, by the way, I figure the latency of the image in an optical finder in a DSLR is about 100-200 picoseconds. There’s no magnified view, though.
