Sony a7S noise reduction in-camera processing of raw files

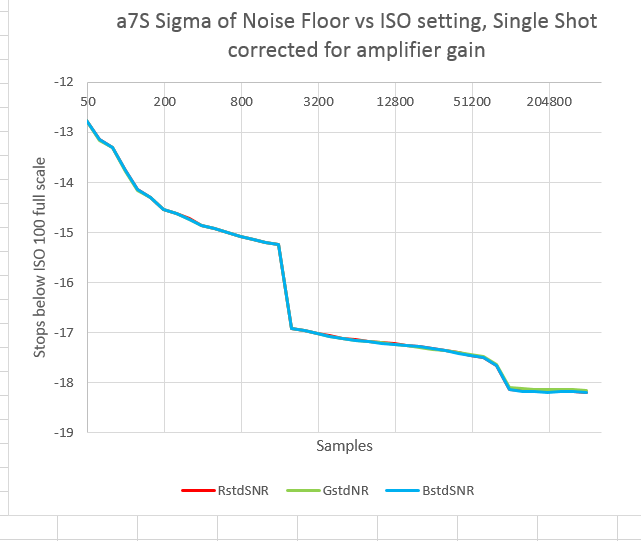

A few weeks back, I did a series of dark-field exposures with the Sony alpha 7S (a7S) at all available ISO settings. After some processing, I produced this graph:

There are two places in the curve where sudden — and unexpected, at least by me — drops occur as the ISO is increased. The first one occurs as the ISO 1600 to ISO 2000 transition. I think I know what that is: the place where the a7S switches from low conversion gain to high conversion gain as described in this Aptina white paper.

The second drop, the one that occurs above ISO 50K, I had no explanation for. However, there was a thread at DPR that proved enlightening. The thread was started by a person who’s handle is DSPotographer, and, not surprisingly, he (or she, for all I know; going with the odds, I’ll use “he” here.) appears to be, as we say in patent applications,  “skilled in the art” of digital signal processing.

DxOmark didn’t show the kinks. I sent DSPographer a set of my a7R dark-field files. He used a completely difference analysis protocol on them, and essentially reproduced my results. He wondered about the processing at high ISOs, and started analyzing the histograms and spectral distributions of the dark fields.

I produced the following graphs by modifying  Matlab code that DSPographer wrote and sent to me. Any defects are my responsibility, and most of the mathematical sophistication comes from him.

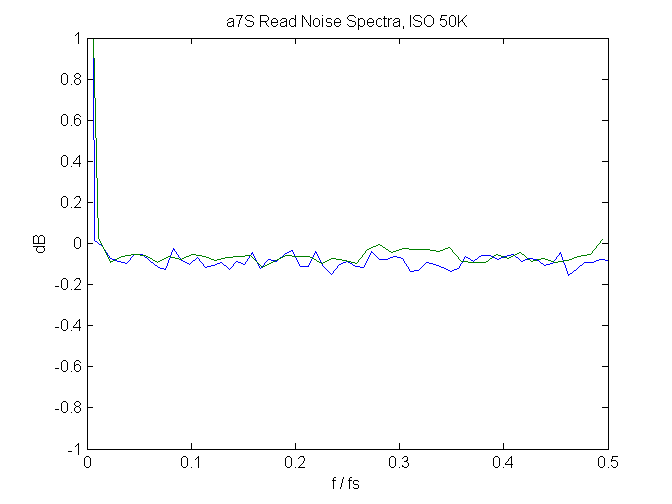

Here’s a look at the dark field noise spectrum of the a7S at ISO 50K:

This looks like you’d expect it to look: a big spike near dc that comes from amplifier heating and other low frequency effects, and flat otherwise.

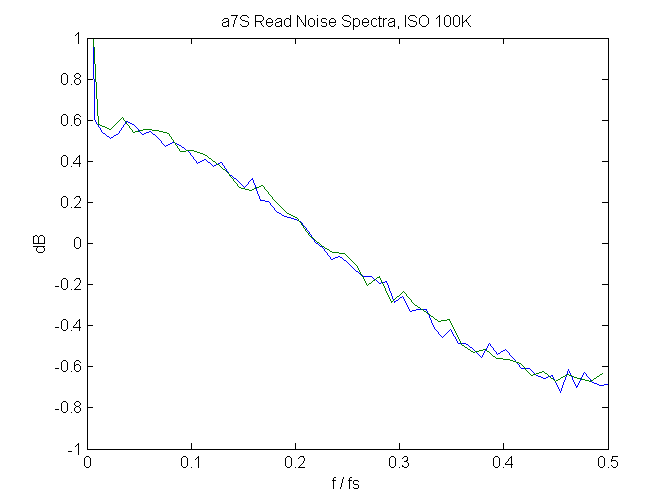

Now look at the ISO 100K plot:

Something is rolling off the high frequencies. But what?

Using parameters that DSPotographer and I worked out together, I took the ISO 50K dark frame and applied a 2×2 median filter with a large threshold to the data.

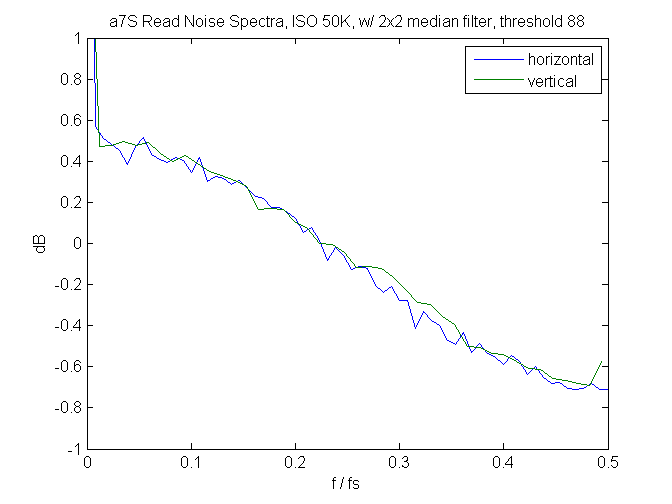

Here’s what I got:

The histograms

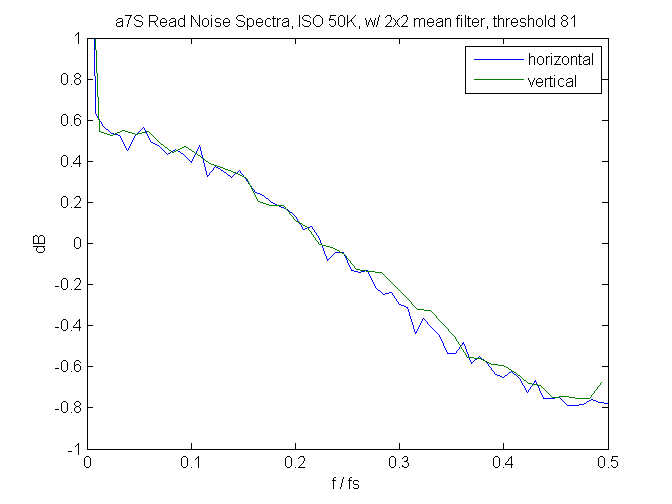

A 2×2 mean filter works pretty well, too:

DSPotographer analyzed the histograms and they make sense, too.

So, problem solved, right? Sony using some kind of thresholded spatial filter at ISOs above 50K, trading a7S resolution for noise. Probably so, but there’s something else that could be affecting this: Sony’s raw compression algorithm.

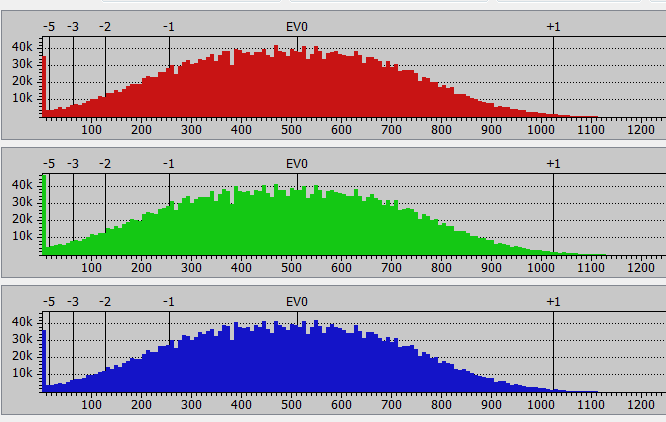

Here’s a histogram of the dark-field noise at ISO 400K:

The spread is low enough that the tone compression part of the Sony raw compression algorithm won’t have much effect, but it’s big enough that the delta modulation piece of the algorithm will be active. I don’t think that’s having much effect, especially since the thresholded mean or median algorithm will keep differences out of the more aggressive parts of the delta mod coding. But I mention it for completeness.
