In the previous post I reported on the odd bokeh at high shutter speeds of the Hasselblad 55V on the X2D. I repeated the test with the camera’s electronic shutter, making exposures of a LED flashlight about 25 feet away with the camera set to ISO 64, the lens wide open and focused to 0.45 meters. I used 1/200o second shutter speed and 14-bit precision for all the exposures in this post.

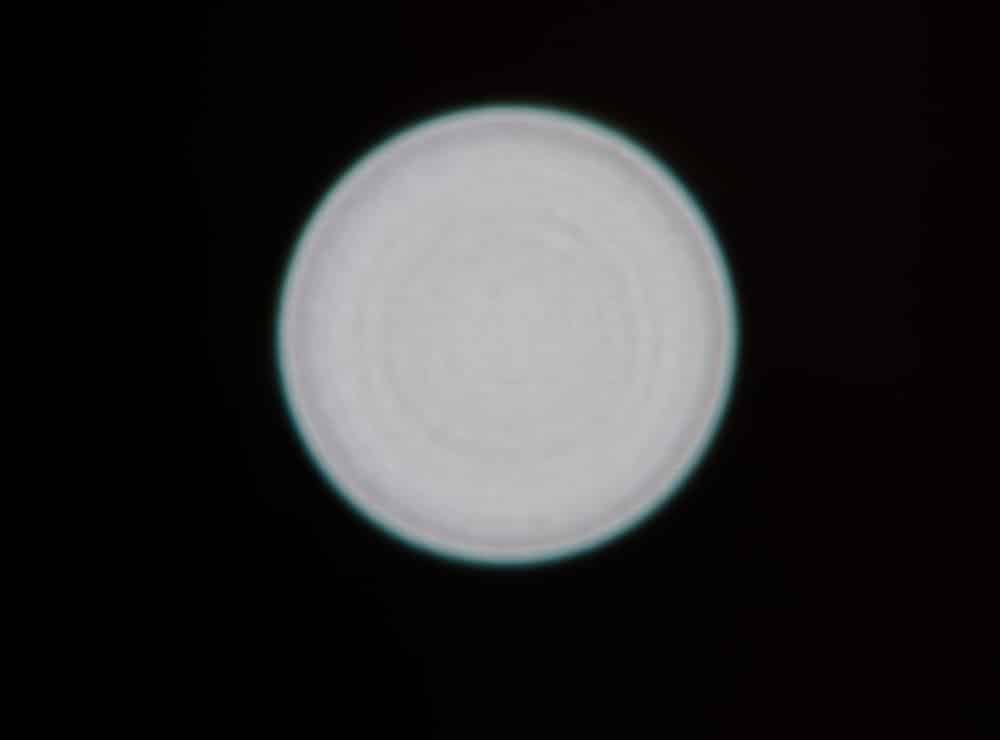

Here’s a blowup of a sample image with the flashlight positioned on the lens axis:
No sign of the strange bokeh.

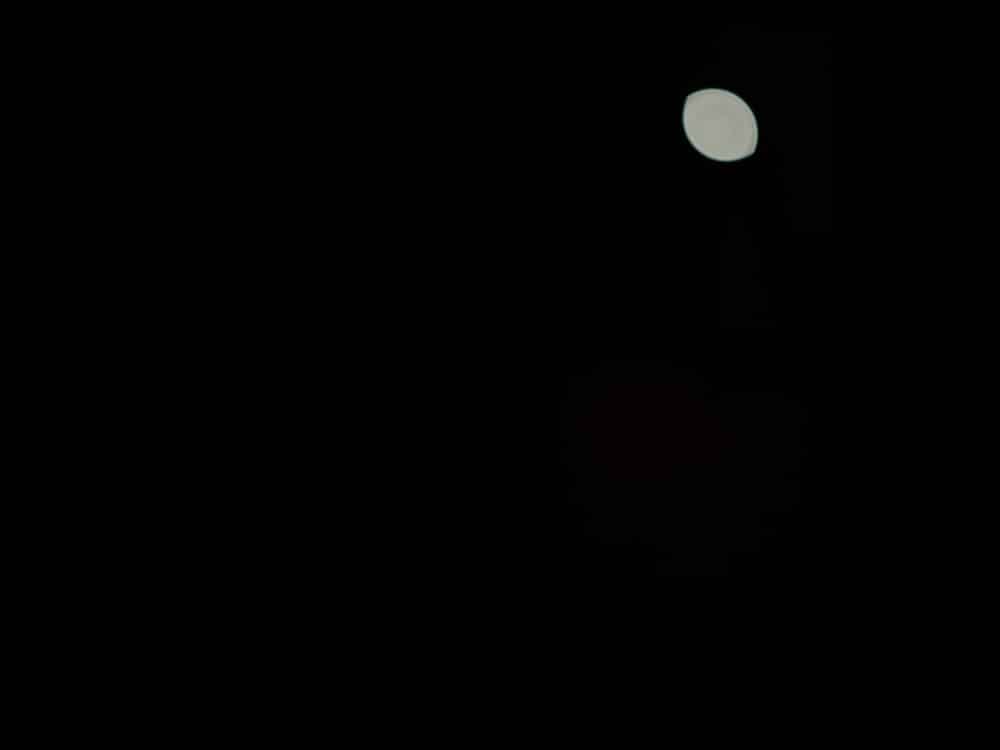

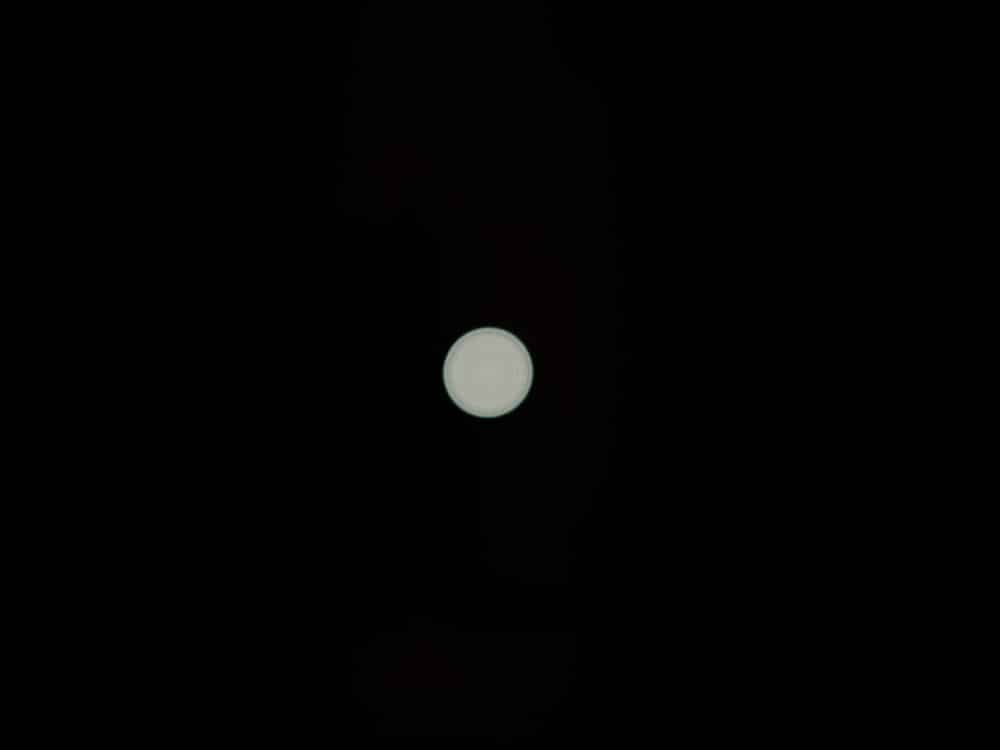

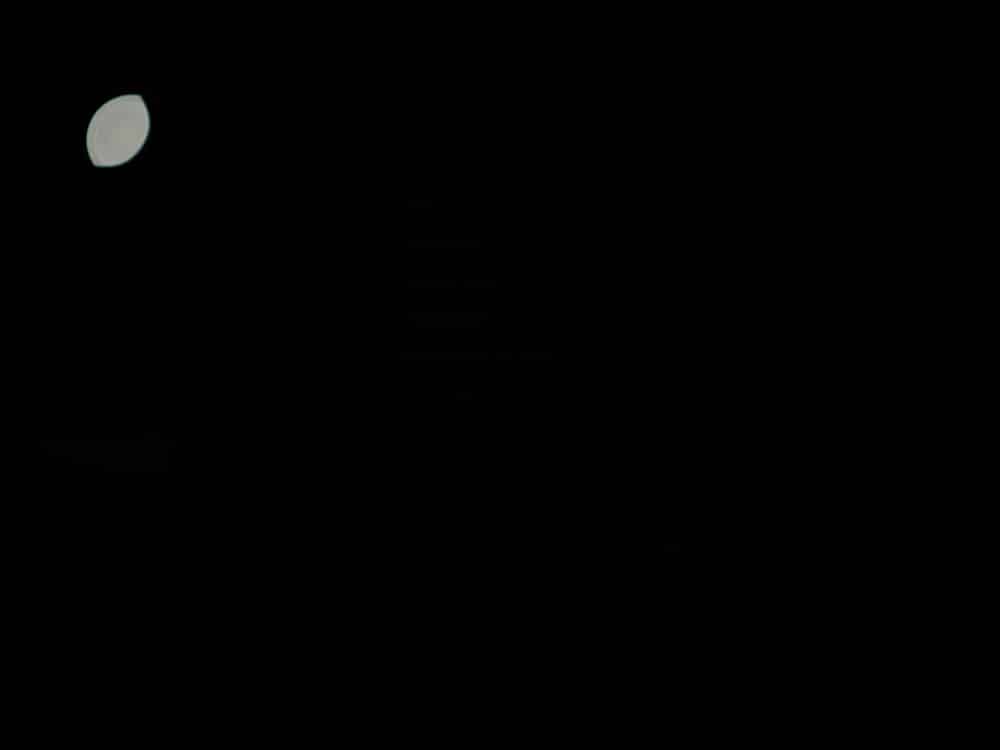

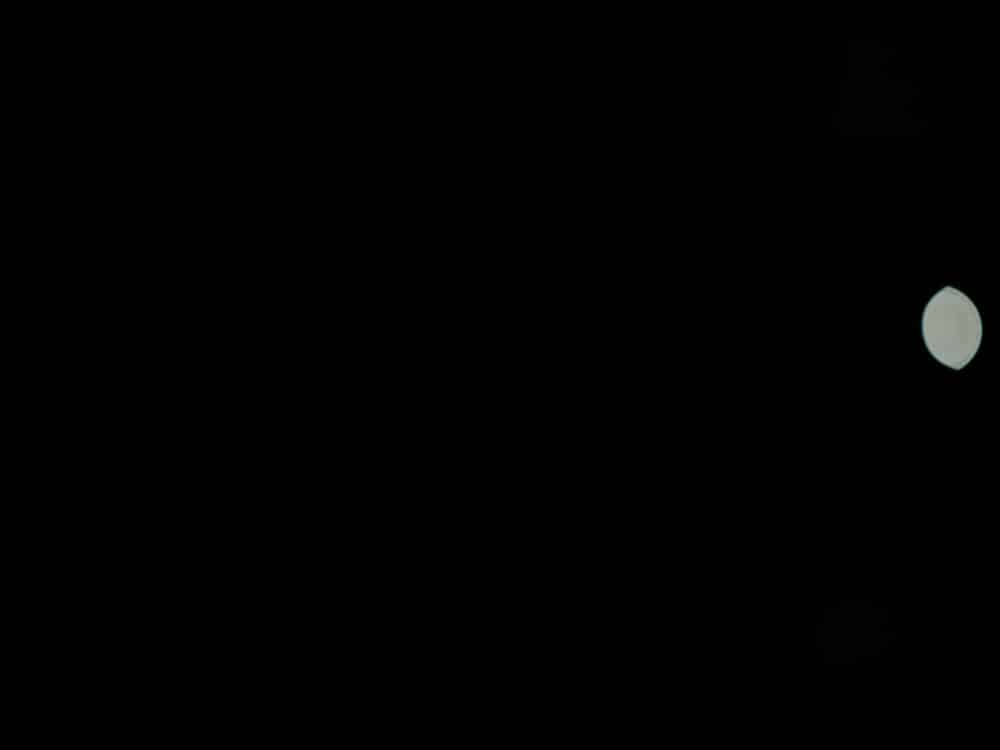

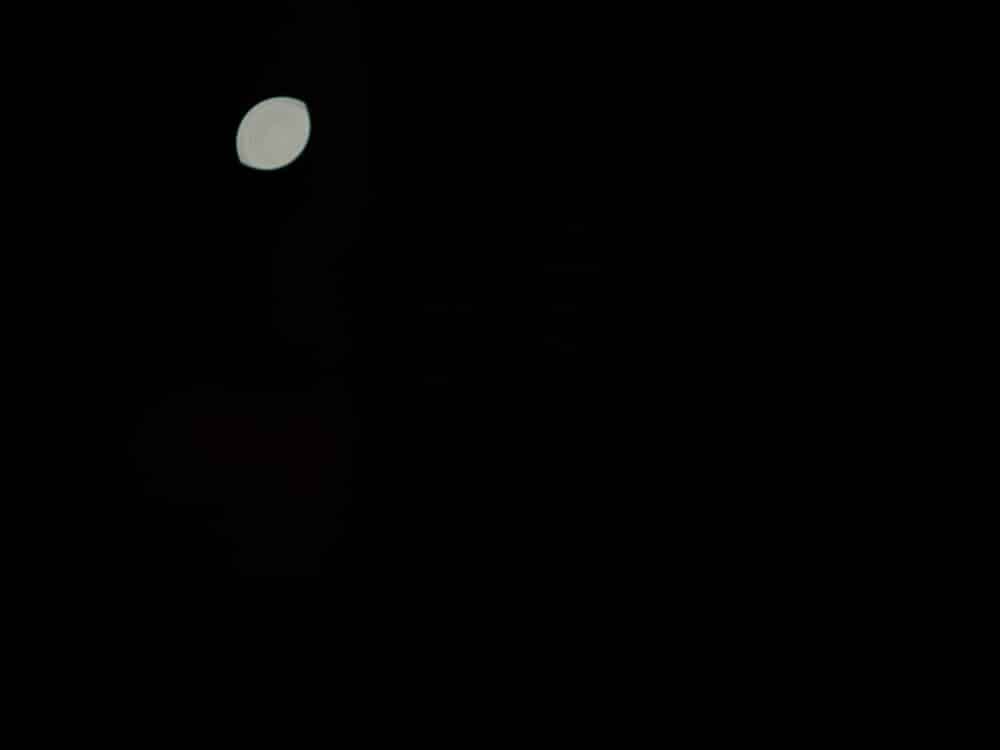

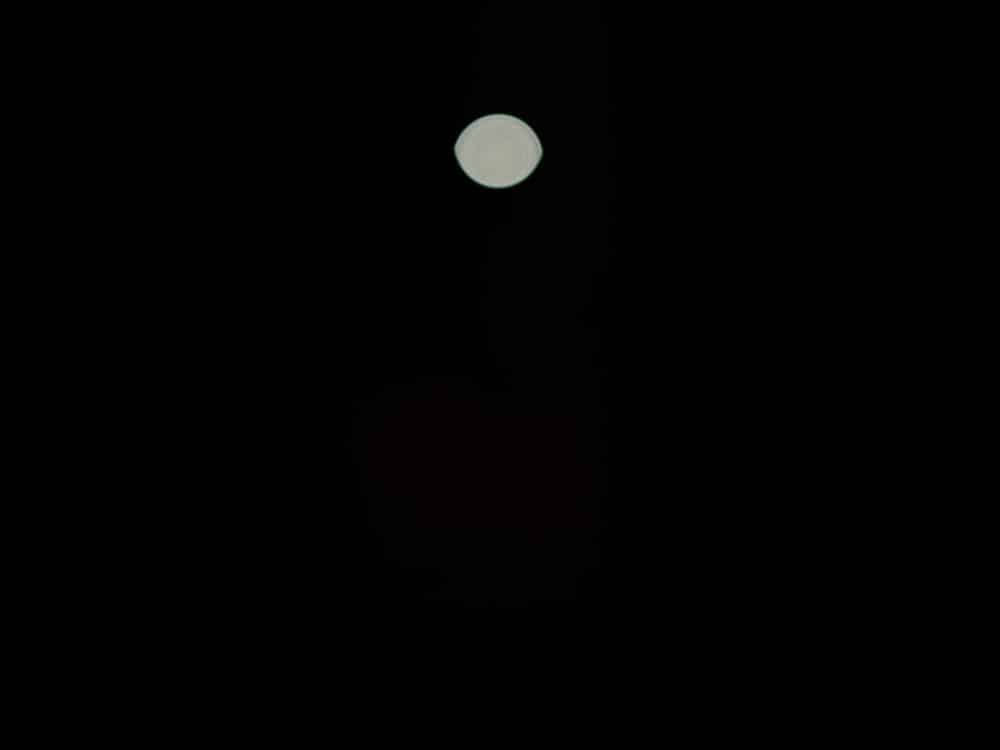

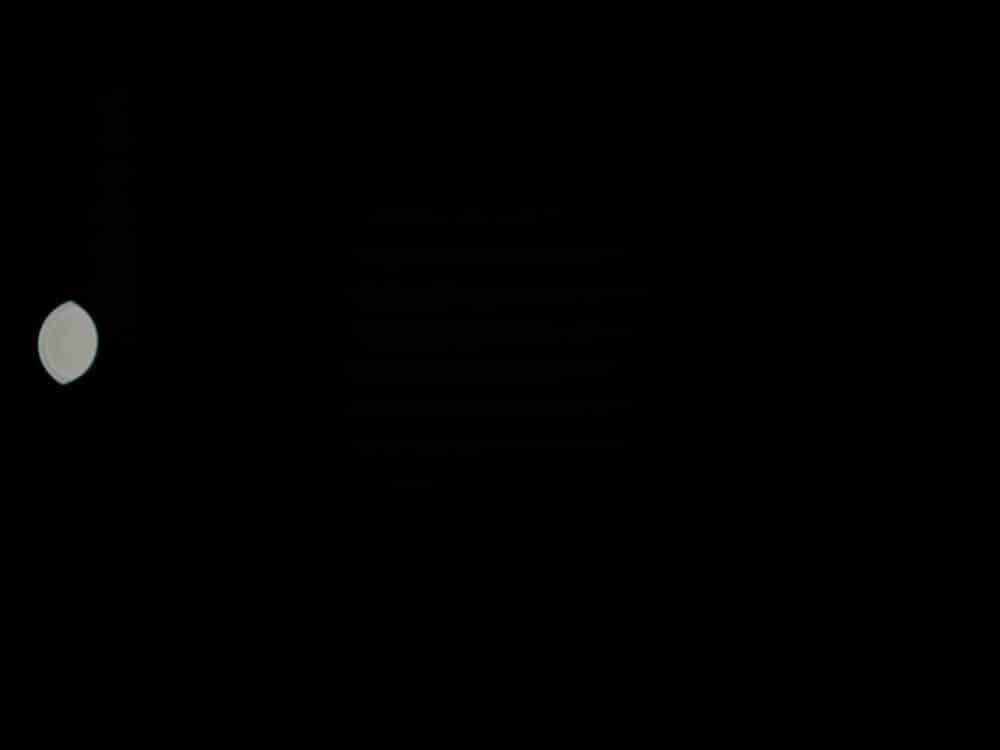

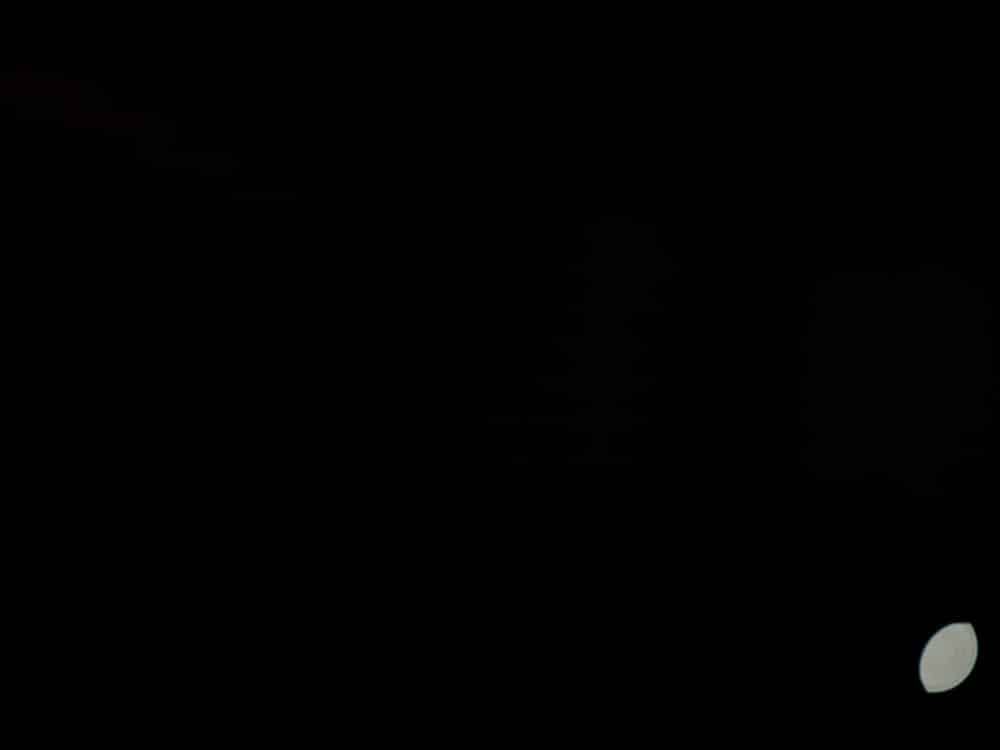

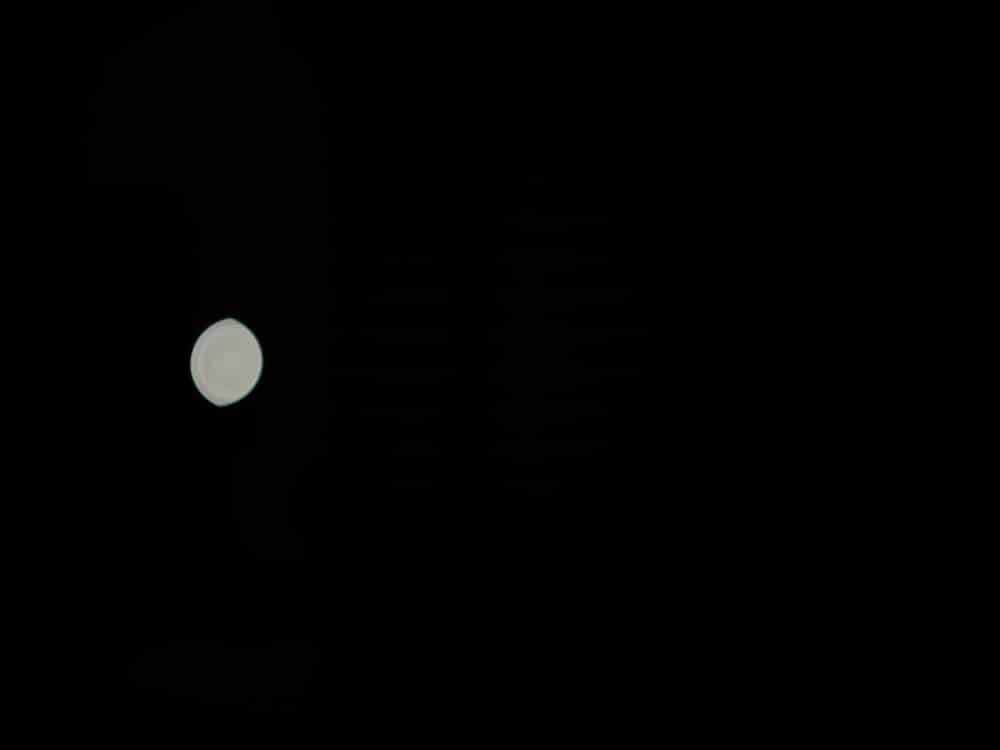

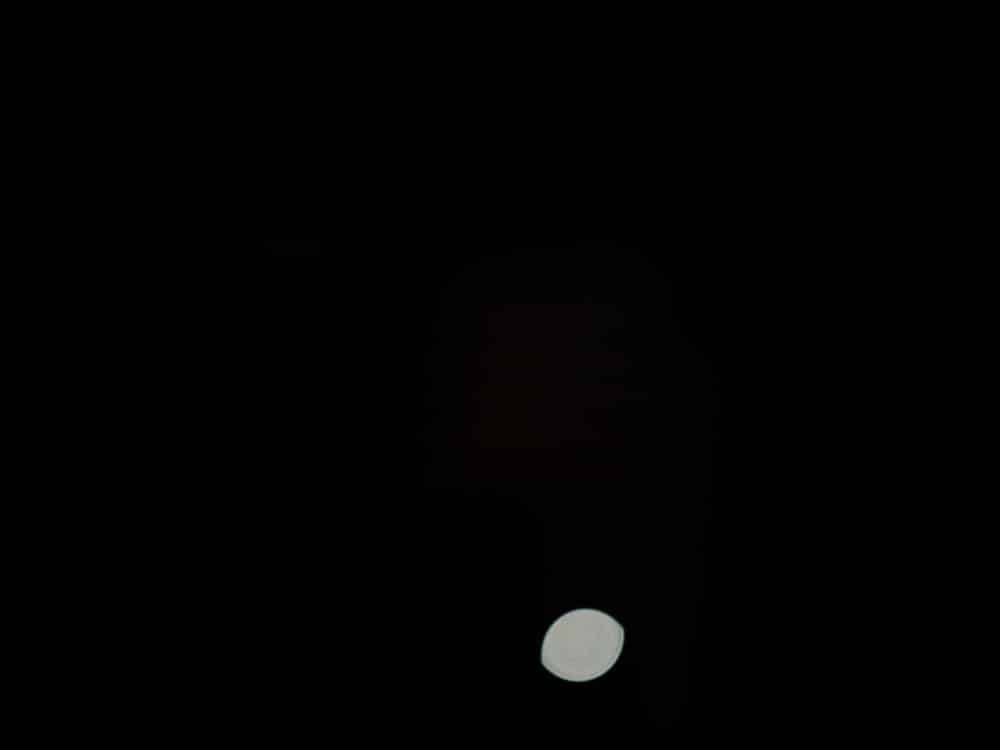

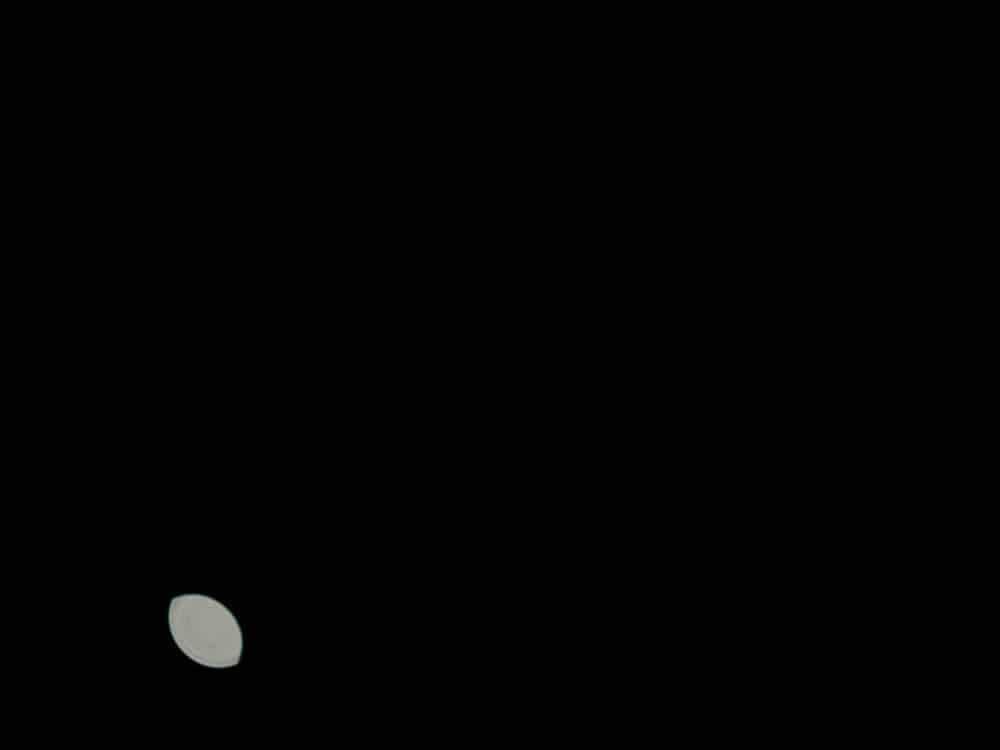

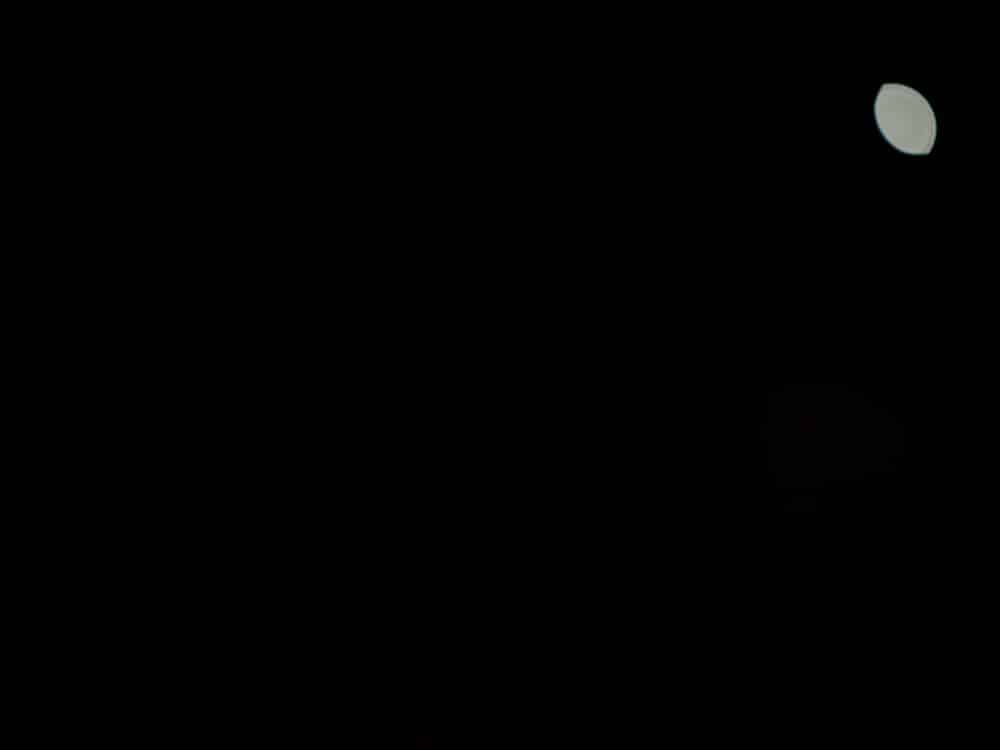

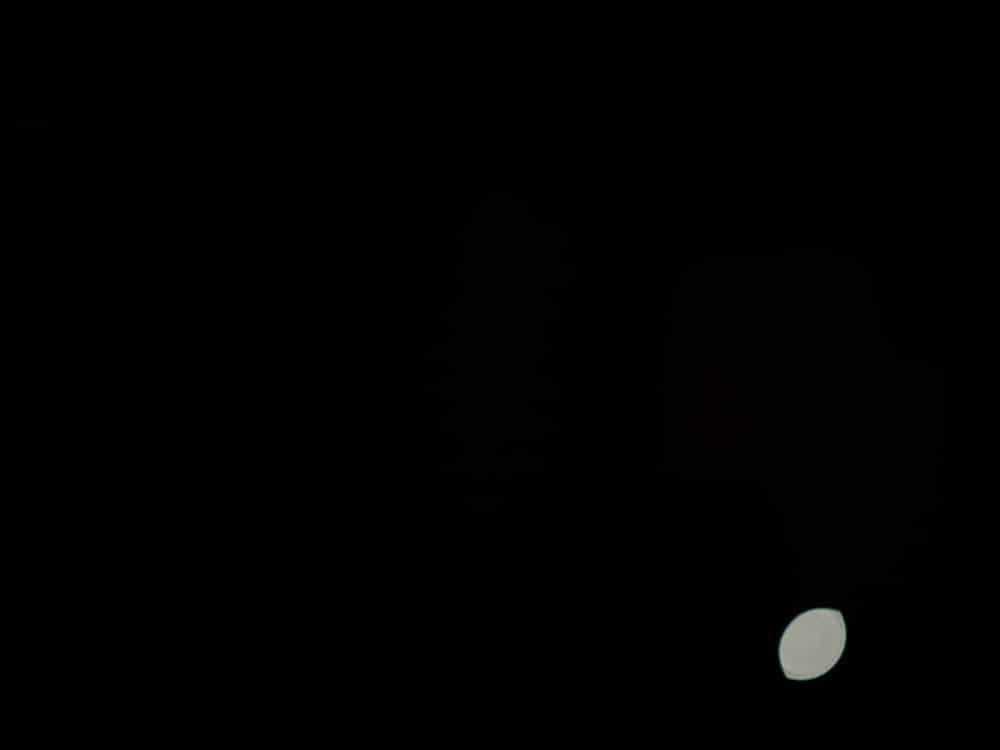

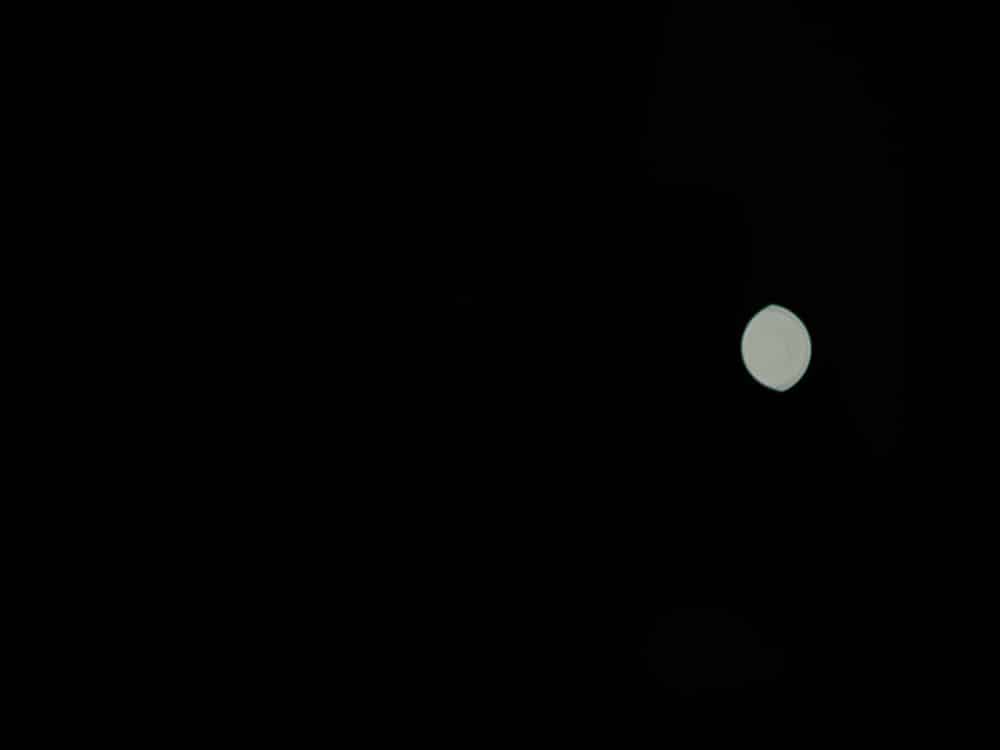

Now we’ll look at mechanical vignetting.
Compare those to the ones for the 38V and you’ll find a lot of similarities.

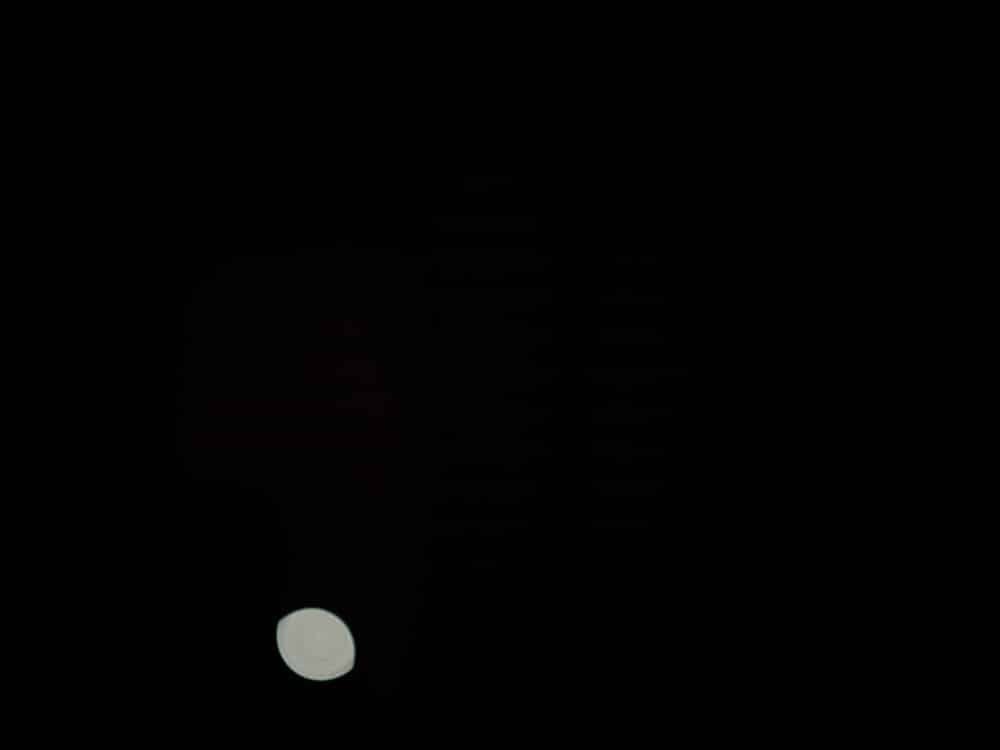

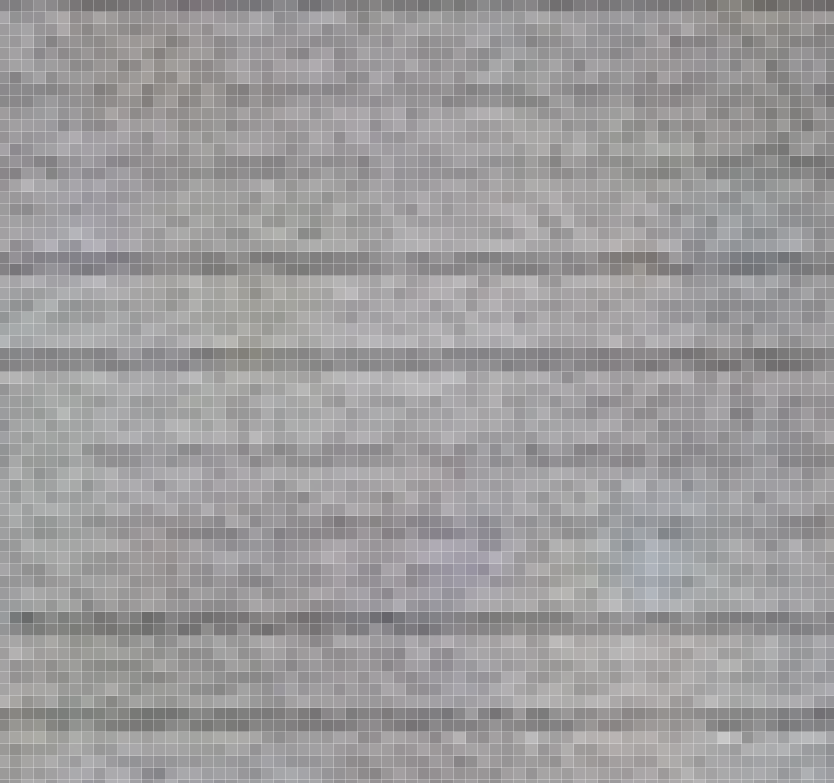

I did notice one analmoly. There are some banding on these images if you zoom in tight and increase the contrast:
The spacing is not uniform. I’m not sure what the source of the banding is, but I don’t think I can blame the lens. It might be something in the camera, or it could be modulation of the LEDs in the flashlight.
Jim,
You could have used a MAX (images) composite for the mechanical vignetting series, so it would just one image.
Regards
Mikhail
Indeed. I’ve done something similar in the past, but the presentation has confused some people.
