135 Telyt on M240, 135 APO-Sonnar on Sony a7

Looking for bargain camera/lens combinations that can produce great image quality is fun.  How about the Carl Zeiss 135mm f/2 APO-Sonnar ZF.2 on the a7 with the Novoflex adapter? Can it compare to the much more expensive (three times as much !) combination of the 135mm f/3.4 Leica APO-Telyt on the M240?

Here is the now-familiar scene (shown with the a7):

Mounting such a heavy lens on the diminutive a7 safely was a challenge. Here’s how I handled it:

I mounted the cameras to a Gitzo GT3541XLS tripod, with a Arca-Swiss ball head and a RRS L-plate on the M240. I focused both cameras wide open. I set the Zeiss 135 to f/2, and the shutter to 1/8000, made an exposure using the 2-second self-timer delay, stopped down the camera one stop and slowed the shutter one stop and made another, continuing until I got to f/16 and 1/125. Then I turned off live view (to eliminate shutter wind shock) and did the same thing with the Leica, omitting the f/2 and f/2.8 exposures because the APO-Telyt doesn’t open up that far.

I “developed” the images in Lightroom with default settings except for selecting daylight white balance. I exported them all to Photoshop as layers, labeled the layers by camera and f-stop, and made a crop with the centers aligned and one with the upper left corner aligned.

The Leica sensor is somewhat less sensitive than the Sony’s when set to the same ISO. I corrected for that in post this time, giving a 1/3 stop Exposure boost to the Leica images and a 1/3 stop Exposure pull to the Sony ones. The color balance of the two sensors, as interpreted by Lr, is also different, with the a7 appearing greener. I left that alone this time.

I enlarged the crops that you’re seeing here by a factor of two using nearest neighbor, so that each pixel in the original images becomes a square of four identical pixels. I did that so that the pixel structure would survive the JPEG DCT compression that I must use for the web.

There is pronounced light falloff towards the corners with the Zeiss lens wide open. At f/2.8, there’s still noticeable darkening there.

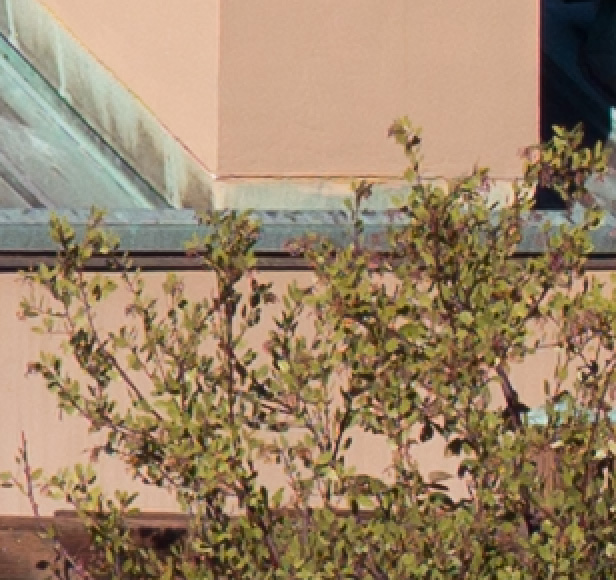

However, even wide open, the center is crisp and nicely modeled:

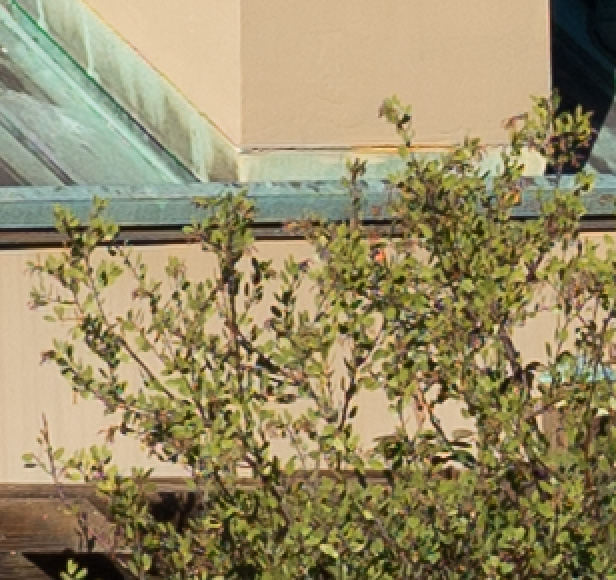

f/4 is about the same with the Zeiss:

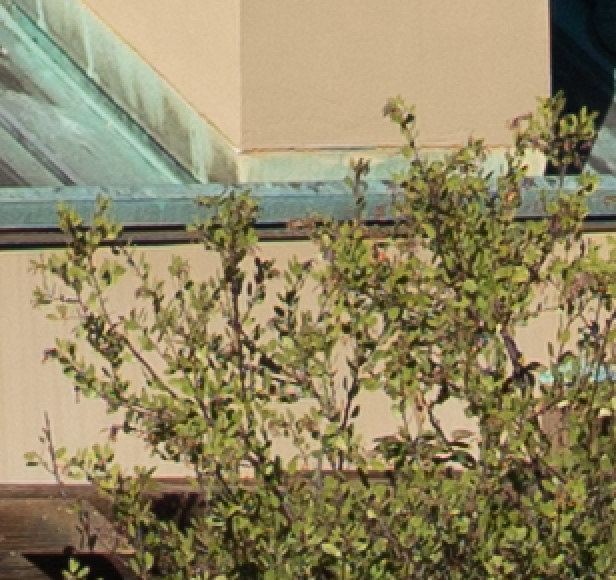

But that stop with the Leica lens, while almost as sharp, doesn’t have the close to the same micro-contrast:

f/5.6 through f/11 is about the same on the Zeiss lens, indicating that it’s got a lot more resolving power than the a7’s sensor. f/16 is getting a little soft.

The Leica crisps up nicely at f/5.6, but still doesn’t have the snap that the Zeiss lens delivers:

F/8 is about the same with the Leica, f/11 is softer, and f/16 fuzzier yet. It’s interesting that f/16 with the Zeiss lens is a bit sharper than f/16 with the Leica lens, although diffraction is affecting both.

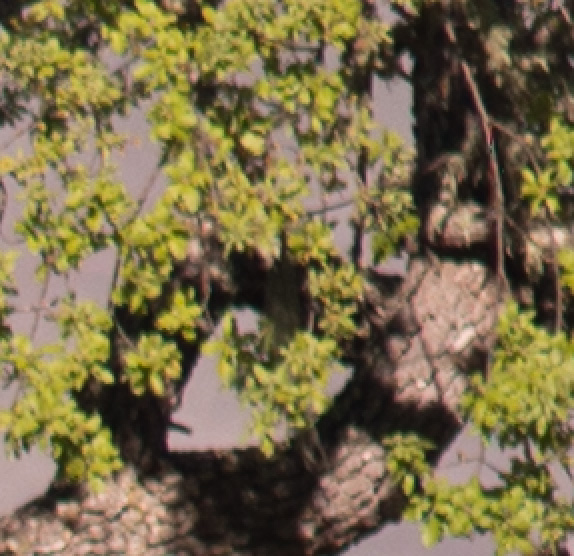

When the Zeiss is used at f/2, the upper left corner is dark from the falloff, but still commendably sharp:

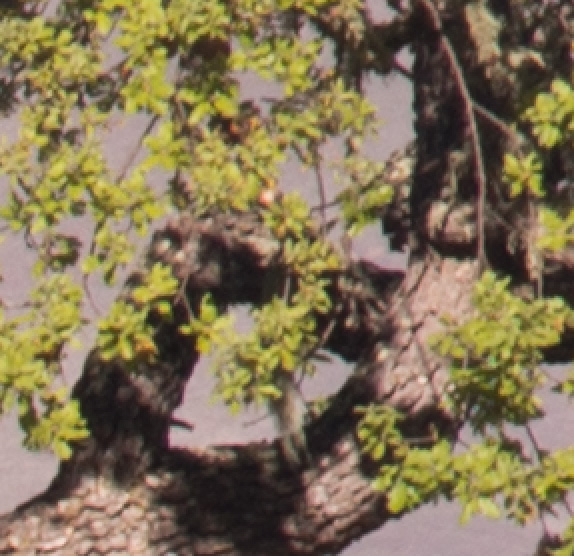

At f/4 the Zeiss has brightened up considerably, and maybe picked up a little sharpness:

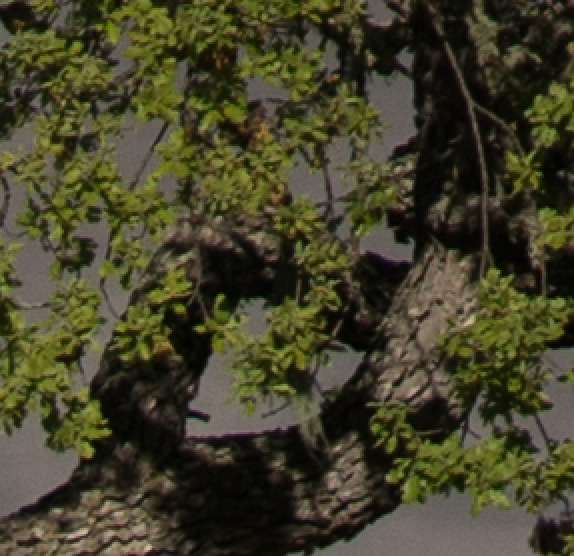

At f/4 the Leica lens is soft by comparison, but it’s still sharp enough to show a little false color aliasing in one of the branches:

At f/5.6 the Leica is crisping up:

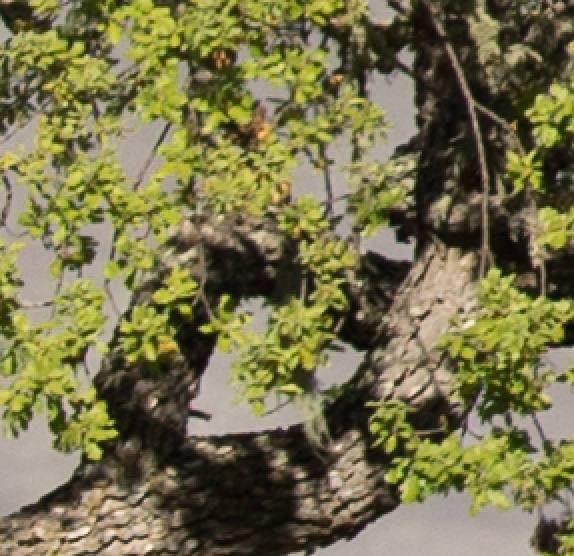

But the Zeiss still has more micro contrast:

The Zeiss lens continues to outperform the Leica one at f/8, and they start to loose punch a bit at f/11, but at f/16, the Sonnar:

is still doing better than the APO-Telyt:

The Zeiss APO Sonnar costs slight more than half the APO-Telyt tariff, and it is a better performer. It’s actually an amazing performer, and it’s going to take a 50 or 60 megapixel full frame camera to find out how good it really is. However, it is big and heavy. The svelte 135mm Leica lens is a better fit for the a7 if you’re going to be hand holding most of the time.
