Nikon D5 and Z7 shadow noise under extreme conditions

January 10, 2022 JimK Leave a Comment

If you look at Bill Claff’s photographic dynamic range numbers, the D5 does better than the Z7 at extreme nosebleed ISO settings. There are some folks saying that’s not the case in the real world.

I called my bookcase into service:

Test protocol:

  • RRS legs, C1 head
  • Sigma 35/1.4 Art lens, directly attached to D5 and attached to Z7 with FTZ
  • ETTR exposure f/4 at 1/40 second at ISO 12800 set manually
  • ETTR exposure and ETTR – x stops, with x running from 1 to 5
  • AF-S
  • Developed in LrC, current version
  • Default settings except for the following
  • Exposure compensation to correct underexposed images to ETTR brightness
  • Sharpening turned off
  • Noise reduction turned off

Here are some crops with the same field of view. The Z7 crop is magnified to about 200%.

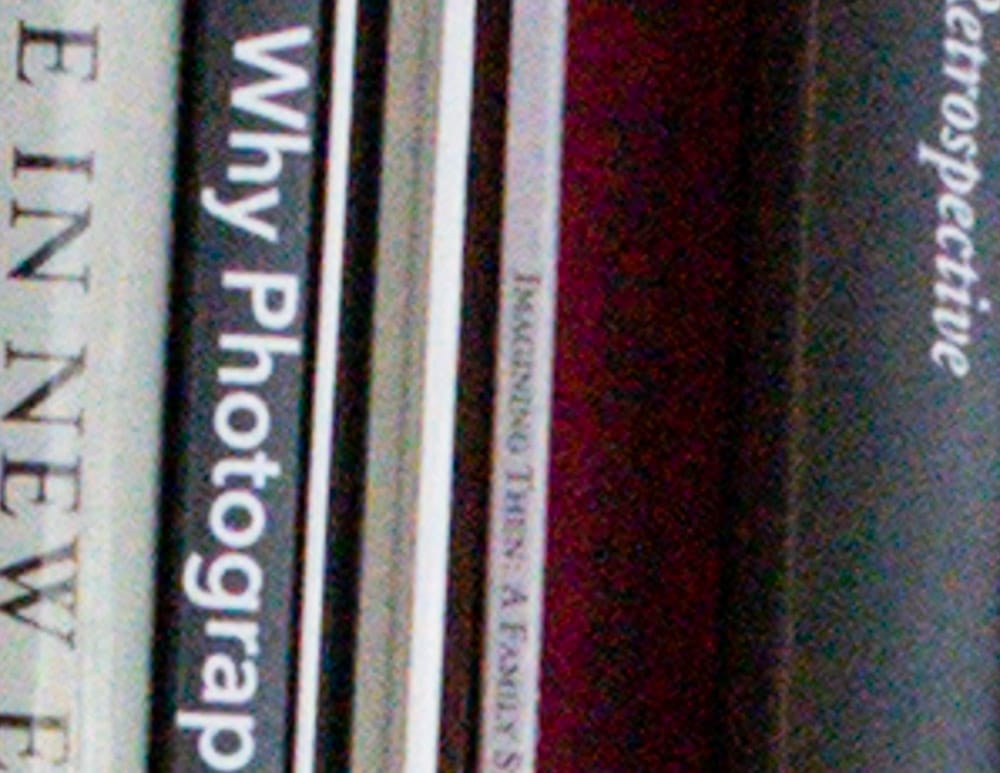

D5, ISO 12800, ETTR

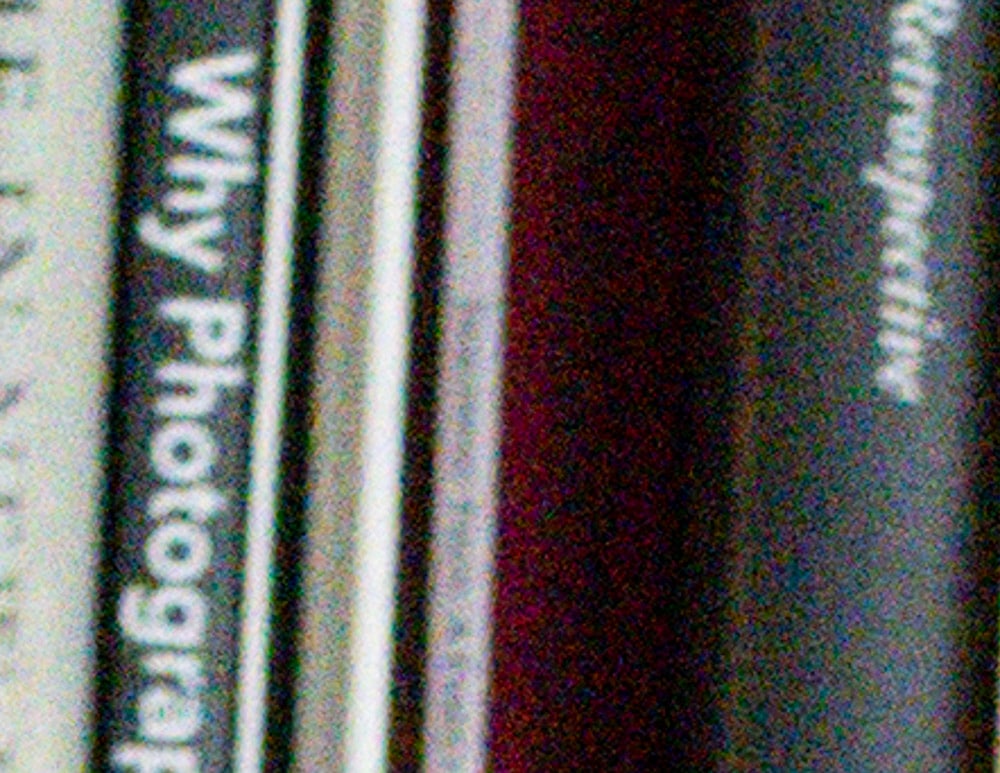

Z7, ISO 12800, ETTR

In the dim light, the Z7 couldn’t focus as well. Strangely, the Z7 got better at focusing as the exposure fell. Just look at the smooth areas to interpret the noise.

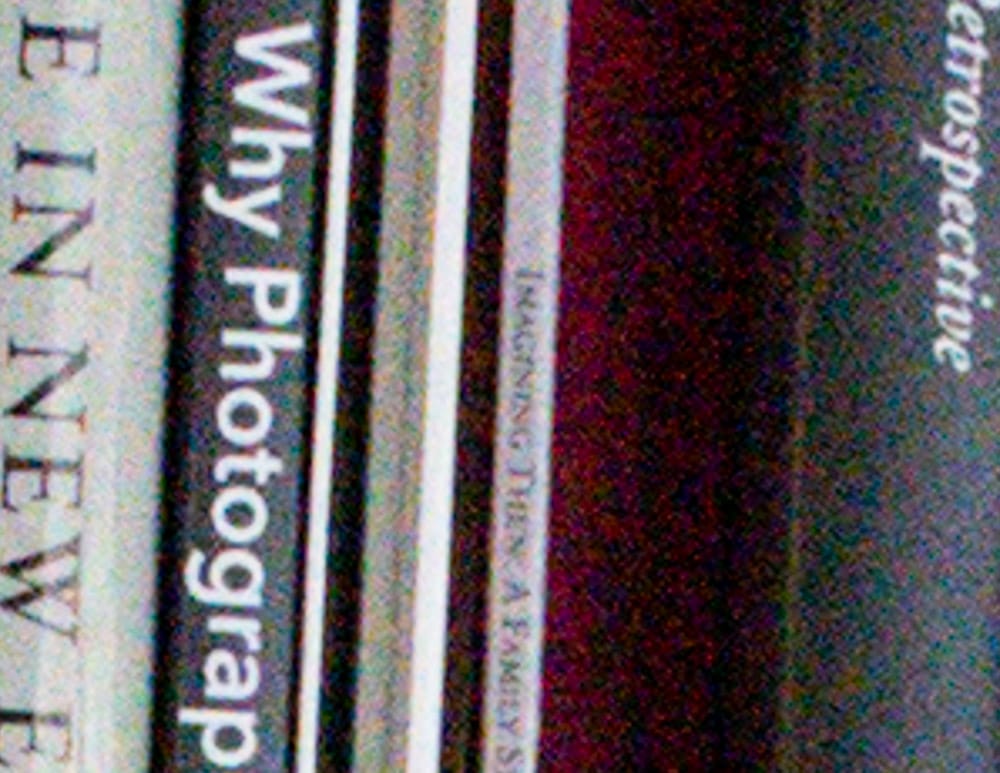

D5, ISO 12800, ETTR-1

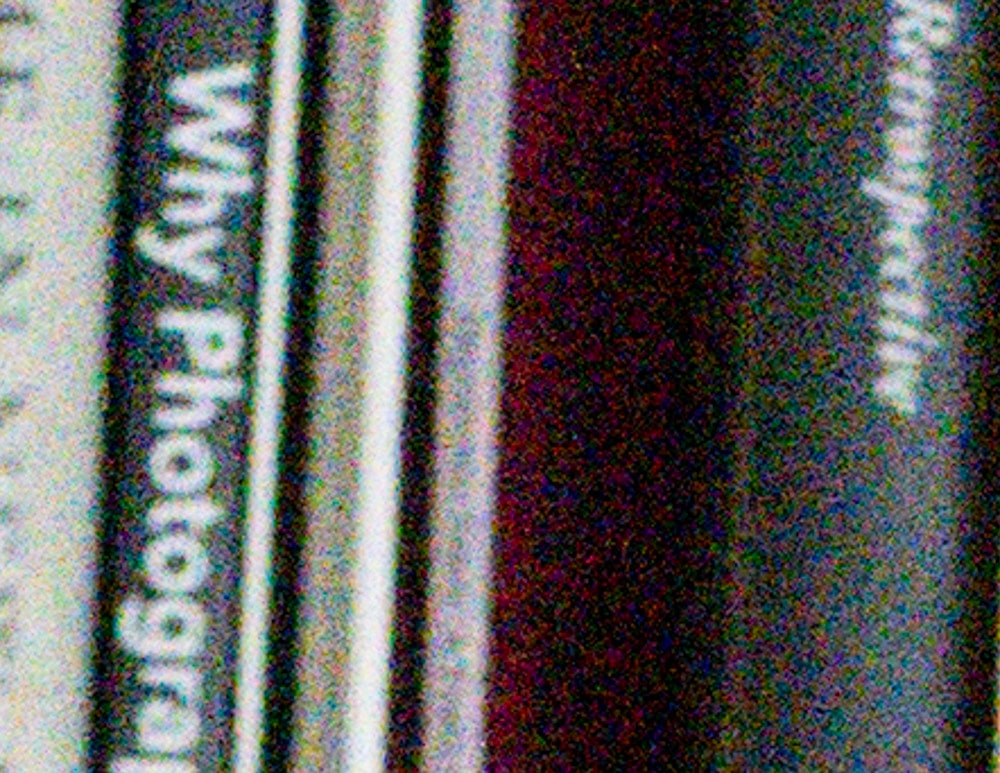

Z7, ISO 12800, ETTR -1

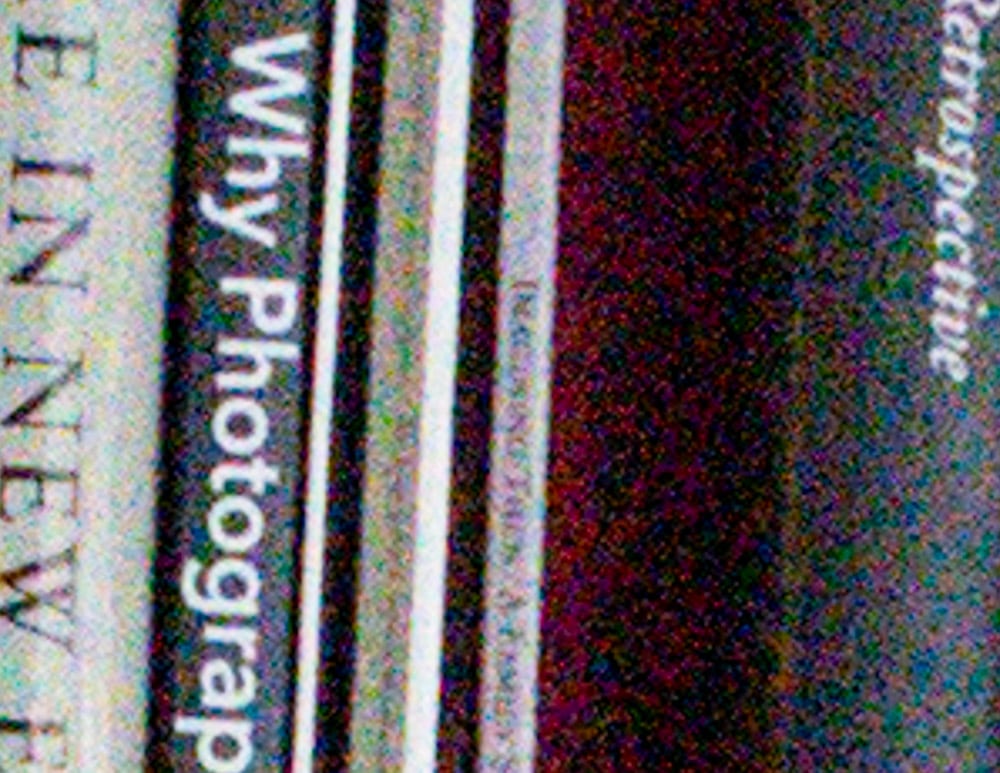

D5, ISO 12800, ETTR-2

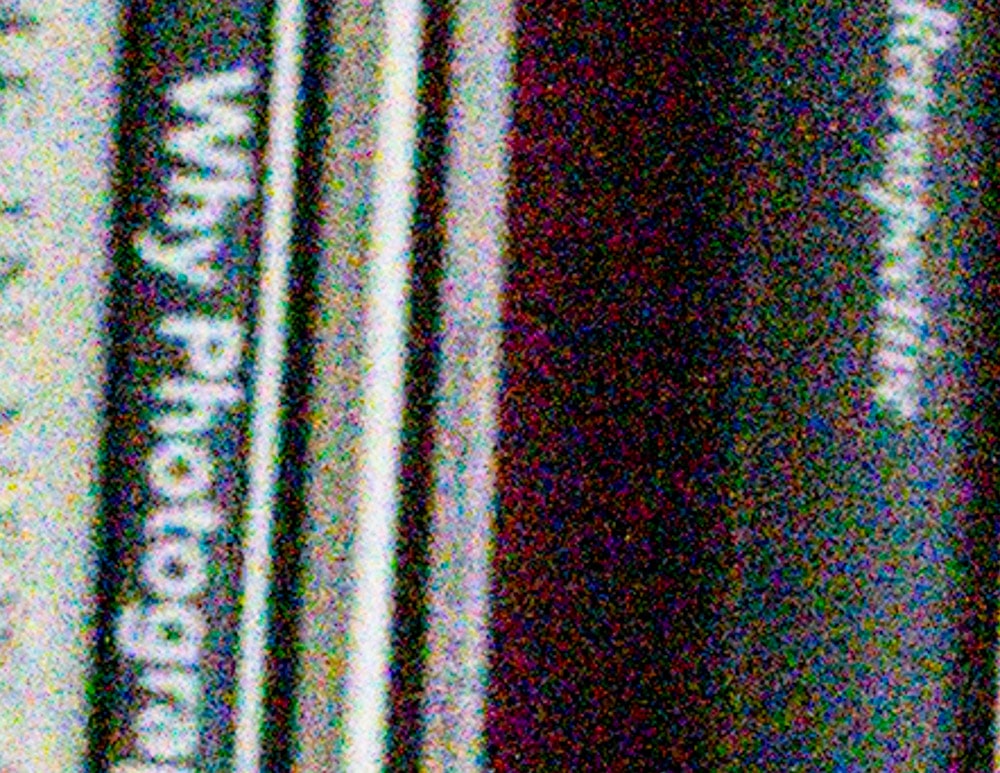

Z7, ISO 12800, ETTR-2

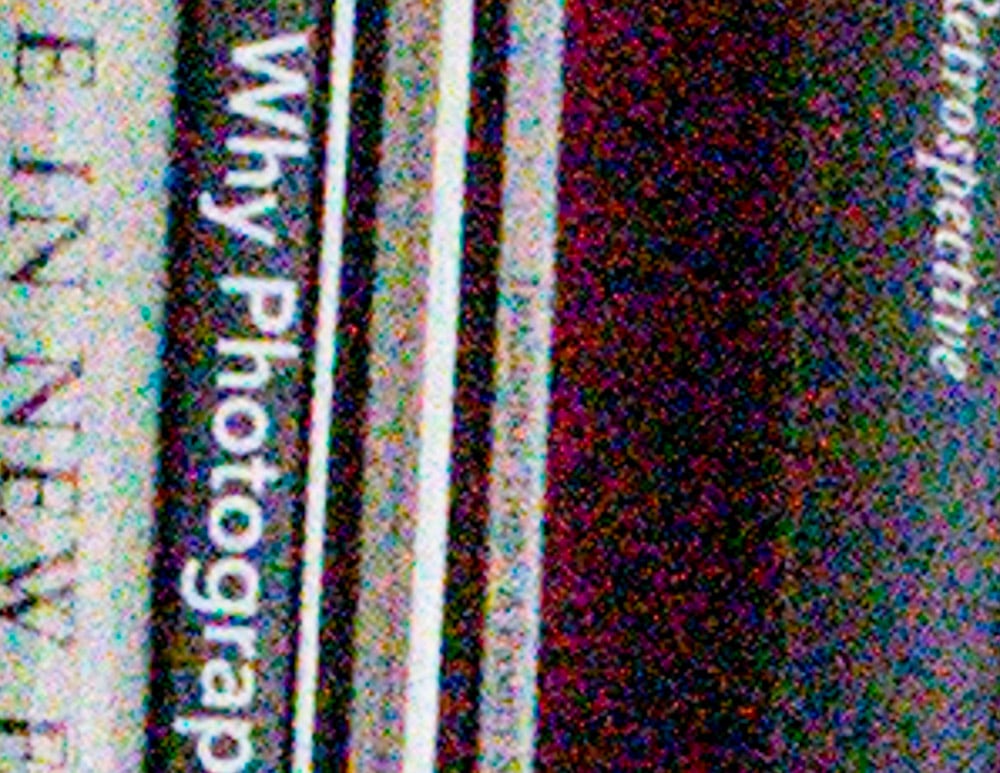

D5, ISO 12800, ETTR-3

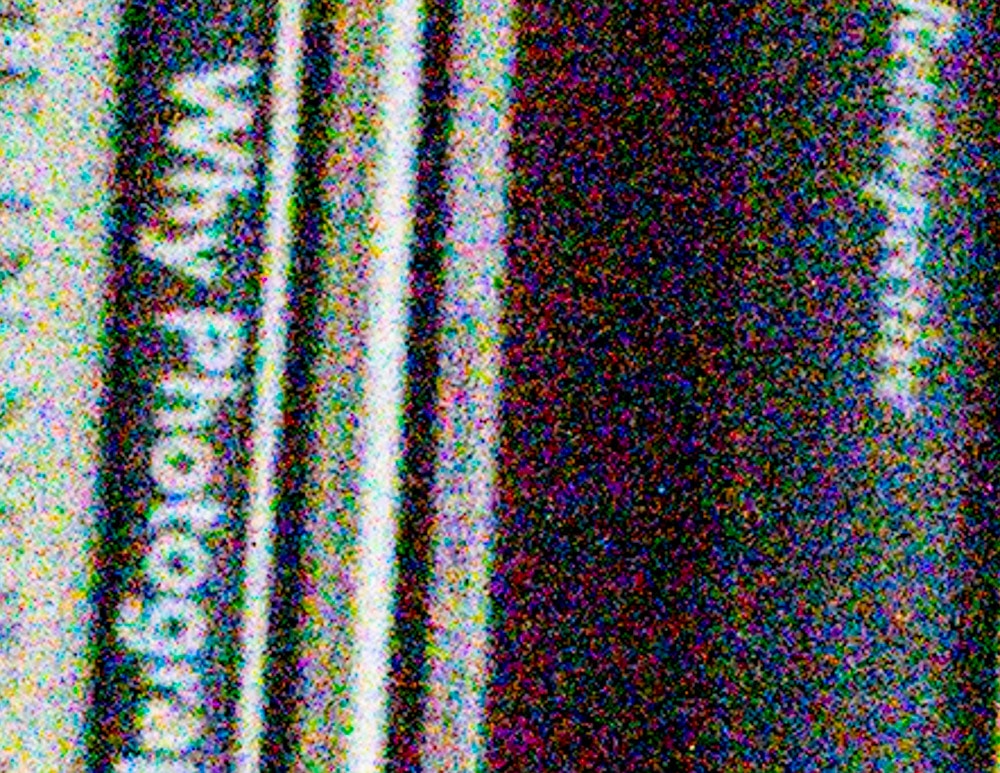

Z7, ISO 12800, ETTR-3

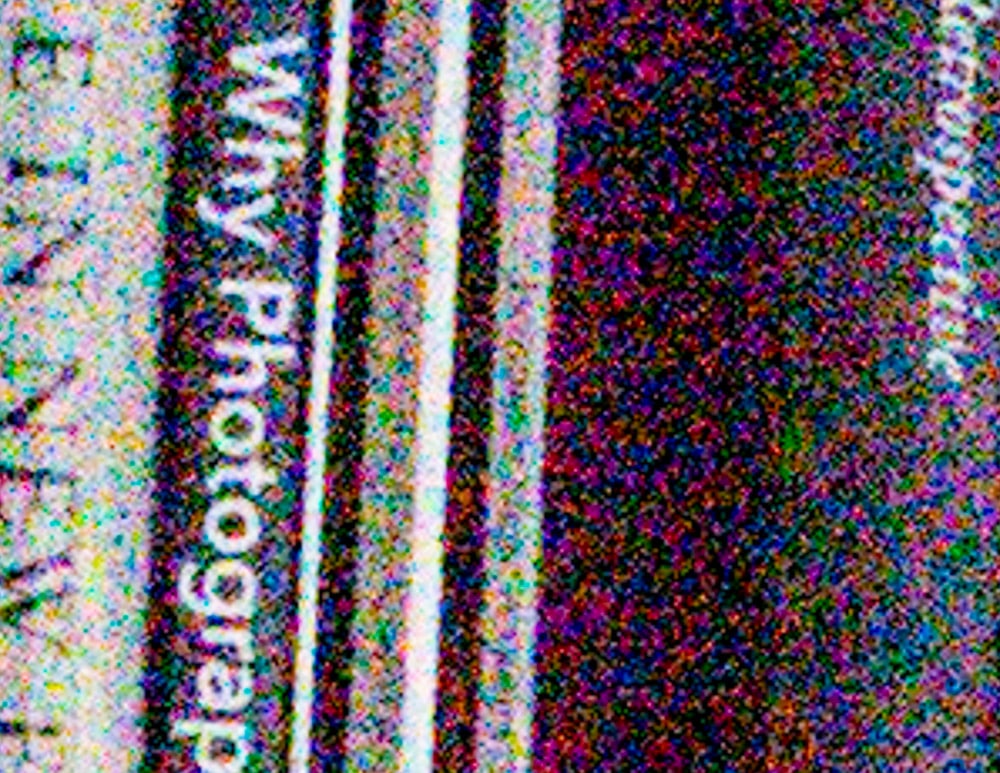

D5, ISO 12800, ETTR-4

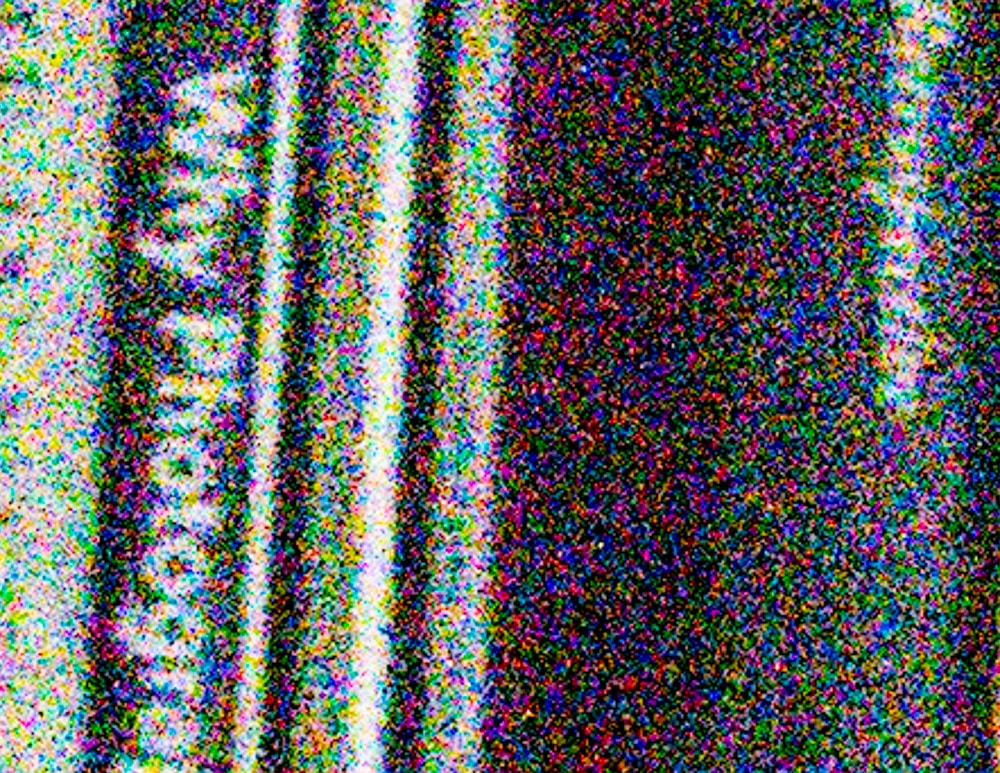

Z7, ISO 12800, ETTR-4

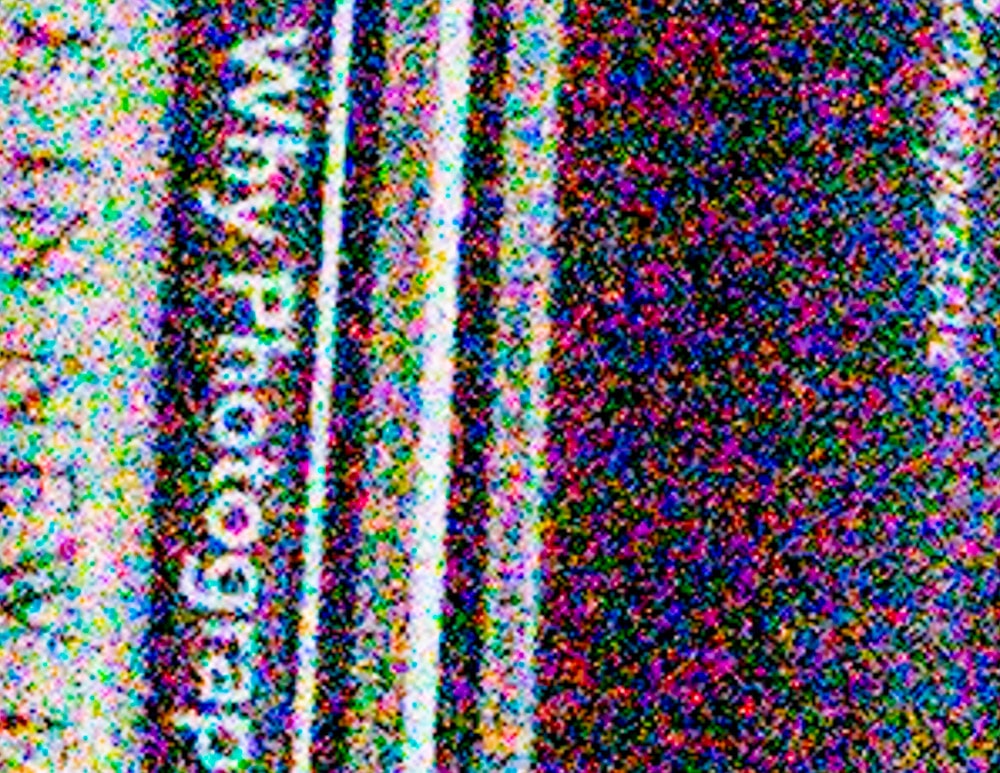

D5, ISO 12800, ETTR-5

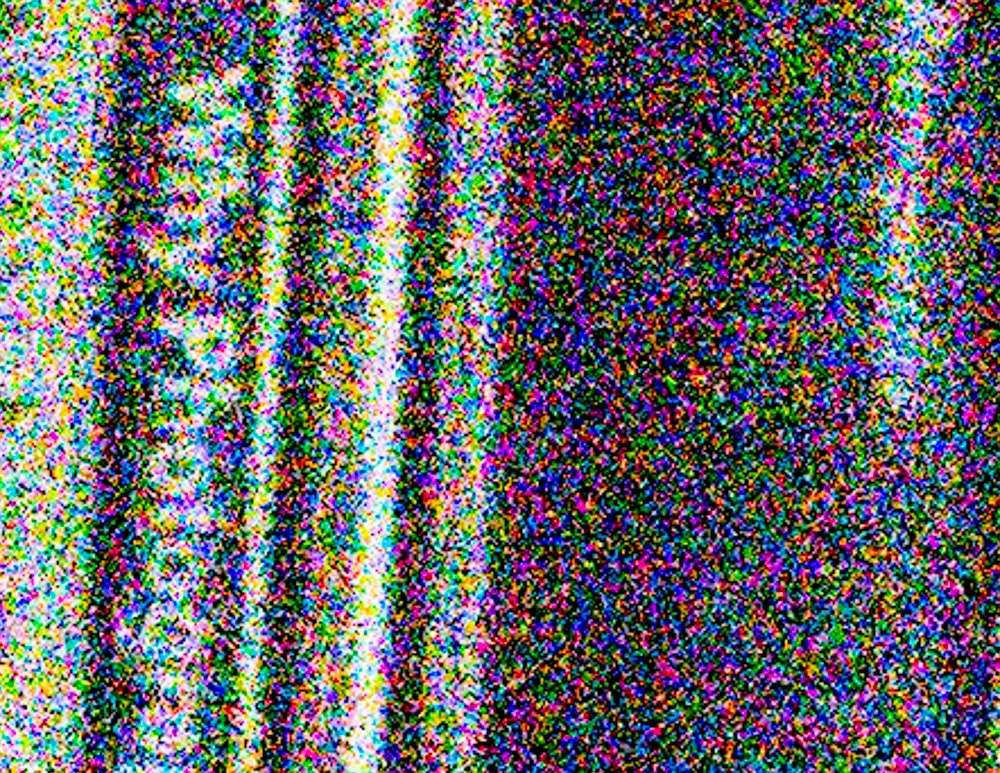

Z7, ISO 12800, ETTR-5

The noise pattern is finer with the Z7, so if you back up further you should see less noise, but I think this simple test reinforces Bill Claff’s results.

But what if you turn on noise reduction? Stay tuned.
