Fuji 45-100/4 vs 63/2.8, Siemens star

February 27, 2020 JimK 1 Comment

I’ve tested the Fujifilm 45-100 mm f/4 against two other Fuji GFX zooms, the 32-64/4 and the 100-200/5.6. In this post, I’ll be comparing the lens to the Fuji 63/2.8 at f/4, f/5.6 and f/8. I’ll be looking at center and corner sharpness using a 22-inch-diameter low-contrast Siemens star target that I printed for this test.

The scene, at f/4 with the 45-100:

Fuji 45-100/4 at 63mm, center, f/4

Target distance was 14 meters.

Test conditions:

  • The heaviest RRS legs
  • Arca Swiss C1 head
  • ISO 100
  • Electronic shutter 1/10 at f/4, 1/5 at f/5.6, and 1/2.5 at f/8
  • 2-second self-timer
  • AF-S, medium spot size
  • 3 sets of shots at each test condition
  • Developed in Lightroom
  • Picked best shot of each test condition
  • Sharpening amount 20 radius 1, detail 0 (much less sharpening than the default)
  • Adobe Color profile
  • White balanced to grey background

We’ll look at some tight crops at about 130% magnification.

Fuji 45-100/4 at 63mm, center, f/4

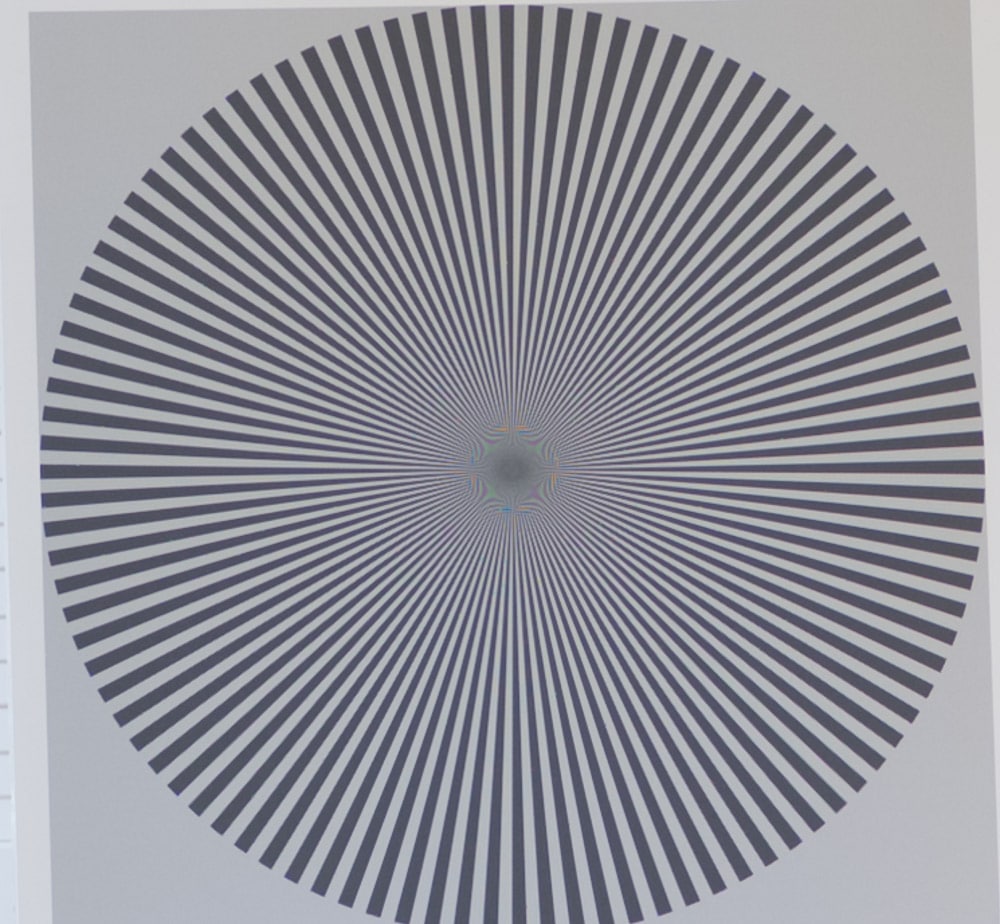

Fuji 63/2.8, center, f/4

Gosh, the zoom is sharp at 63 mm! The sensor is the limiting factor here.

Fuji 45-100/4 at 63mm, center, f/5.6



Fuji 63/2.8, center, f/5.6

The prime is a tiny bit sharper.

Fuji 45-100/4 at 63mm, center, f/8

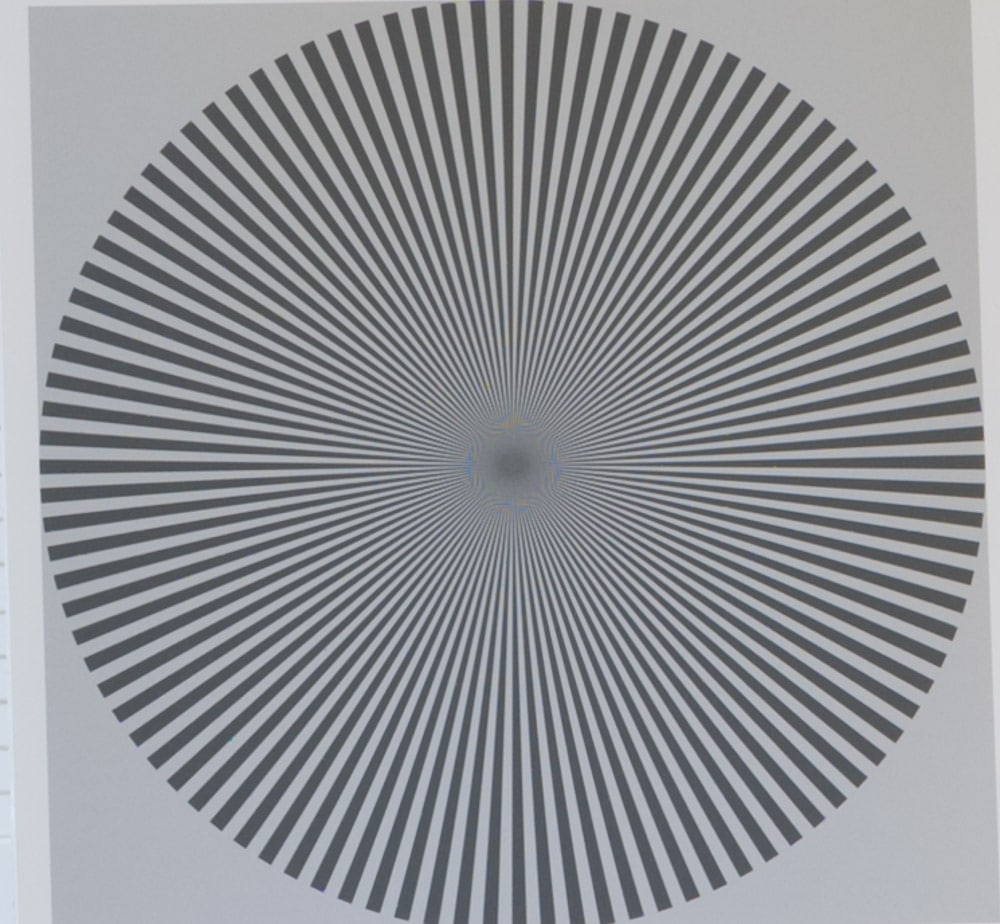

Fuji 63/28, center, f/8

The prime is a tiny bit sharper again.

In the upper-right corner:

Fuji 45-100/4 at 63mm, corner, f/4

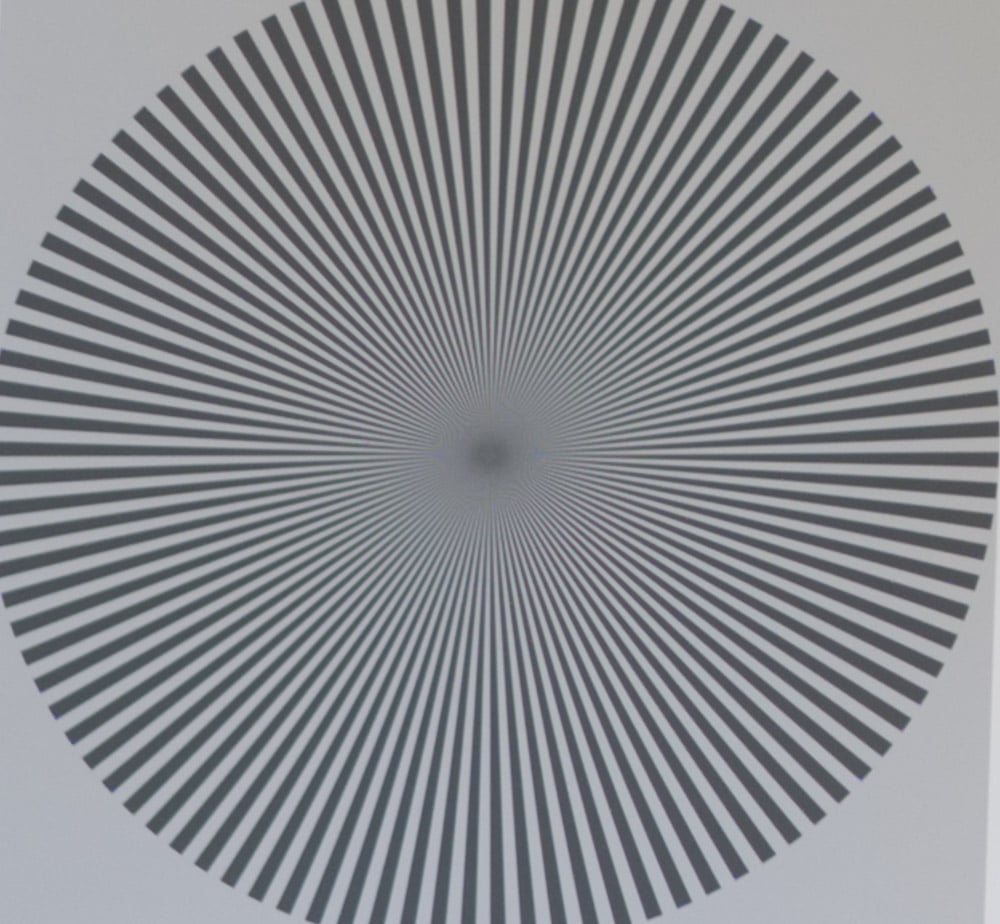

Fuji 63/2.8, corner, f/4

Look at that! The zoom is sharper.

Fuji 45-100/4 at 63mm, corner, f/5.6



Fuji 63/2.8, center, f/5.6

Now the  prime is sharper.

Fuji 45-100/4 at 63mm, corner, f/8

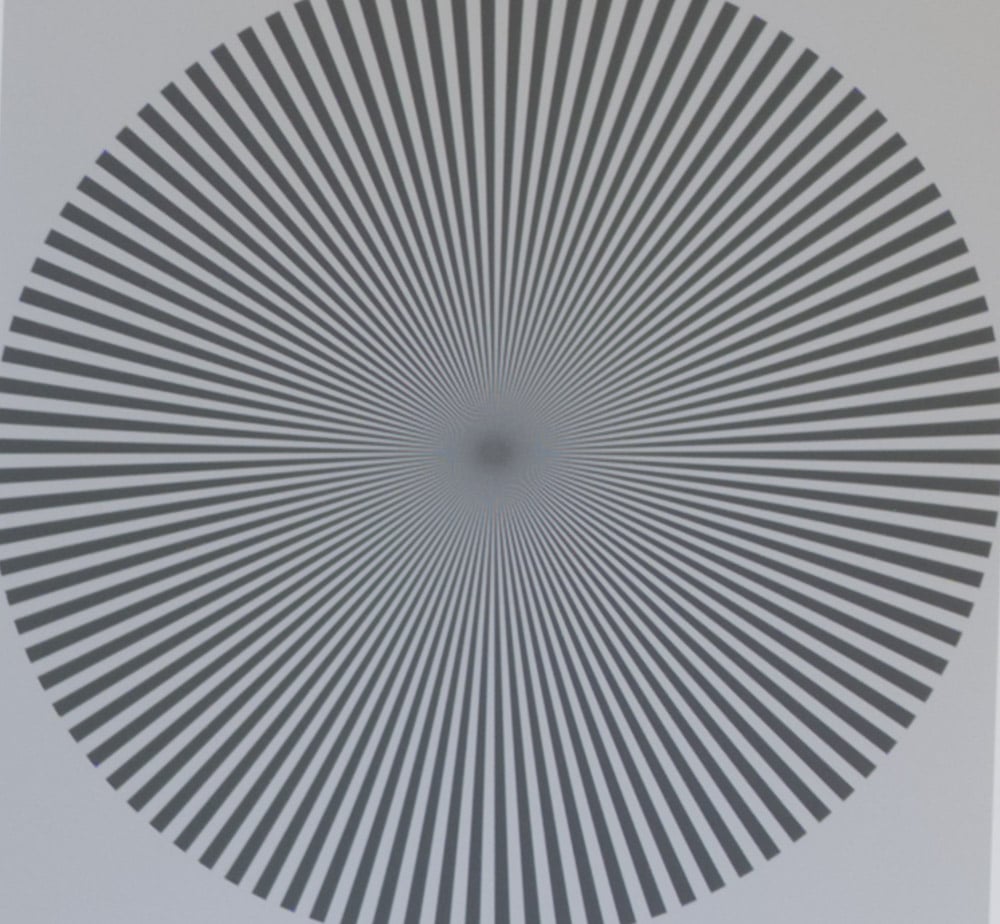

Fuji 63/2.8, corner, f/8

About the same, with the zoom winning by a whisker.

This is impressive performance from the 45-100/4 zoom.









GFX 100, GFX 50S

← Fuji 45-100/4 vs 110/2, Siemens star Fuji 45-100/4 vs 45/2.8, Siemens star →

Comments

  1. David Berryrieser says

    February 27, 2020 at 9:16 pm

    This really is an impressive performance from the new zoom. I typically expect modern zooms to be weakest in the center of the range.

    Reply
