20mm f/1.8 Nikkor S initial testing

March 27, 2020 JimK 5 Comments

It is a rare  occurrence that two rival camera manufacturers aiming for the top of one market (in this case full frame MILCs) introduce two lenses of the same focal length and aperture simultaneously. Yet that is what has just happened with the Sony 20 mm f/1.8 G E-mount lens and the Nikon 20mm f/1.8 S Z-mount one. It’s a little like two women showing up for a dress ball in the same outfit.  I’ve already some testing on the Sony lens(here, here, here, and here), but I’ve been holding back a bit, wanting to test both lenses together. [Added later. It turns out the lens is slightly tilted, but that won’t affect the results posted here.)

Now I can.

Yesterday the 20/1.8 Nikkor S arrived. It’s a big — mostly long — lens. It’s so long that, as I opened the box, the thought crossed my mind that I’d gotten the wrong lens.

The Nikon lens has sparse controls. There are just two: the programmable ring and a manual auto/manual focus switch. The Sony has both focus and aperture rings, a switch to set the aperture ring to clicky or clickless operation, an AF/MF switch, and a programmable button. The Nikon lens is about $150 more than the Sony one.

The weather is preventing me from doing my lens screening test on the Nikkor, but I should be able to do it today. Informal testing found nothing amiss, so I pressed on with my indoor low-contrast Siemens Star test of both lenses with the Sony lens mounted on an a7RIV, and the Nikon one on a Z7.

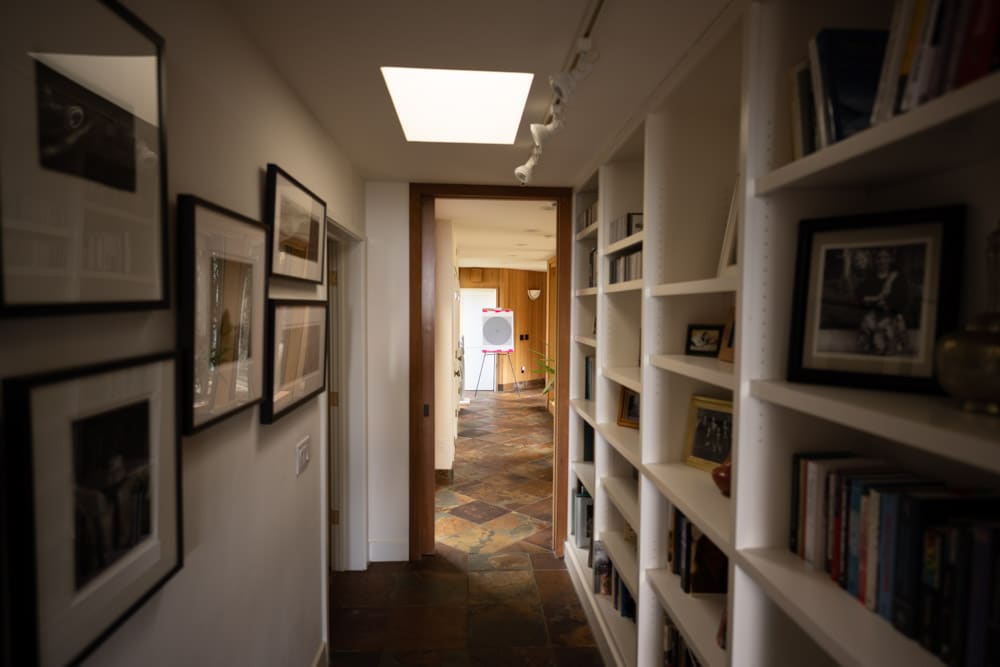

Here’s the scene, at f/1.8 with the target centered:

20/1.8 Nikkor S on Nikon Z7, center, f/1.8

The protocol:

  • Distance: 8 meters
  • Star in the center and the lower left corner.
  • AF-S, small spot (not pinpoint, in the case of the Z7.
  • Three shots at each setting, focusing anew for each shot, picking the best. This method calibrates out focus curvature.
  • Developed in Lightroom
  • Sharpening set to amount 20, radius 1, detail 0, which is quite a bit less than Lr’s default sharpening.
  • White balanced to the gray surround of the target (mixed lighting — daylight from both sides of the target — made this ineffective).
  • Adobe Color Profile
  • Minor exposure adjustments, with same adjustment applied to all images from each lens, so corner darkening is unaffected.
  • Everything else at default settings
  • They are presented at the same field of view, which is about 250% for the Sony, and slightly more for the coarser-pitched Nikon.

In the center:

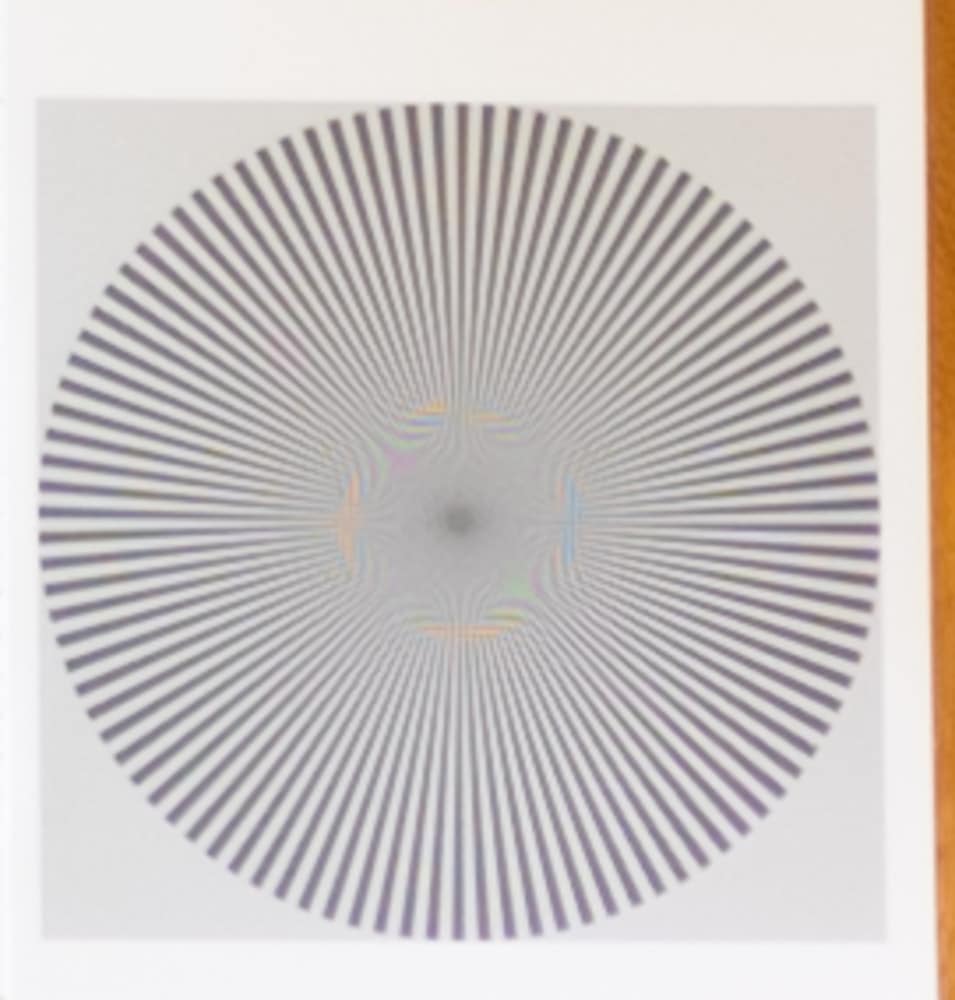

20/1.8 Nikkor S on Nikon Z7, center, f/1.8



Sony 20 mm f/1.8, center, f/1.8

The Sony lens is a tad slower (the T-stop is numerically larger) than the Nikkor, and quite a bit sharper.

Stopping the Nikkor down a third of a stop helps:

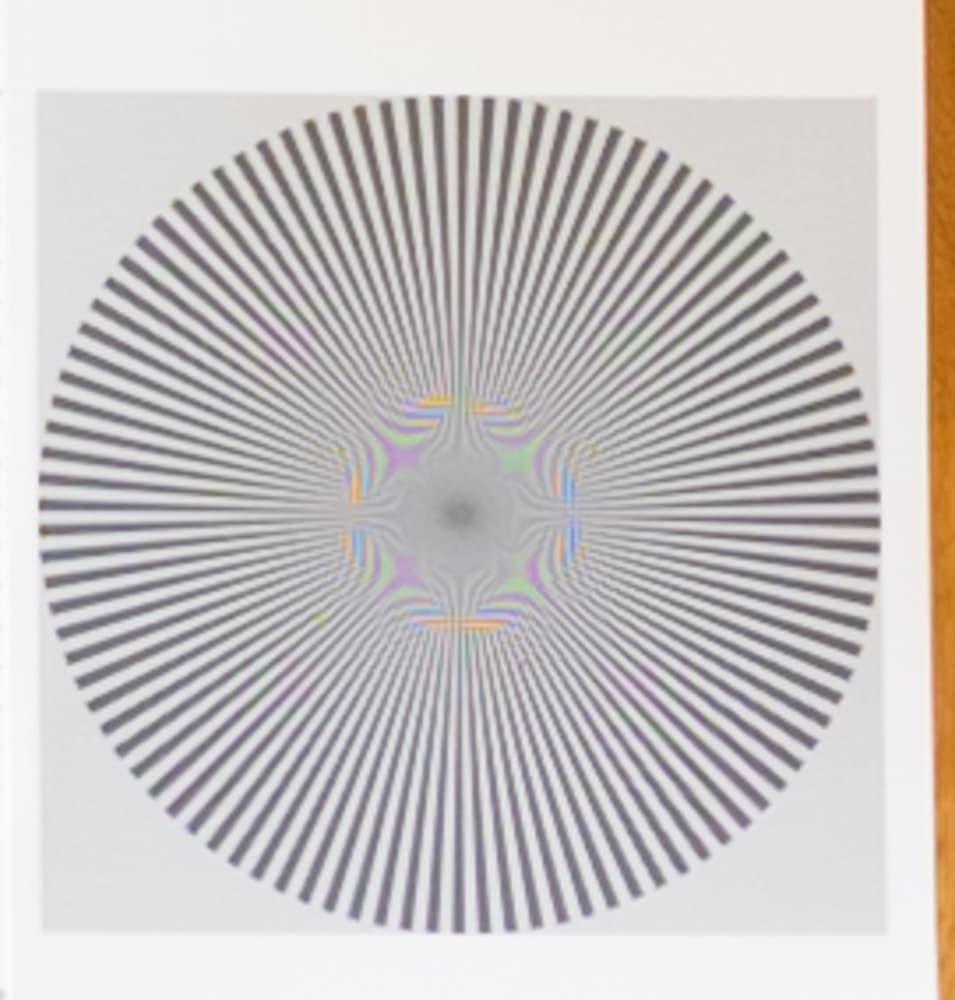

20/1.8 Nikkor S on Nikon Z7, center, f/2



At f/2.8:

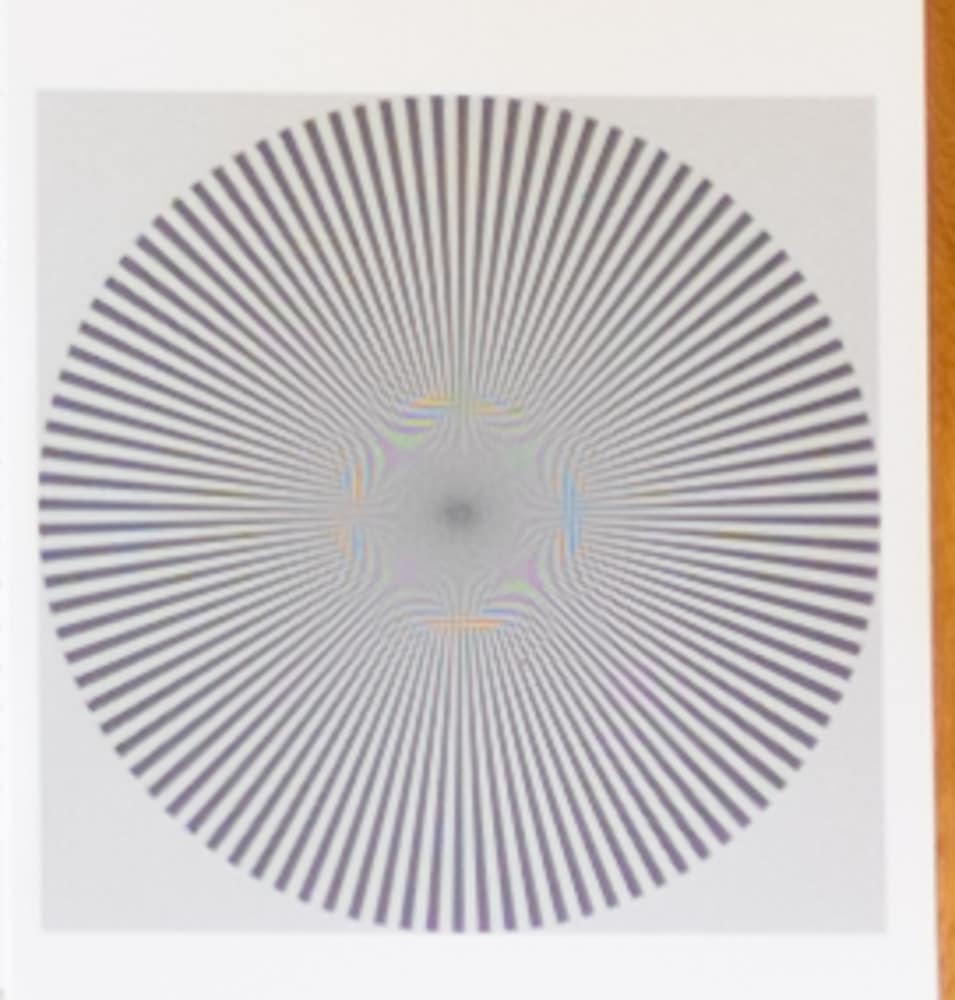

20/1.8 Nikkor S on Nikon Z7, center, f/2.8





Sony 20 mm f/1.8, center, f/2.8

Both lenses are doing fine here. The Sony is a bit sharper, even without considering its finer pixel pitch.

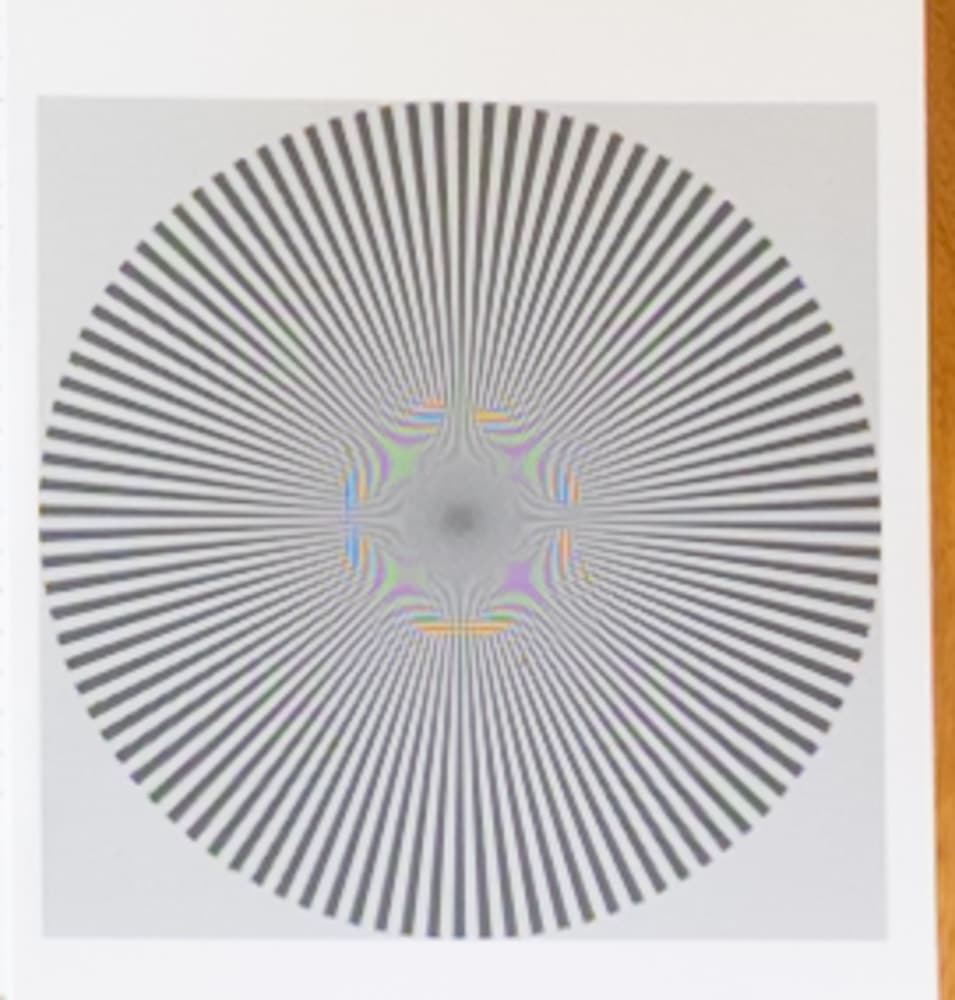

20/1.8 Nikkor S on Nikon Z7, center, f/4





Sony 20 mm f/1.8, center, f/4

Not much to choose between these.

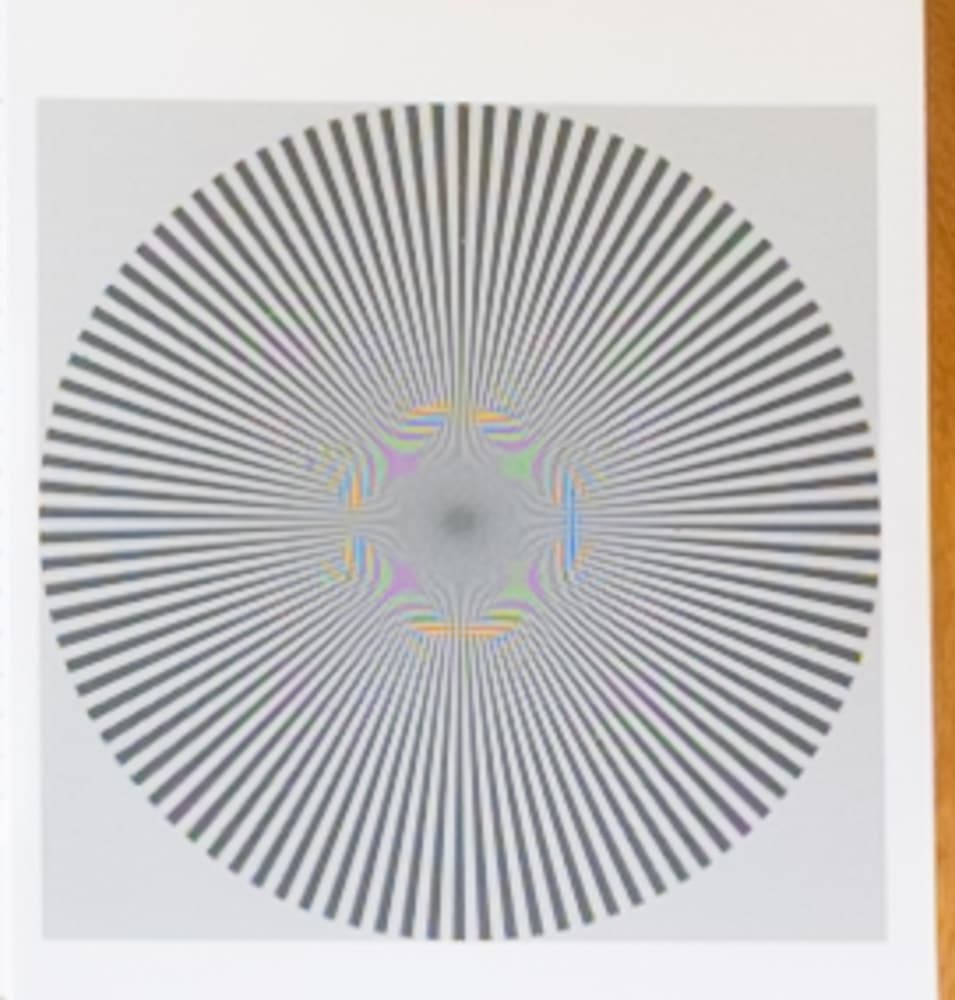

20/1.8 Nikkor S on Nikon Z7, center, f/5.6





Sony 20 mm f/1.8, center, f/5.6

Very similar.

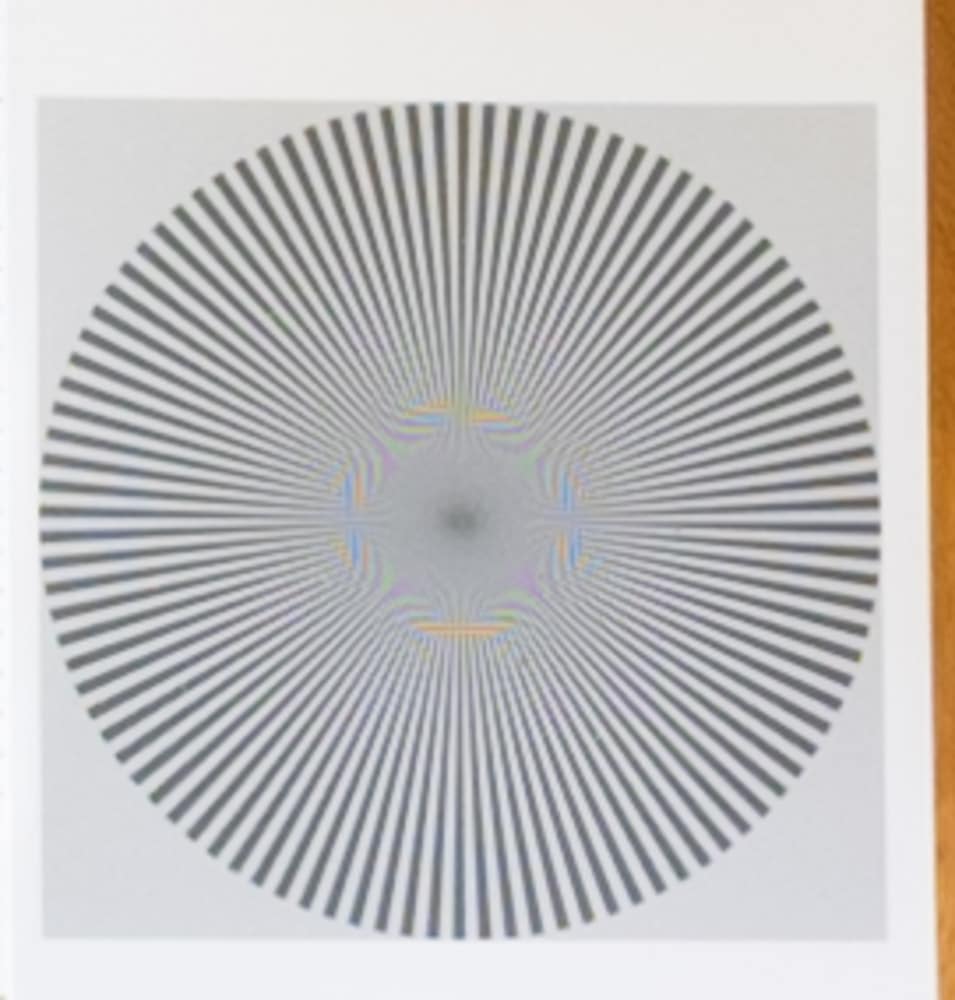

20/1.8 Nikkor S on Nikon Z7, center, f/8



Sony 20 mm f/1.8, center, f/8

Diffraction is taking its toll on both lenses.

In the lower-left corner:

20/1.8 Nikkor S on Nikon Z7, corner, f/1.8



Sony 20 mm f/1.8, corner, f/1.8

Sharpness is similar. The Nikkor has a lot more corner falloff. I had vignetting correction turned off in both cases.

There’s less fall off if we stop the Nikkor down to f/2.

20/1.8 Nikkor S on Nikon Z7, corner, f/2

At f/2.8:

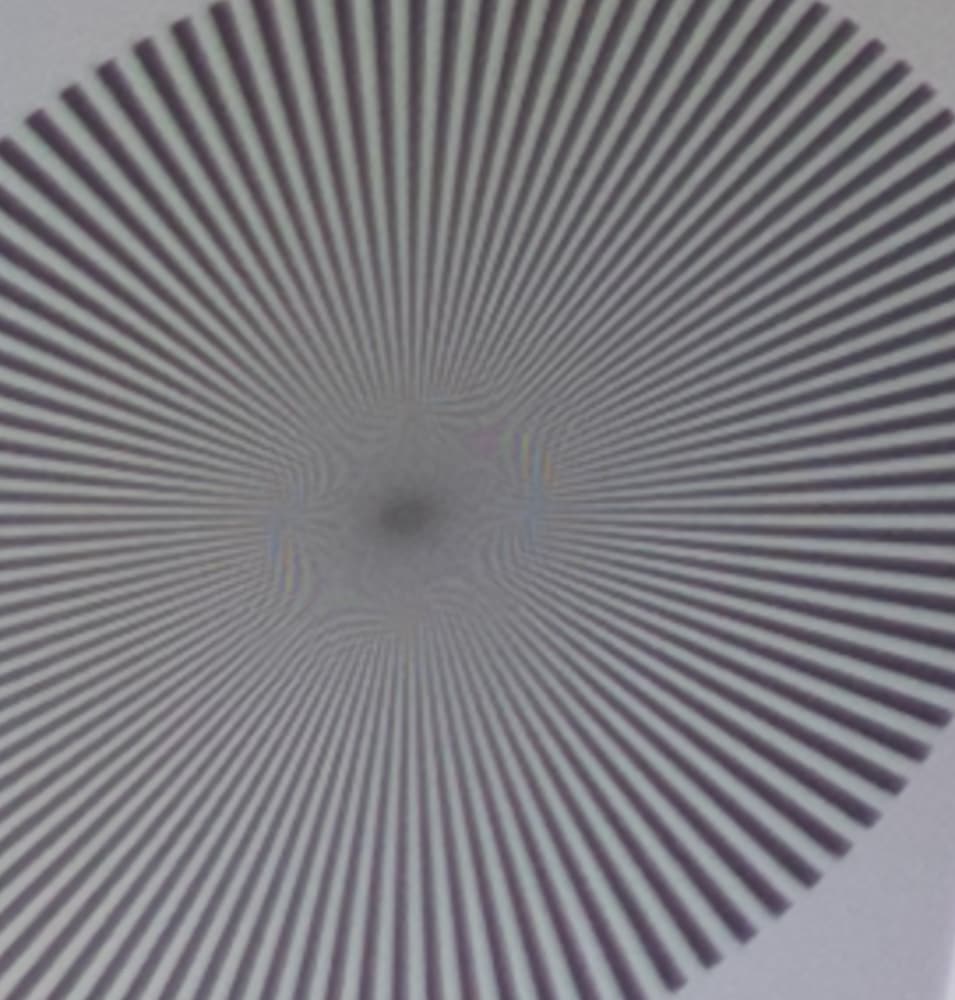

20/1.8 Nikkor S on Nikon Z7, corner, f/2.8



Sony 20 mm f/1.8, corner, f/2.8

The sagittal/tangential nature of the aberrations is more symmetric for the Nikkor. The increased aliasing is probably more of a function of the sensor than the lens.

At f/4:

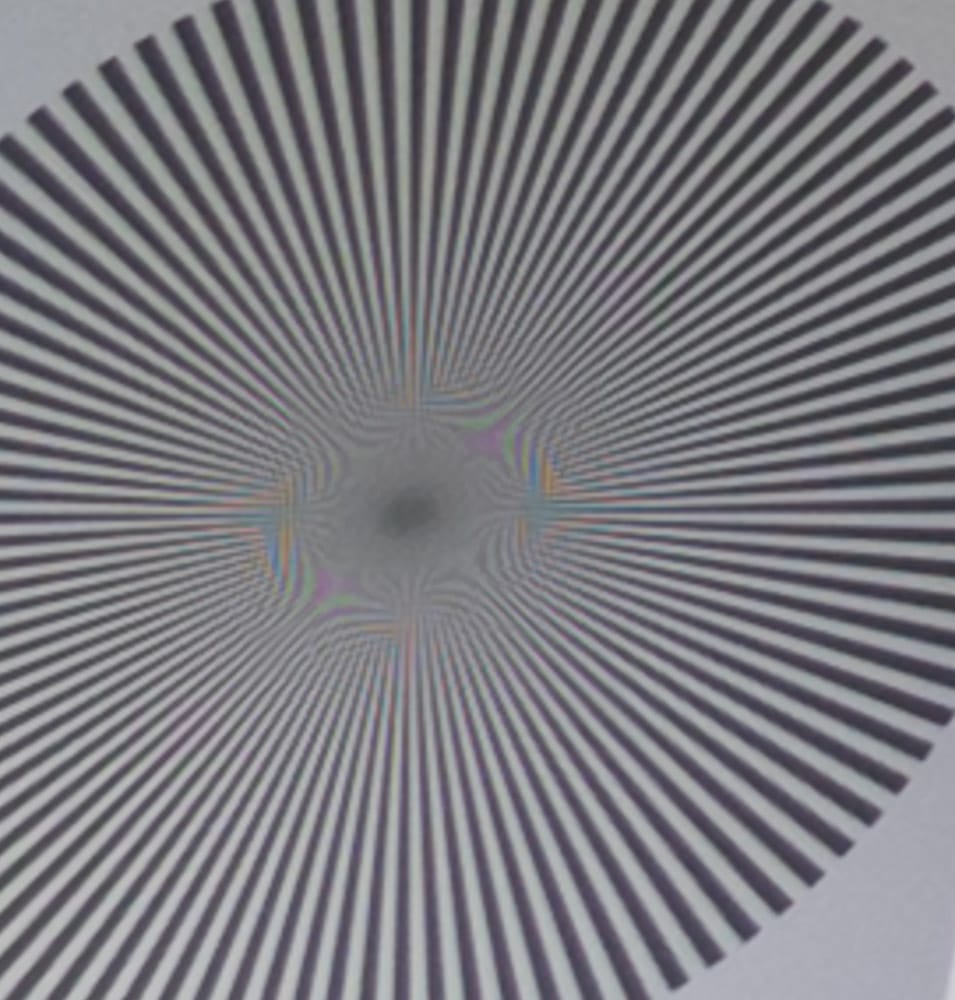

20/1.8 Nikkor S on Nikon Z7, corner, f/4

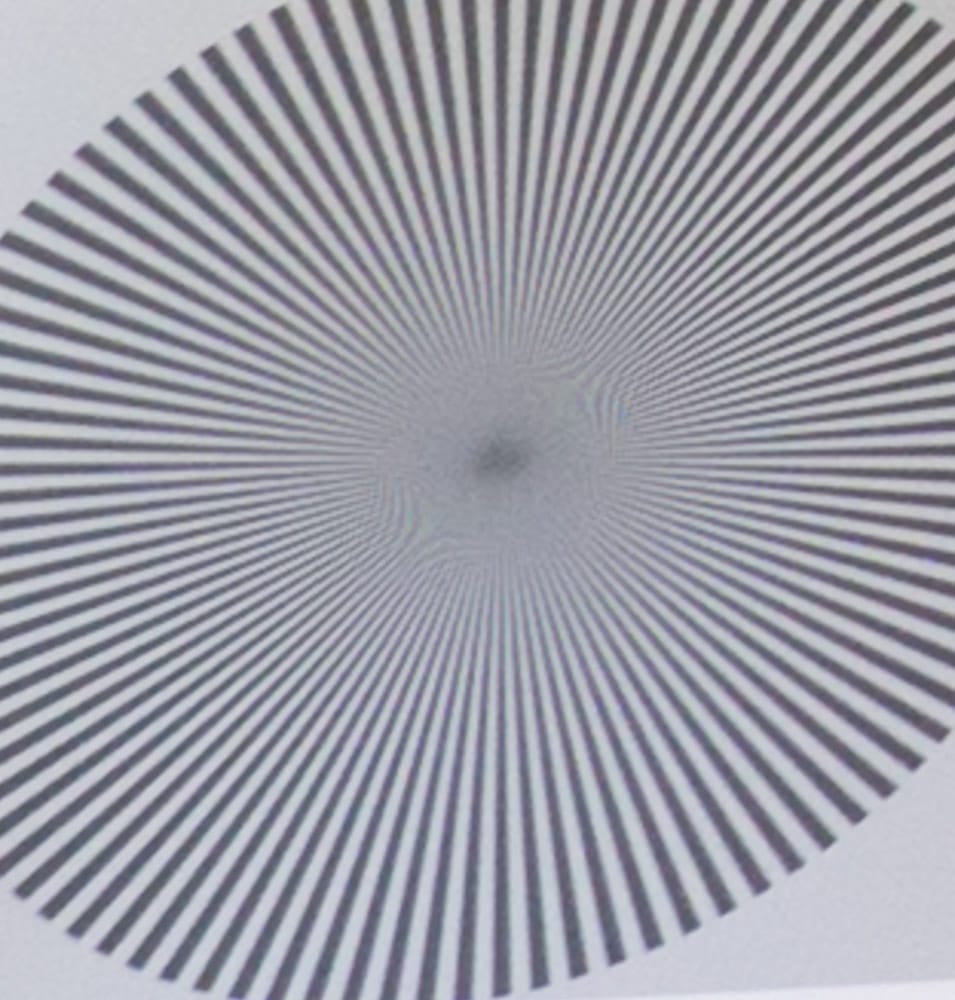

Sony 20 mm f/1.8, corner, f/4

Pretty close to a tie. The increased aliasing and false color of the Nikon is at least partly a function of the sensor pitch. The Nikkor is more contrasty.

20/1.8 Nikkor S on Nikon Z7, corner, f/5.6

Sony 20 mm f/1.8, corner, f/5.6

Very close.

And here’s the last pair:

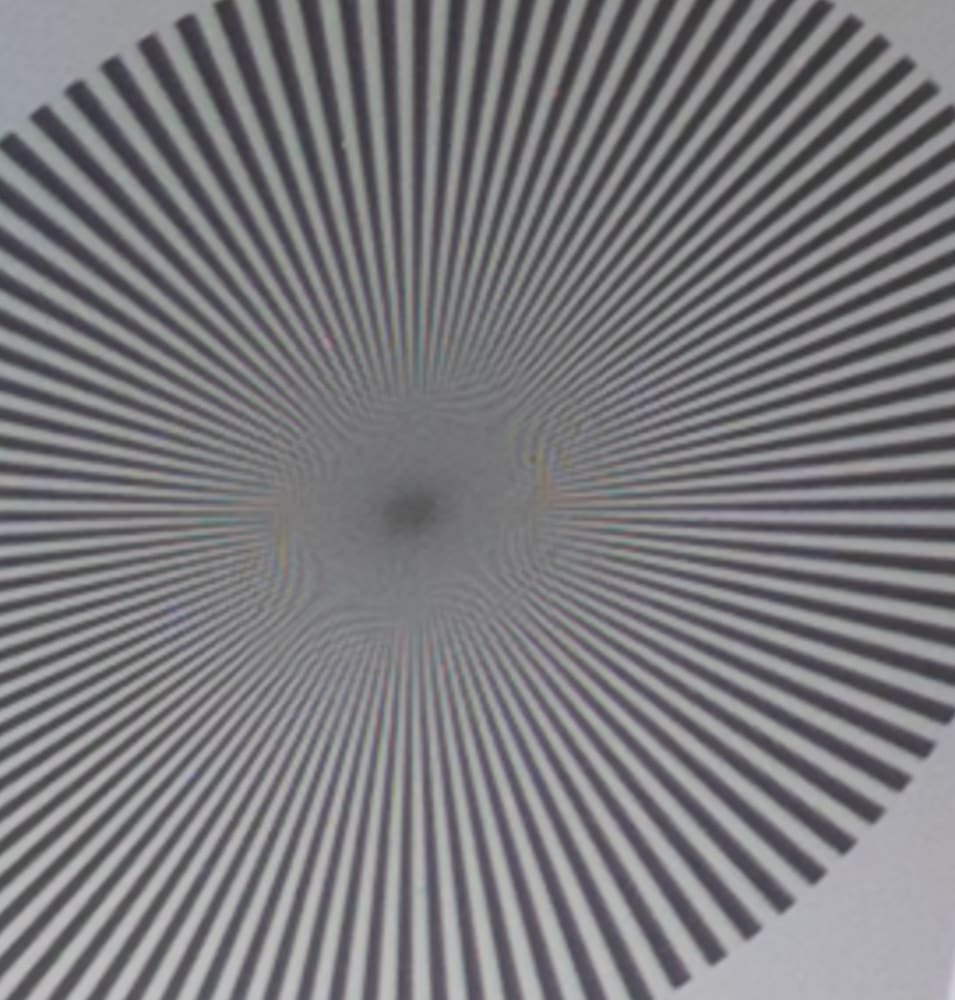

20/1.8 Nikkor S on Nikon Z7, corner, f/8



Sony 20 mm f/1.8, corner, f/8

I’d say that f/4 or f/5.6 is the best stop for across-the-frame sharpness if DOF is not an issue.
