a7III long-exposure spatial filtering

June 9, 2018 JimK 5 Comments

This is a continuation of a series of posts on the Sony a7III.   You should be able to find all the posts about that camera in the Category List on the right sidebar, below the Articles widget. There’s a drop-down menu there that you can use to get to all the posts in this series; just look for “a7III”.

There was a recent posting to the effect that the spatial filtering (aka “Star Eater”) present in many a7x cameras and firmware releases at shutter speeds of longer than 3.2 seconds has been “fixed” in the a7III. The spatial filtering is different, but it has not disappeared.

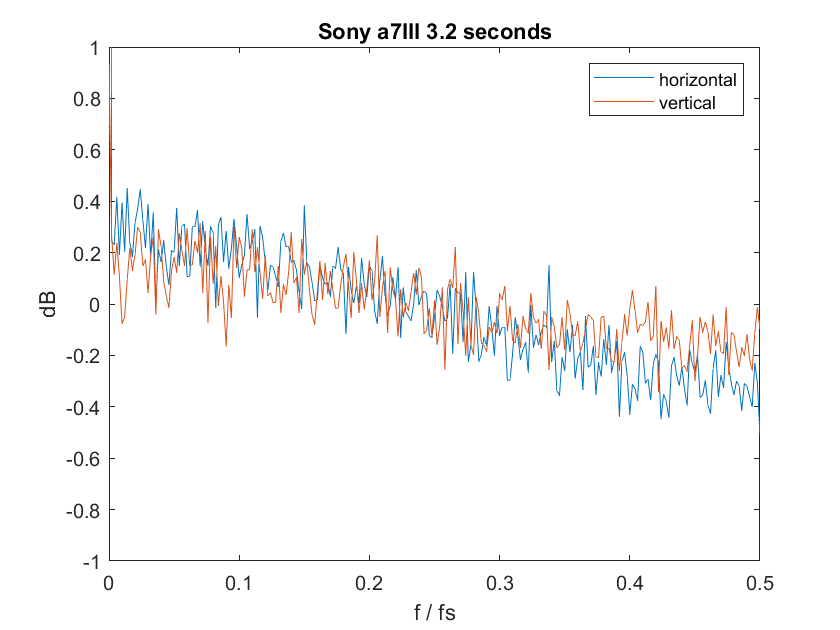

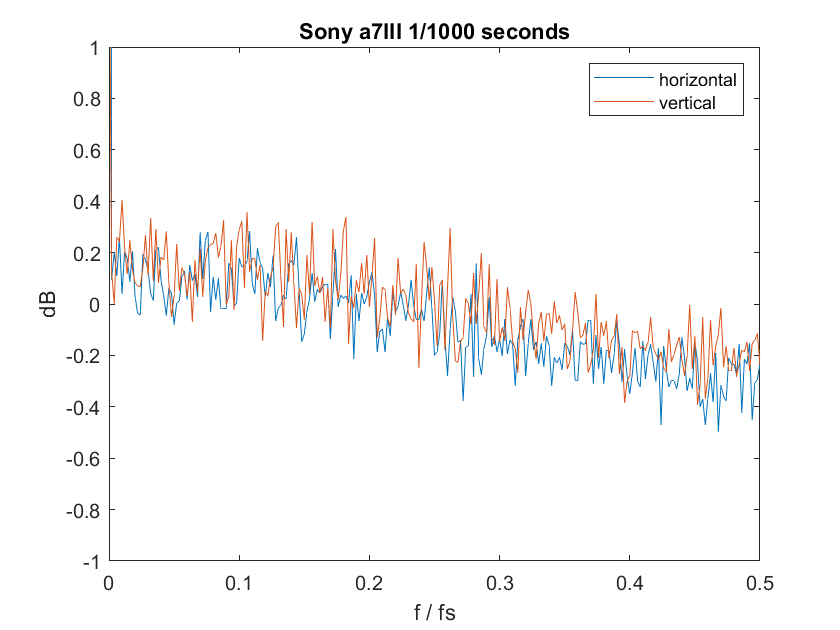

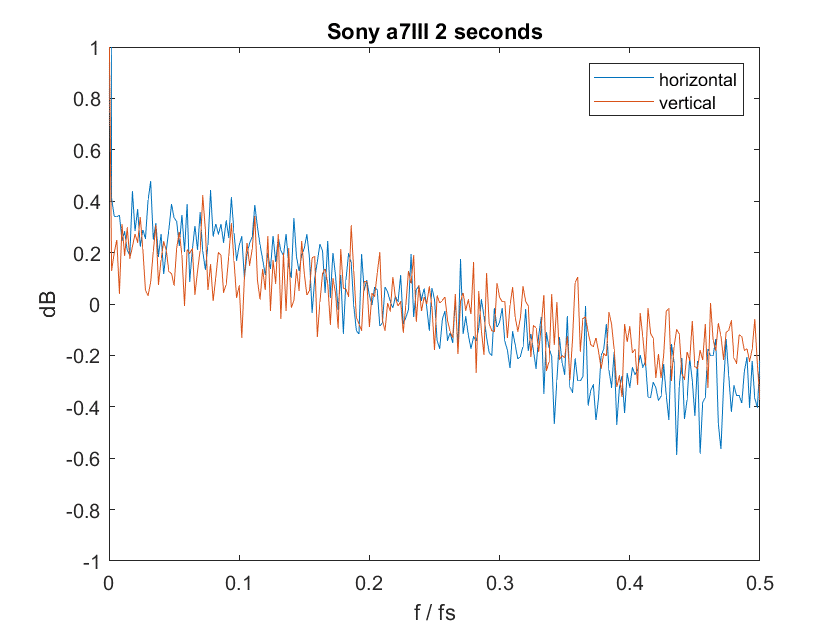

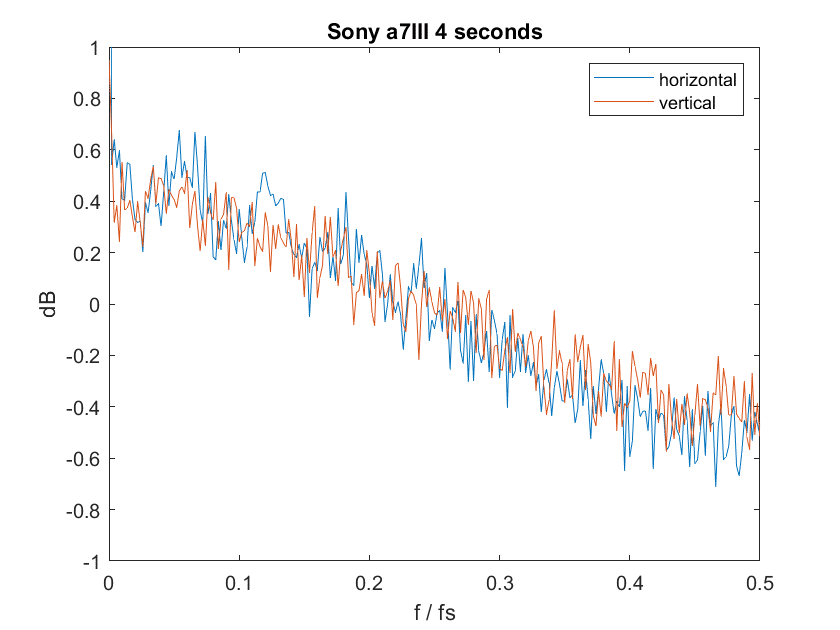

Here are the spectra of 600-pixel central crops from dark field images made with the a7III at ISO 1000 at various shutter speeds using EFCS, and single shot shutter mode, and asking the camera to write uncompressed raw files.











What is clear is that there are differences. Former cameras exhibited flat response at 3.2 seconds and longer, whereas with the a7III there is roll-off visible even at 1/1000 second. The roll-off is pretty much the same until 4 seconds, where it gets worse.

a7III

← The Zone System and digital cameras, part 3 Fuji 250/4 on GFX 50S — screeening →

Comments

  1. Dr. Gary says

    June 14, 2018 at 11:44 am

    I thought the issue was with bulb exposures over 30 seconds.

    Reply
    • JimK says

      June 14, 2018 at 12:01 pm

      Years ago the issue used to be with bulb exposures only, but Sony “improved” their firmware.

      Reply
  2. cheung man hoi says

    July 23, 2018 at 3:20 am

    If had too choose between a7r2 a7-3 for astro usage.
    Is 12bit still better than 7-3 filter problem?

    Reply
    • JimK says

      July 23, 2018 at 1:02 pm

      Is 12bit still better than 7-3 filter problem?

      For work where the accuracy of the color of the stars is important, and that as many stars as possible are recorded, I think so.

      Reply
