Sony a7III, a7RIII, a9 shutter latency — EFCS

June 30, 2018 JimK 5 Comments

A short while ago, I reported on the shutter latency of the Sony a7III using the all-mechanical shutter. I repeated the tests today using the EFCS, and added the a7RIII and a9.

The a7III latency is a lot less with the EFCS, since the camera doesn’t have to wind the shutter before it can get the shot off. As before, these are times from the contact closure at the remote release connector after having acquired focus to the contact closure that the camera provides at the X-synch terminals in the hot shoe when the shutter is fully open. Subtract about 4 milliseconds to get the times to when the shutter starts to open.

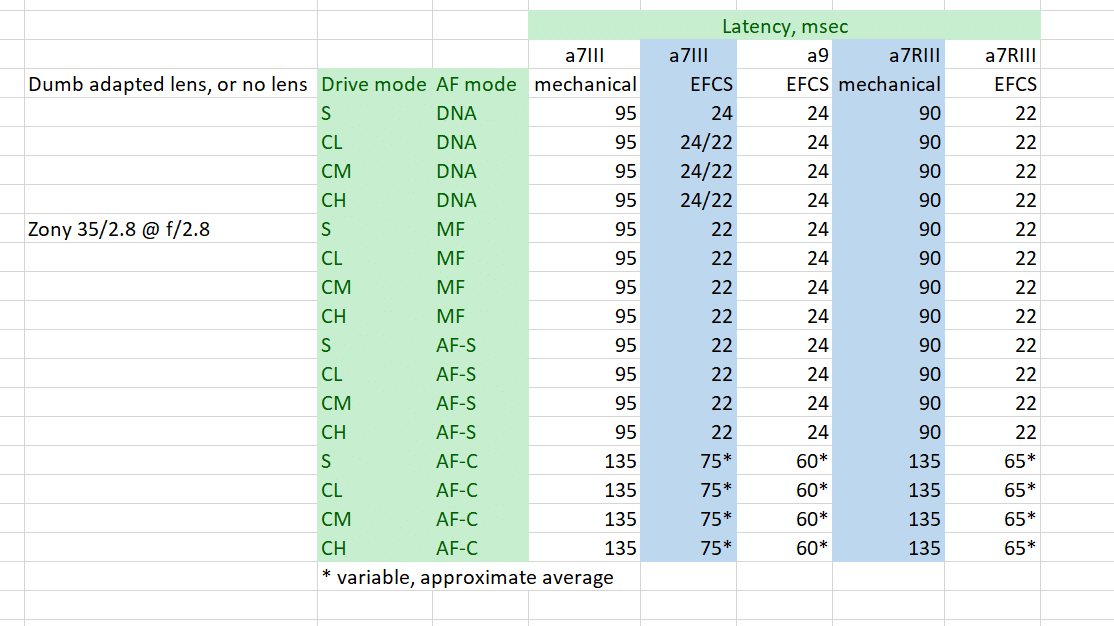

The 22/24 entries indicate that the first shot has 24 msec latency, and subsequent shots have 22 msec. The AF-C entries for the EFCS case showed a fair amount of variation. 75 msec was the approximate average.

I was asked if the lens aperture made any difference. It does not. There were also questions about the effect of AF priority. Somewhat surprisingly, that makes no difference (but note that we are releasing the shutter after focus confirmation is received). Unfortunately, I can’t do this test with the electronic shutter, as none of the cameras will trigger a flash in that mode.

The a9 and a7RIII are a bit faster than the a7III in AF-C mode, and about the same otherwise. I didn’t test the a9 in all mechanical mode since I think hardly anyone will use it that way much of the time, and I expect the results to mirror the other cameras when set up that way.

a7III, a7RIII, a9

← Arca-Swiss plate dimensions Lighting a fire with a strobe? →

Comments

  1. Erik Kaffehr says

    July 2, 2018 at 2:24 am

    Hi Jim,

    Excellent info, thanks for sharing.

    Best regards
    Erik

    Reply
    • JimK says

      July 2, 2018 at 8:20 am

      And thank you, Erik, for coming up with the idea for the test protocol.

      Reply
  2. NateW says

    August 8, 2018 at 8:20 am

    Hi Jim, just wondering, do you think that the additional /variable AF-C latency has to do with the Release/Focus/Balanced Prioroty setting?

    Reply
    • JimK says

      August 9, 2018 at 5:58 pm

      It might. I’d have to test to know for sure.

      Reply
