Sony 135 STF on GFX-50R, sharpness

October 14, 2020 JimK 4 Comments

I’ve already reported on the great news that the Sony 135 STF (apodized) A-mount lens covers the GFX sensor with zero vignetting. Now I’m going to look at sharpness, both on and off axis, using a slanted edge and a Siemens Star for a target.

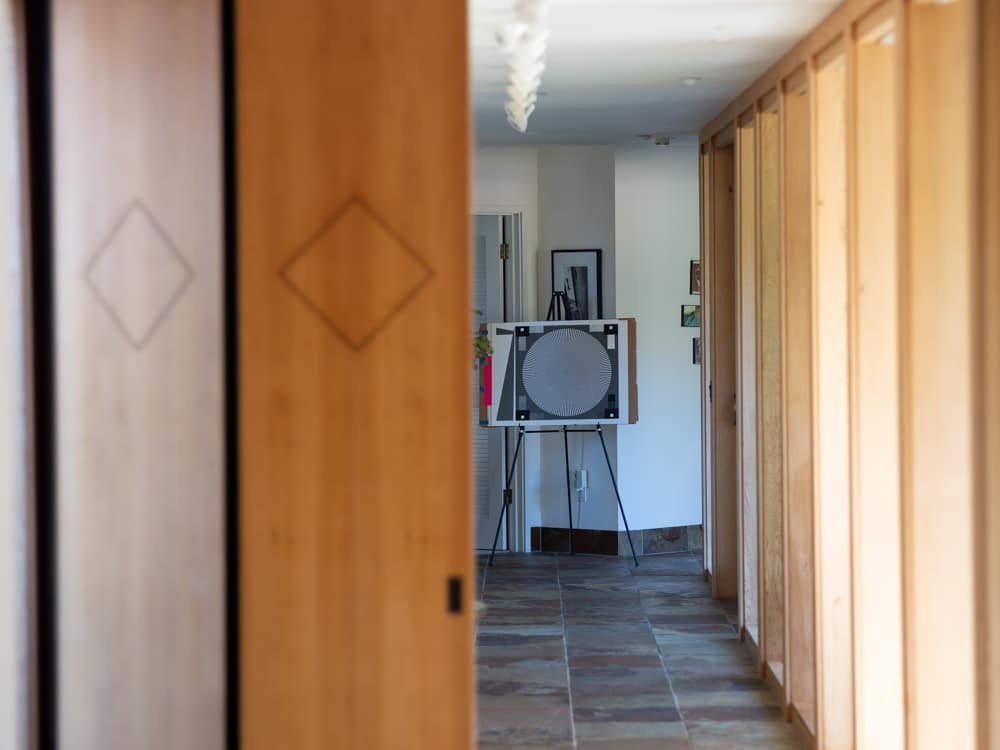

Here’s the scene:

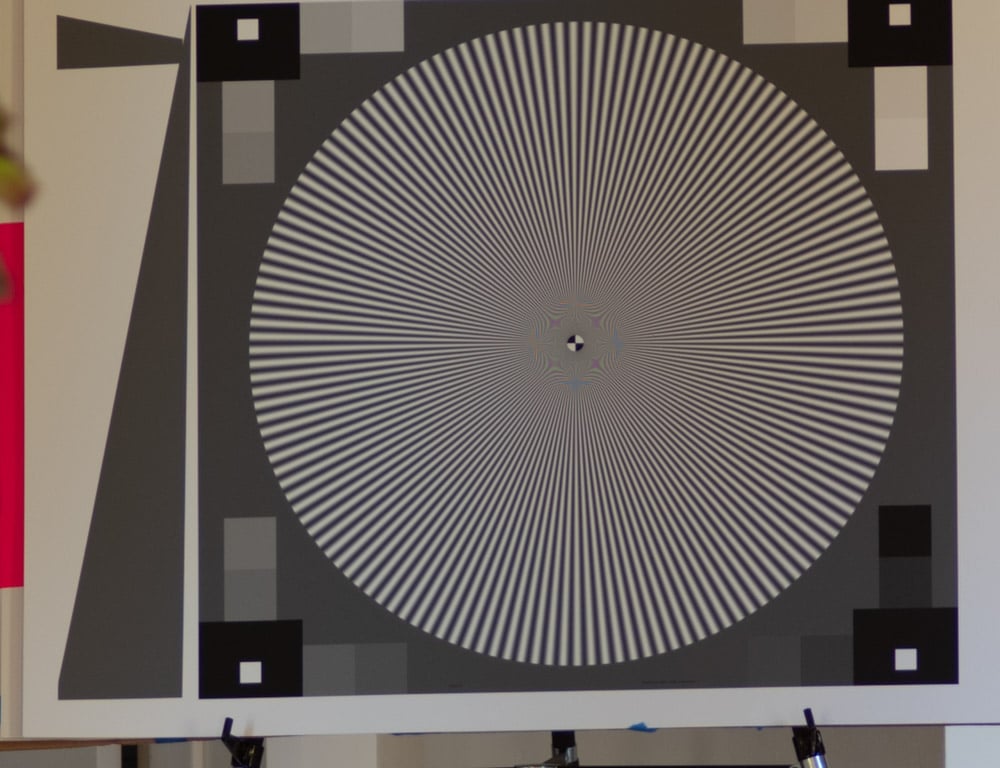

And here’s just the target area, as seen wide open with the GFX 50R, first in the center:

And in the corner:

Particulars:

  • ISO 100
  • Wide open in STF mode
  • Manual exposure, ETTR in live histogram.
  • Subject in the center and the upper right corner.
  • Manual focusing.
  • Six shots at each setting, focusing anew for each shot, picking the best using the Imatest sharpness ranking utility. This method calibrates out focus curvature.
  • Developed in Lightroom
  • Sharpening set to zero.
  • White balance set to gray background on Siemens Star target
  • Adobe Color Profile
  • Minor exposure adjustments, with same adjustment applied to all images from both lenses, so corner darkening is unaffected.
  • Chromatic aberration correction turned off.
  • Everything else at default settings

The slanted edge results in the center:

That is quite sharp. Lr’s demosaicing is providing a little sharpening, too. The small microlenses int he GFX 50x cameras are doing their part.

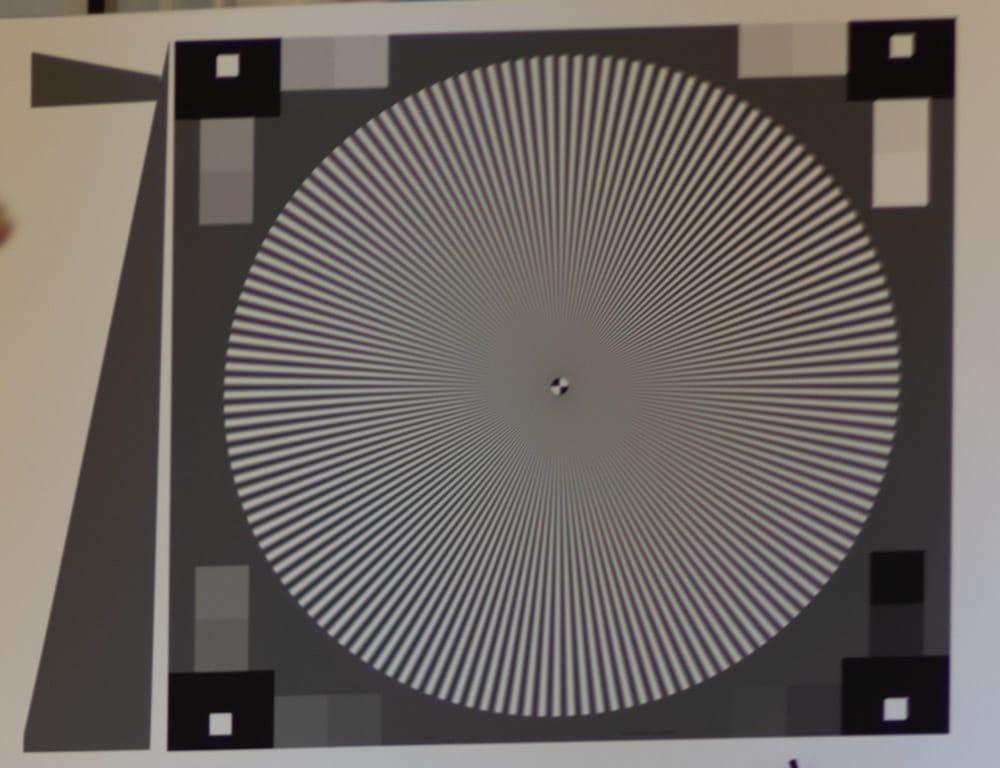

In the corner:

That is distinctly unsharp. But I suspect that corner sharpness is unimportant the way that most people would use this lens.

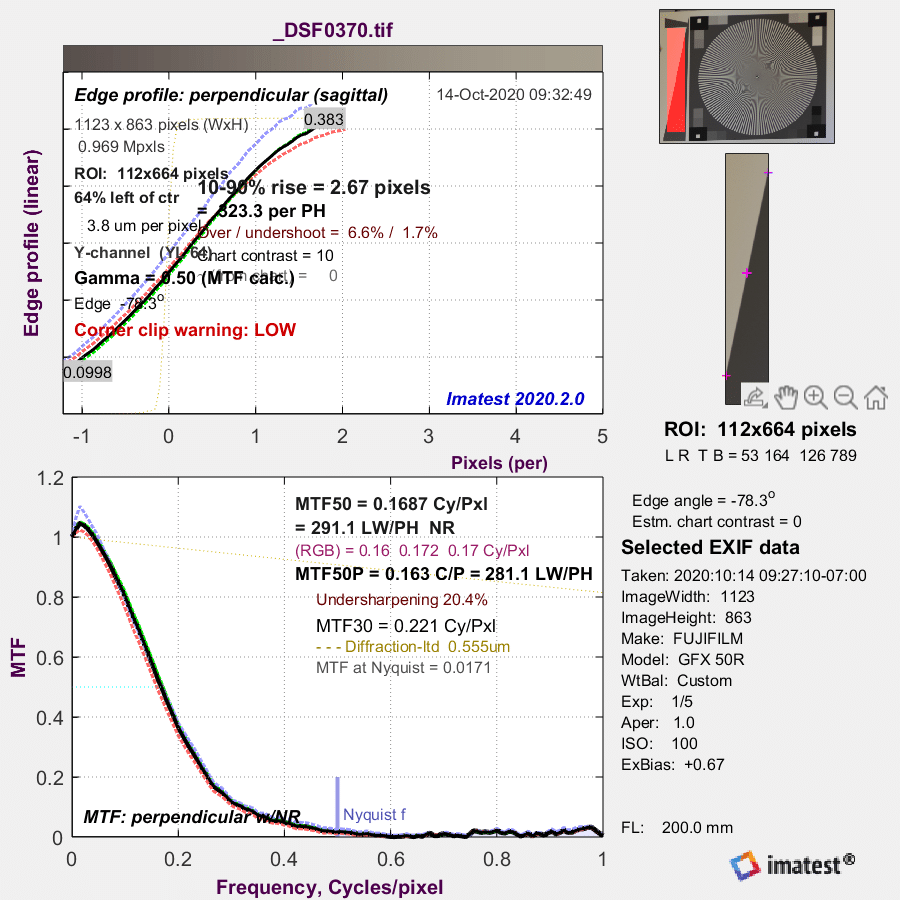

Now let’s look at how the sharpness varies with angle. First in the center:

The lens is slightly sharper vertically than horizontally, but the differences are  small.

In the corner:

The lens is much sharper in the radial direction than in the tangential one.

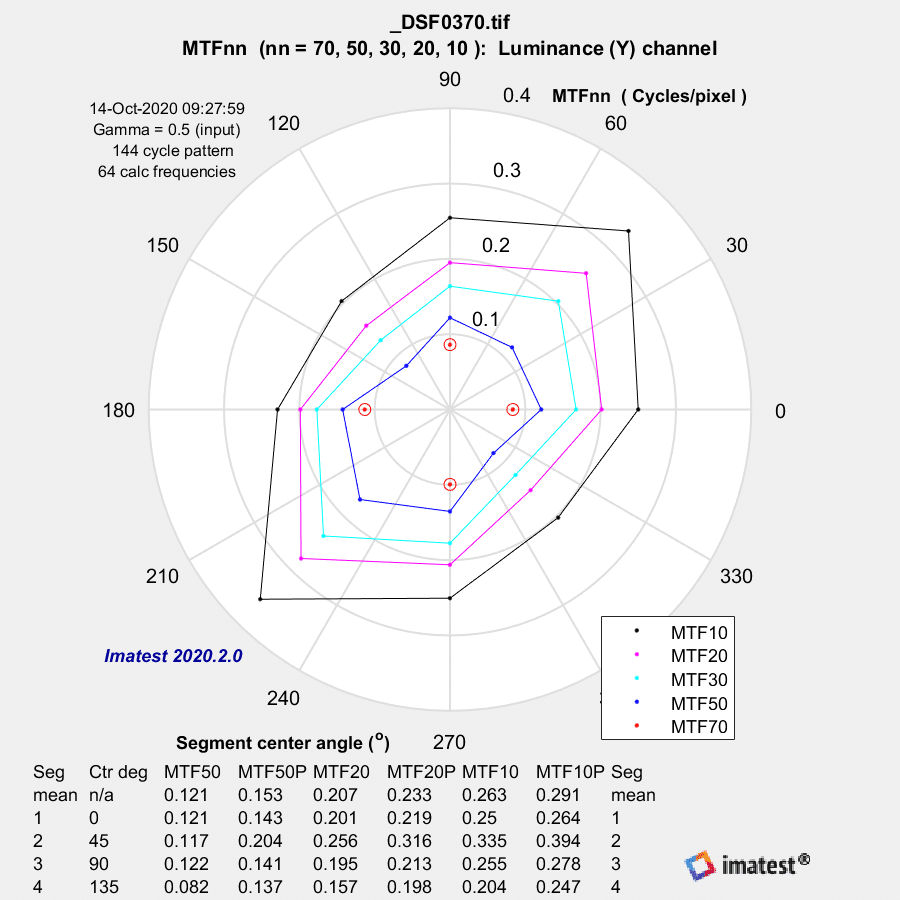

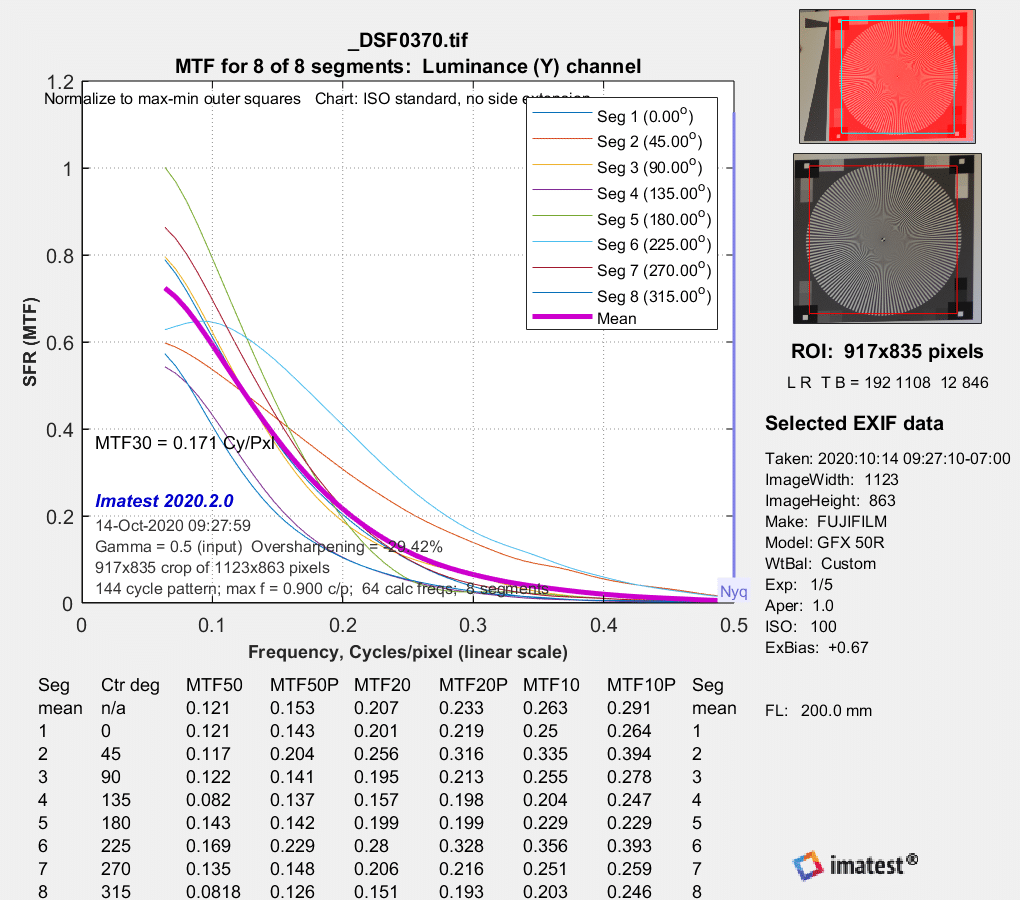

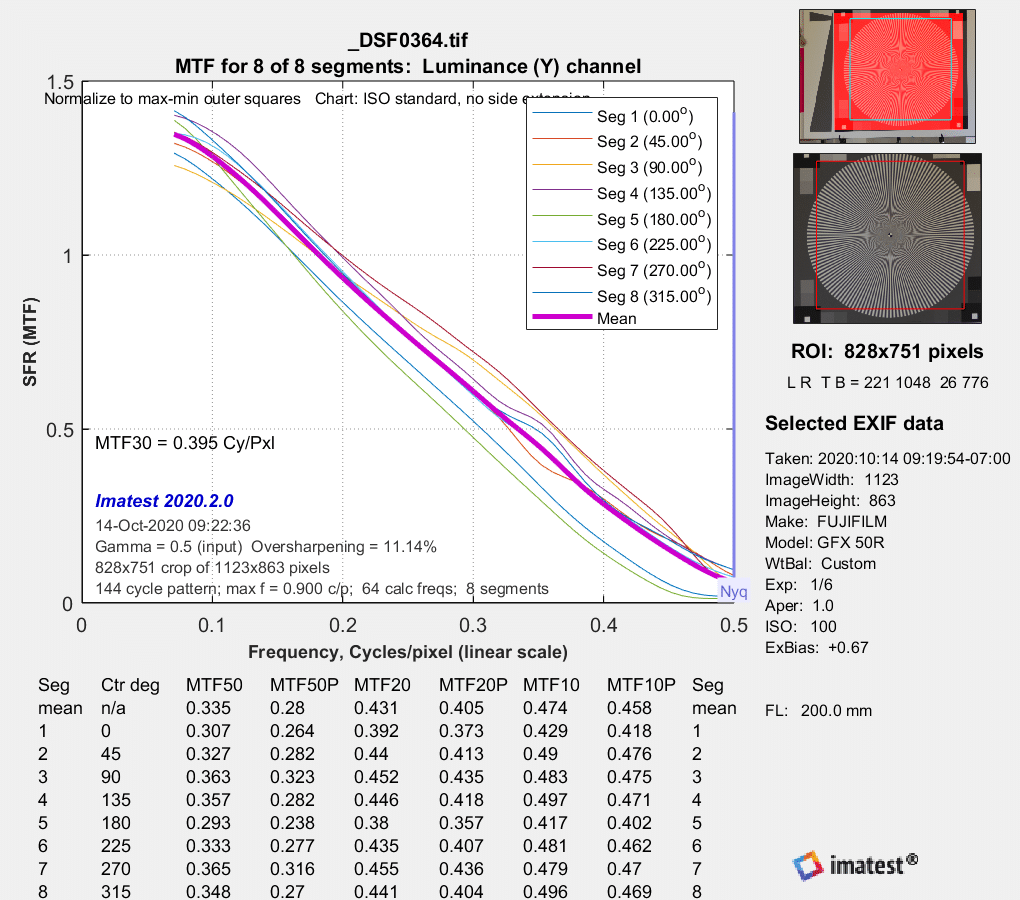

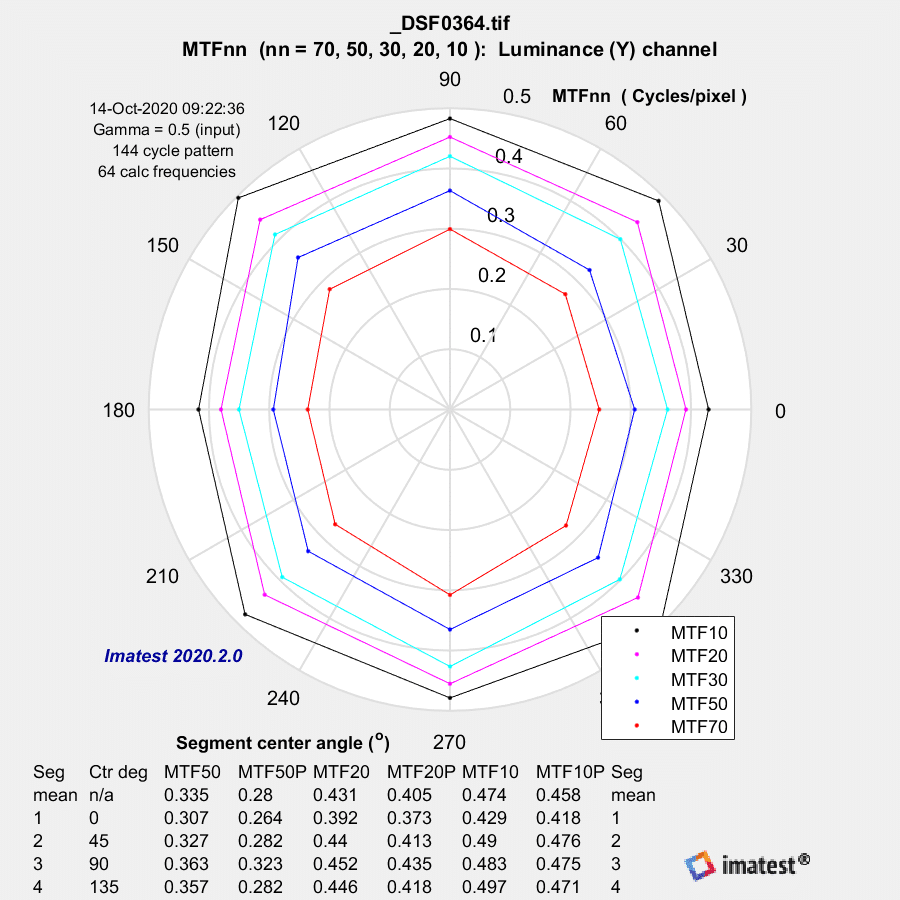

We can see the same effect when we look at the MTF curves in various directions. In the center:



And in the corner:



For completeness, I’ll include the new Shannon capacity curves. I’m still trying to figure out how best to use these.

In the center:



And in the corner:

It looks to me that this lens will be fine for portraits. I’ll be doing some bokeh tests next.
