Poor man’s C1 Cube?

November 21, 2021 JimK 1 Comment

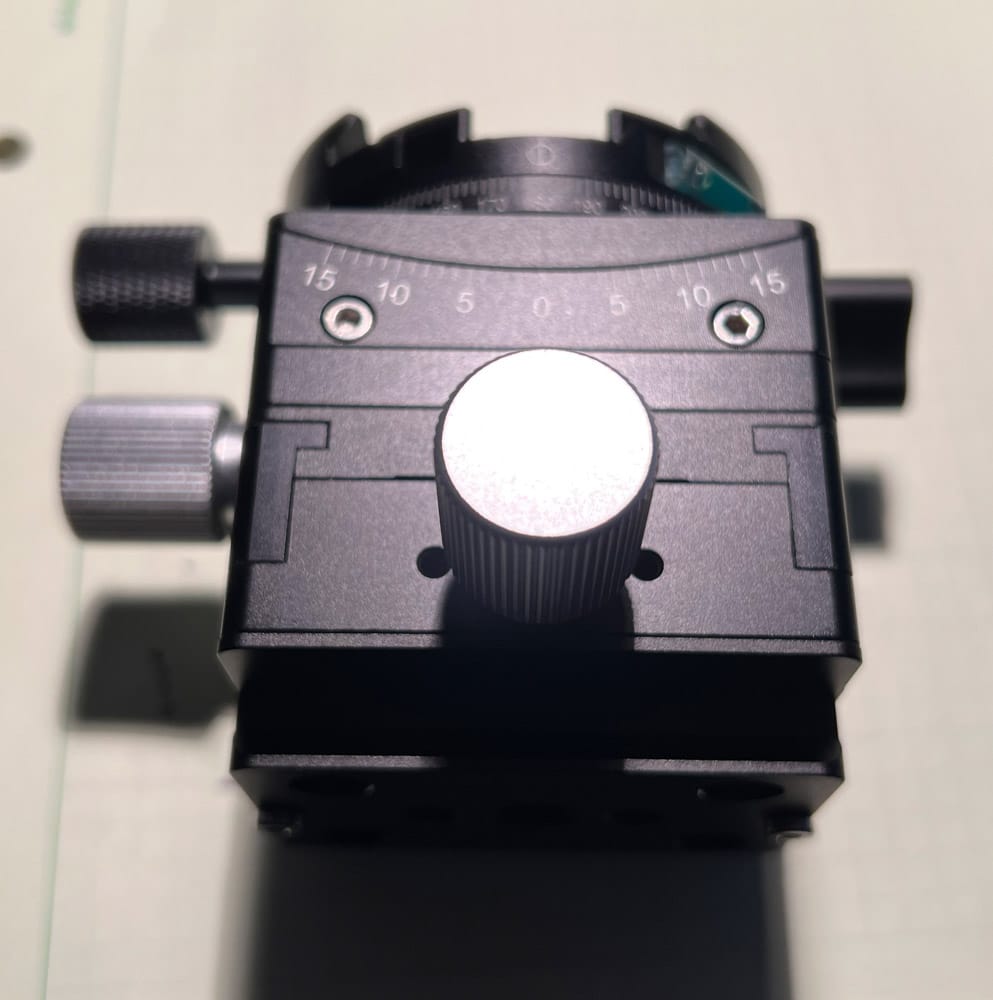

I saw an ad for a 500 buck small geared tripod head that looked a lot like an Arca Swiss C1 Cube. I bit.

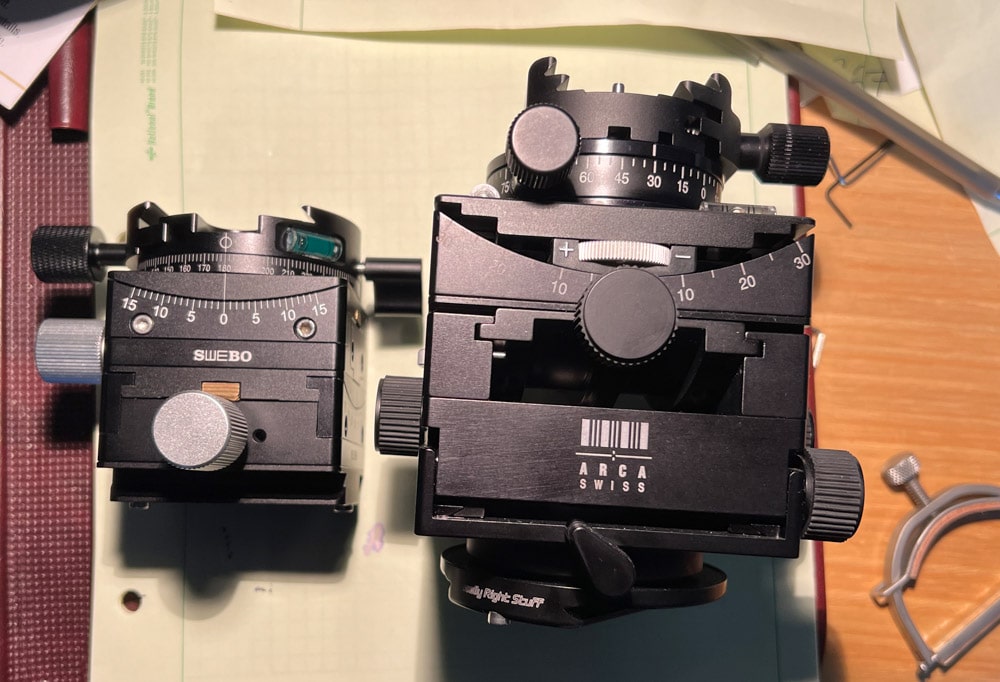

Here’s what it looks like next to the C1:

It appears to be reasonably well built, but there’s no yaw possible below the pitch and roll axes. It needs to be attached to a base that provides yaw, at least for my uses. It is fitted with an Arca dovetail on the bottom, so that’s presumably what the designer thought, too.

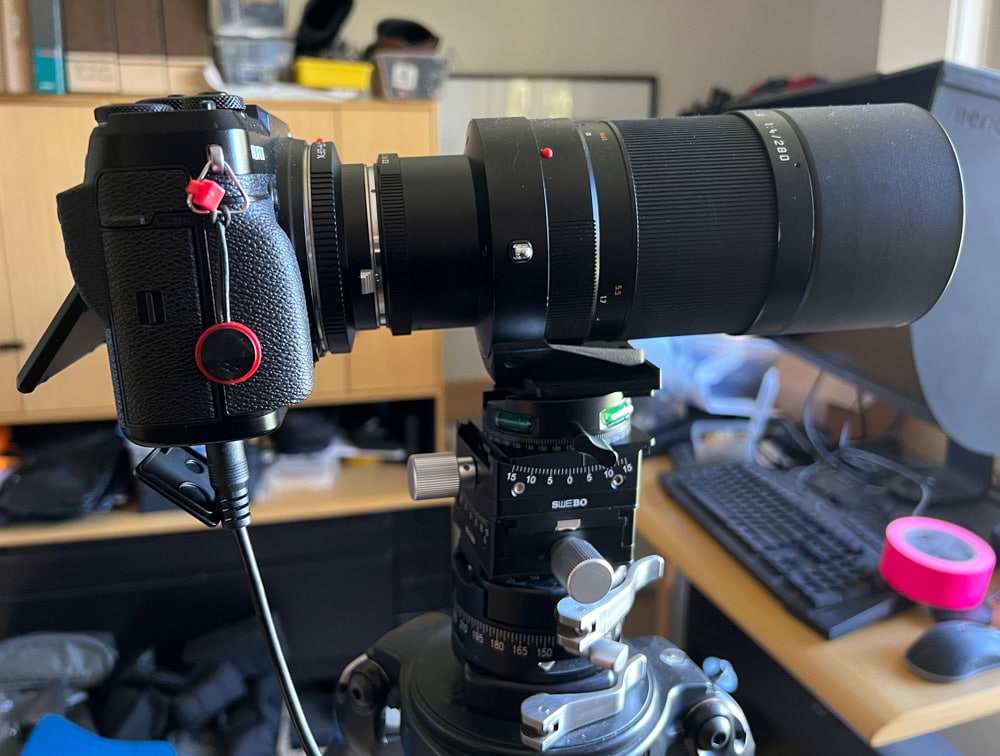

Here’s what it looks like in use:



Plusses:

  • Small
  • Light
  • Cheap
  • Well constructed

Negatives:

  • Only plus and minus 15 degrees of roll and pitch
  • No geared yaw
  • No base yaw

Conclusion: won’t replace the C1, but might keep you from having to buy more than one.



The Last Word

← Amp glow in Fujifilm GFX 50S Mark I and II What pitch do you need to scan 6×6 TMax 100? →

Comments

  1. Denis says

    November 22, 2021 at 4:06 am

    I want to note that it’s more of a Linhof 3D Micro “copy”. To be precise, it uses worm gear like 3D Micro and has same roll and pitch ranges (and 3D micro has base yaw like Cube, but this one does not).

    Reply
