Two days ago, I reported on longitudinal chromatic aberration (LoCA) and focus shift with the Fuji 23 mm f/4 lens on the GFX 50S. I found the focus shift to be minimal, and the LoCA about average for a high-quality lens. Now I’m going to do a similar test with the Fuji 110 mm f/2 lens. However, the focal length being different, and me being me, I’ve made some changes:
I’ve changed the target back to the backlit razor blade. This is the best target I have for not limiting the results due to fuzziness in the target itself, and, for that reason, having the results not depend on target distance. I couldn’t us it with a lens as short as the 23, but I can with the 110. This makes the results directly comparable with thos I’ve done with the razor blade in the past, but means that the numbers will be apples to the 23 mm test results’ oranges.
I’ve gone to a vertical orientation for the razor blade. A horizontal slanted edge is really hard to focus on, which means that some times the sharpest point in the motorized rail travel wasn’t in the middle of the rail. In fact, sometimes it wasn’t in the whole series, which would mean that I’d have to go back and reshoot, or leave that data out. This situation is made worse in a lens with a lot of focus shift, where the distance from the sharpest point at one aperture and that at another can use up a lot of the available rail travel. Because the focus peaking in all the mirrorless cameras that I’ve tested is tuned for vertical edges, this orientation makes it easier to focus.
I’m using electronic shutter. Going to a vertical orientation makes the results more sensitive to vibration in the horizontal direction, which is the direction that a tripod is the worst at resisting. Using ES means that there are fewer vibrations from the preceding shot that have to have damped down by the time the next one happens.
I changed the target distance to 2 meters. This is a more representative subject distance than the 80 cm I was forced to use with the 23 mm lens.

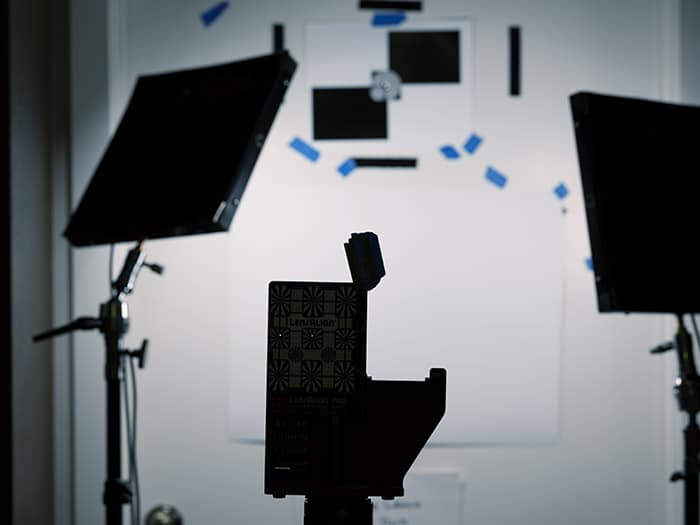

Here’s what a single exposure at the beginning of the f/2 series looks like:
A quick review of the test protocol:
- GFX 50S
- 110 mm f/2 Fuji lens
- ISO 100
- Manual exposure
- Wescott LED panels set to 5500 K.
- EElectronic shutter
- Manual focus, set at one position in the center of the rail
- Cognisys computer-driven focusing rail
- 101 exposures 1.6 mm apart
- Target distance at the center of the rial, 2 m
- RAF converted to DNG in Adobe DNG Converter
- DNG exported as TIFF mosaiced file in dcraw (document mode)
- TIFFs cropped and raw channels selected in Matlab program
- MTF50 of cropped TIFFs measured with MTF Mapper
- Data assembled in Matlab
- Data plotted in Excel
The results for each aperture tested:
The vertical axis is MTF50, measured in cycles per picture height (cy/ph). The horizontal axis is camera position shift in cm. The points on the left side of the graph are with the camera farther away from the subject than the points on the right.

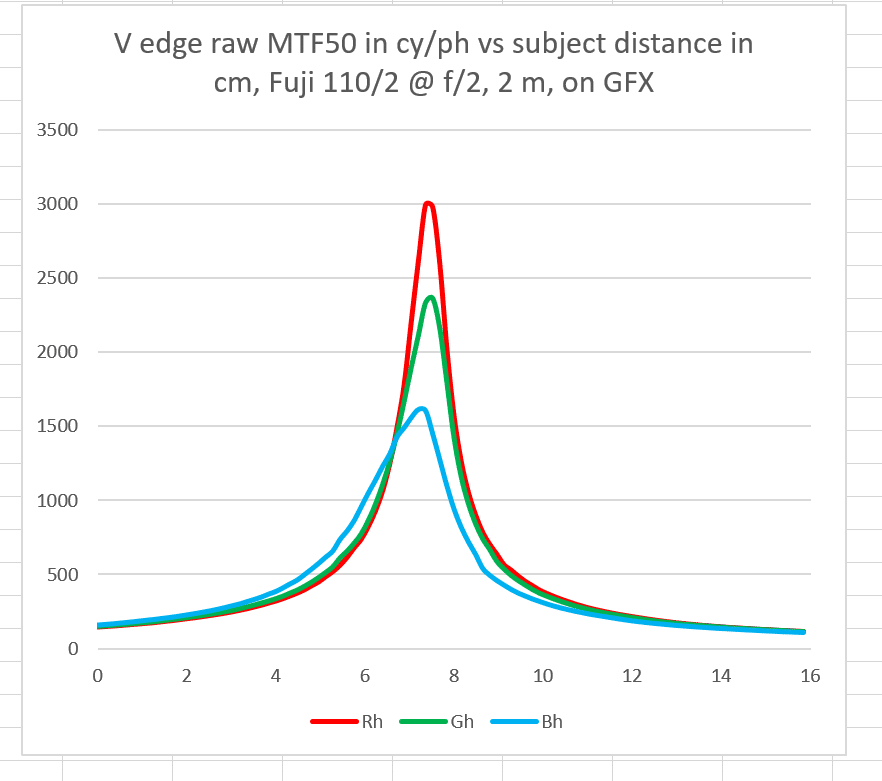

Wide open, the red and green channel performance is very impressive, but the blue channel lags badly. If you had to pick a channel to be off the pace, blue would be your choice. There is a tiny bi tof LoCA visible as the peaks don’t all occur at exactly the same place, but this lens is we” corrected for LoCA.

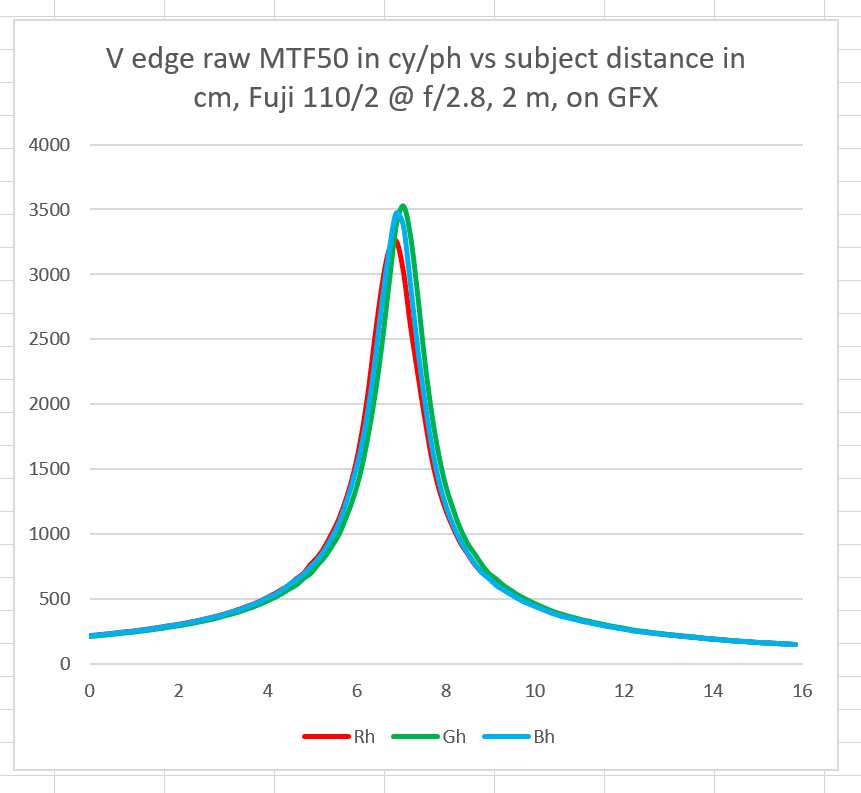

This is an incredibly good. Not only are the numbers really high, the peaks all occur in about the same place.

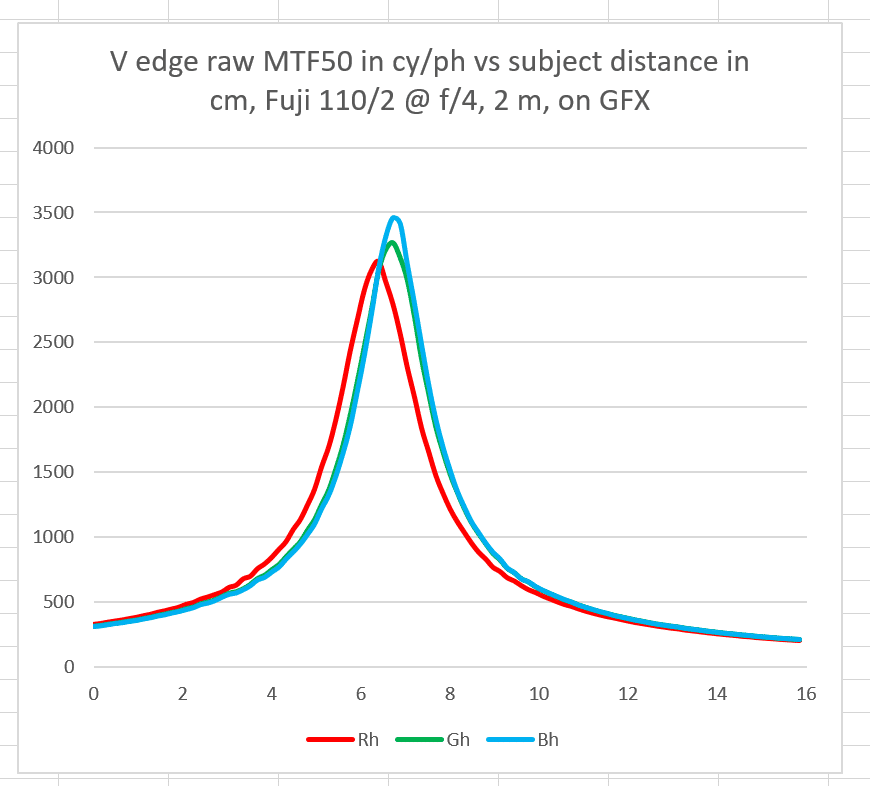

At f/4, the red channel peak shift a bit further away from the other two, but this is still excellent performance.

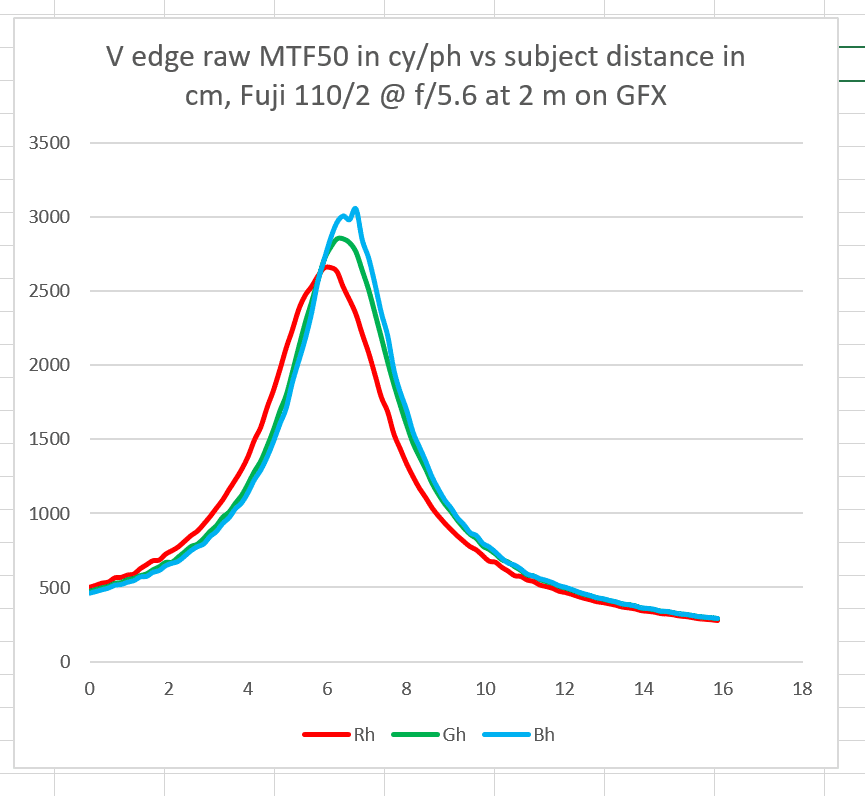

The trend continues at f/5.6, with still great results.

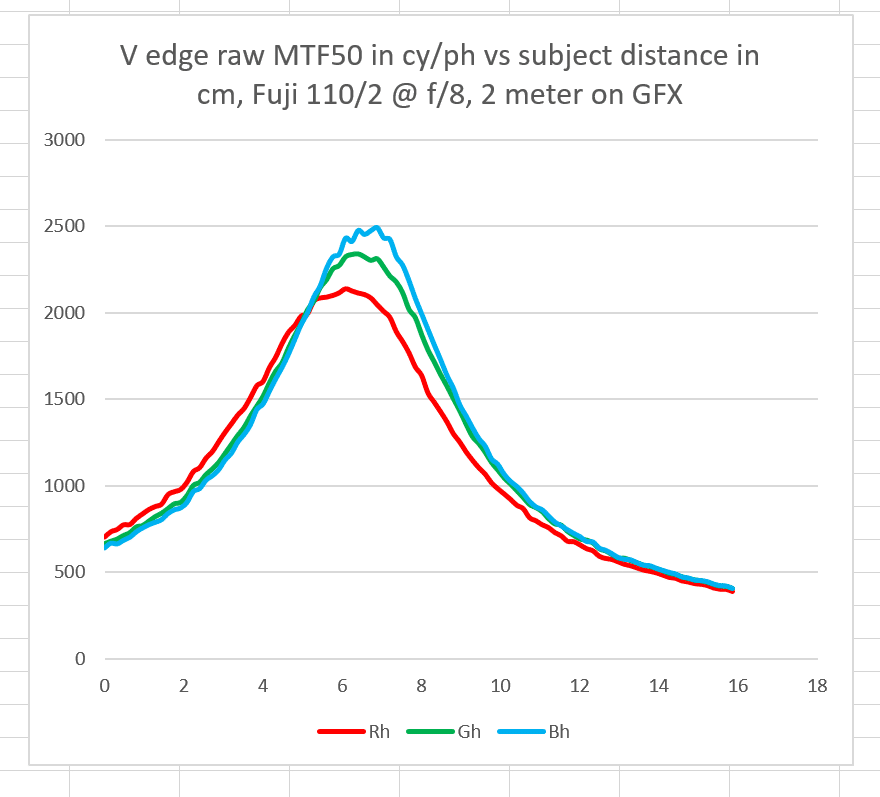

At f/8, things are deteriorating due to diffraction — as they have been since f/2.8 — but are still quite good.

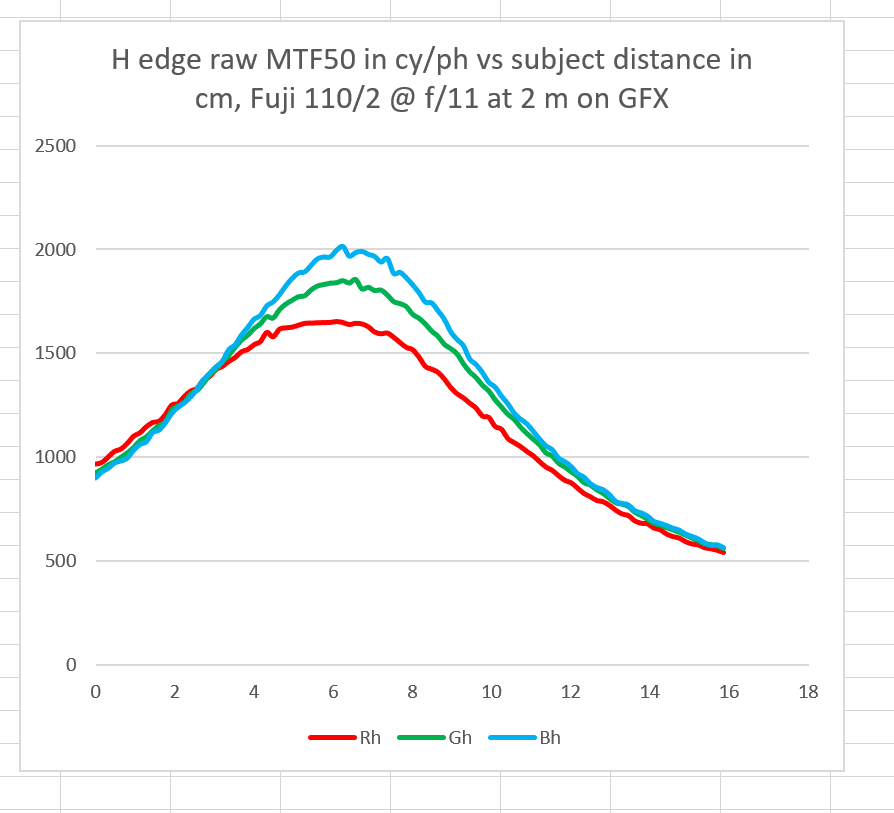

At f/11, there is essentially no LoCA, and the tiny bit that there is will be covered up by DOF. With respost to LoCa, this is a marvellously well corrected lens.

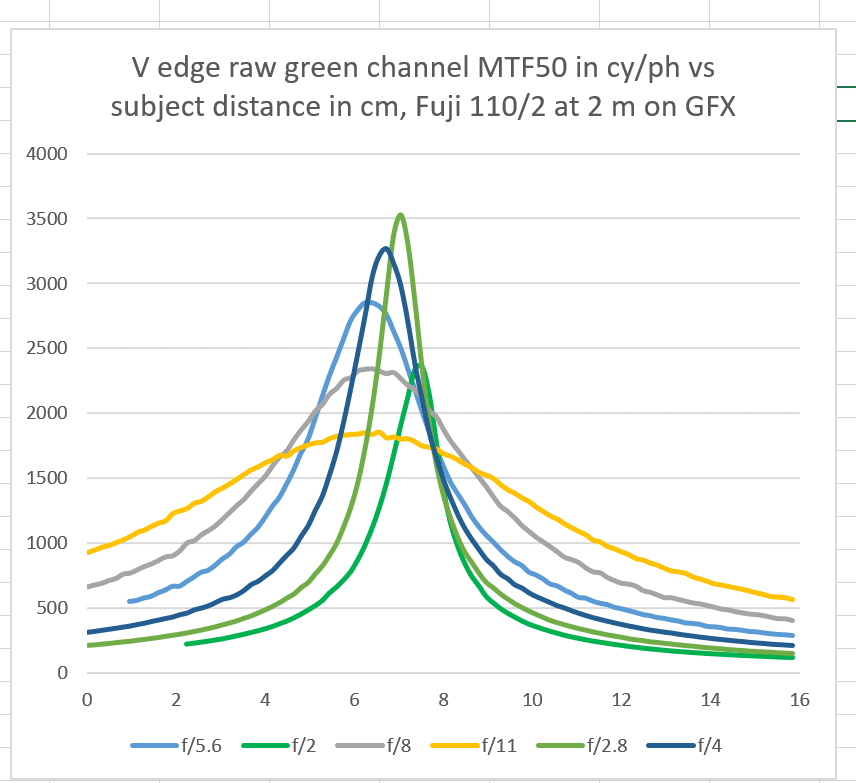

Putting all the green channel curves on one plot lets us look at focus shift.
There is enough focus shift that you’ll want to focus this lens at the taking aperture at f/2 and f/2.8. All smaller apertures can be focused at f/4, or f/5.6 if you’re really picky.
These curves are not smoothed at all. You are looking at the values that MTF Mapper calculated for each data point. There is very little noise. That tells me that MTF Mapper does better with the high-contrast, super-sharp (so sharp, you can literally cut your finger on it if your not careful) target, and that vibration is under control, possibly thanks to the electronic shutter.

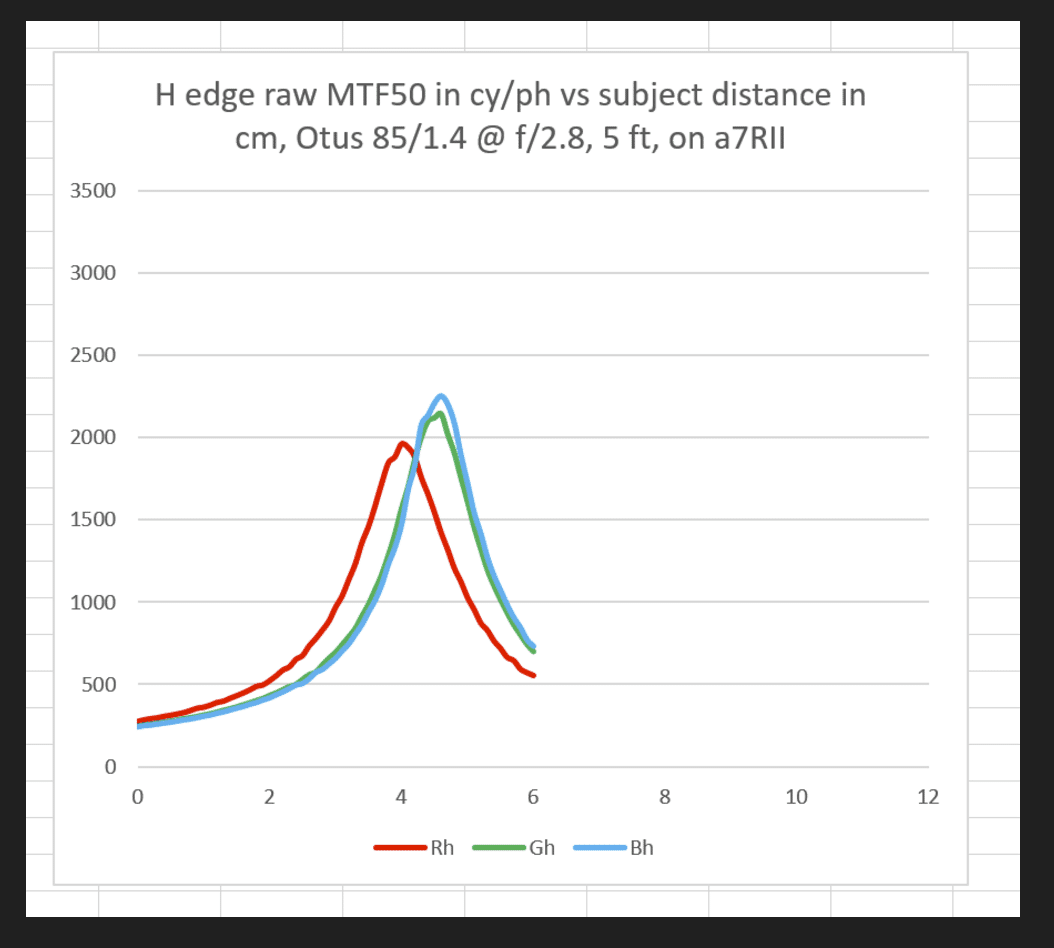

For a comparison, consider the f/2.8 LoCA curve that I made some time ago for the Zeiss 85 mm f/1.4 Otus on the Sony a7RII a while back with the same target (this time positioned horizontally. f/2 and f/2.8 tie for the Otus 85’s best f-stop. The target was a little closer here.
The absolute MTF50 values are quite a bit lower. That’s because:
- The GFX sensor is physically larger
- The GFX sensor has more pixels top to bottom
- The GFX sensor has a lower fill factor than the a7RII sensor
- The 110/2 is a great lens. I can’t tell if it’s as great as the Otus 85 without an optical bench,a nd even then the answer would depend on how one weights the various measurements.
The Fuji 110 is better corrected for LoCA than the Otus.
All I can say is, “wow!”.
Actual pictures coming soon.
