This is a continuation of a series of posts about blur management for landscape photography. The series starts here.

In the last post, I showed you the results of a blur management optimizer that I wrote this morning. Now I’m going to try it out on an outdoor scene. You’ll recognize it; it’s one I use a lot for testing. I used a GFX 50R and the Fuji 45 mm f/2.8 lens. I measured (with a Nikon Aculon laser rangefinder) and have marked some subject focal plane distances (roughly corrected for angle away from the lens axis) in meters.

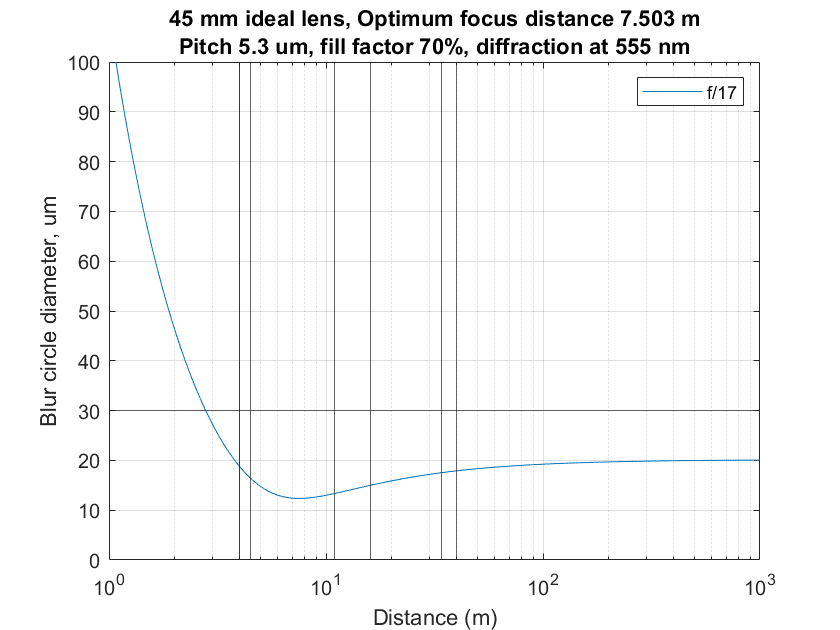

Let’s say all the marked parts of the subject are equally important, and see what the optimizer tells us:

It says to stop down a little past f/16, and focus at about 7 and a half meters. If you do that, the blur circle at the closest marked points will be 20 micrometers (um), and it will be at least that good from there to infinity. A 20 um blur circle is not very sharp — it’s about 4 pixel pitches, after all — but that’s the best we can do if we are about all those things being as sharp as they can be in one capture. The horizontal line that interests the vertical axis at 30 um shows one of the standard CoCs that’s used in DOF calculators. The vertical lines mark the distance to the marked places in the scene. You’ll note that the greatest sharpness (smallest blur circle) is achieved where there’s nothing we care about. Too bad.

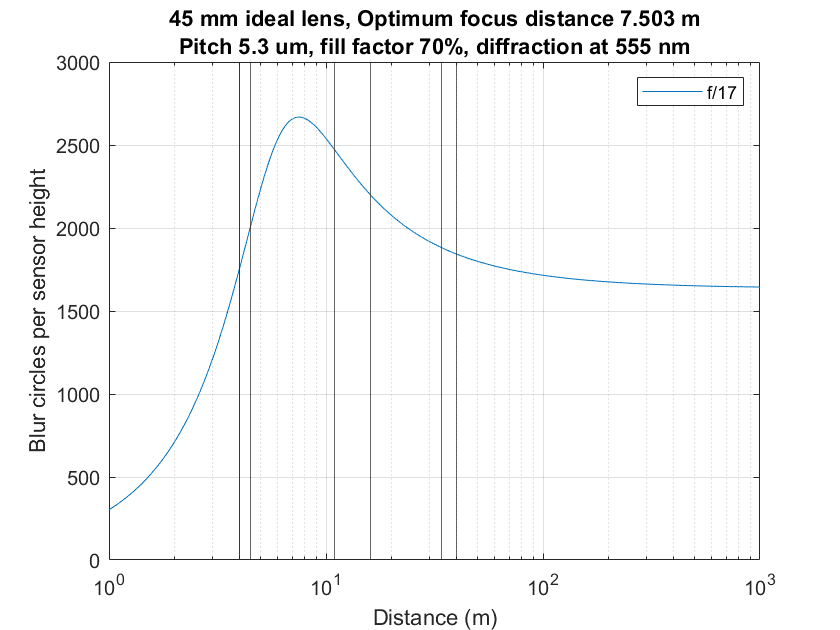

Here’s the same data but inverted, so we’re looking at the number of blur circles per sensor height:

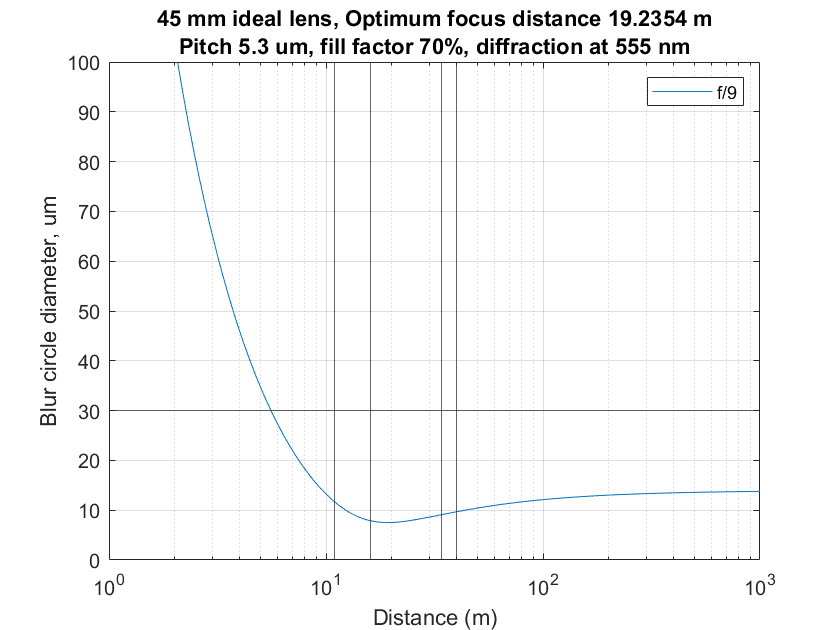

Now let’s say we don’t care about any of the three lower foreground areas. Now we get:

We can open up more, and thus the largest blur circle for our points of interest is about twice the pixel pitch, which is passably sharp.

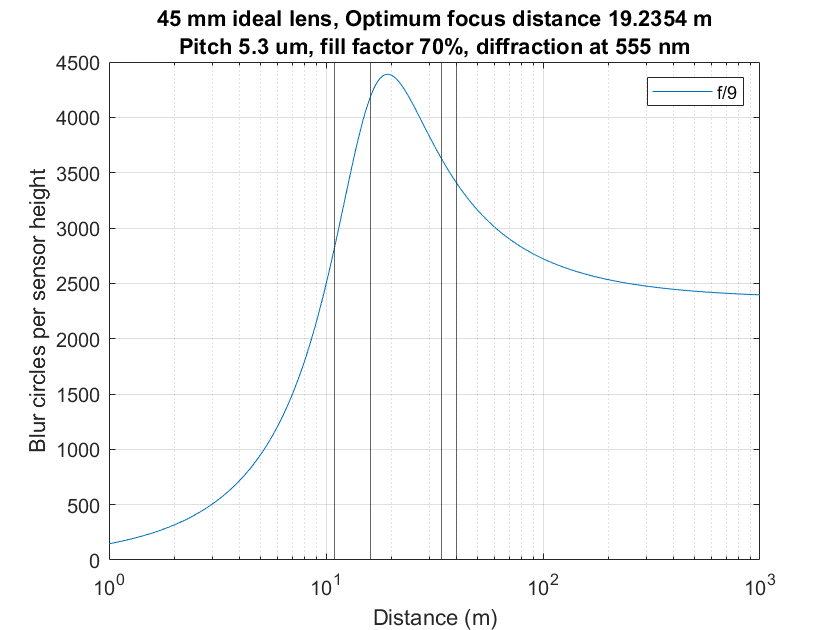

Looking at it the other way:

I wouldn’t be to apprehensive about trying to shoot this shot. I would be most uncomfortable trying to pull the top one — trying to get the foreground sharp, too — off.

Ilya says

Your computation seem to (approximately) support the “Double the distance” rule (which says if you want objects from some distance to infinity to be sharp, you should focus to the distance that is double the distance to the closest object).

Carsten says

The “Double Distance Rule” or “Hyperfocal Distance Rule” also (exactly) applies when you take diffraction into accout. I am sure Jim can show this using his calculations. But it only applies if your farthest distance is at infinity.

If, however, you are interested in objects in a distance range from 1 to 2 meters, for example, the optimum focusing distance is at 1.33 meters (independent of the focal length).

I think, in general you are more interested in getting sharpness in a distance range from A to B, with A < B < infinity, and in having a little blur at infinity, for this give you a depth cue in your images

Erik Kaffehr says

Hi Jim,

Would be interesting to compare equivalent focal lengths between 24×36 mm and 33×44 , like 50 mm on 24×36 and 63 mm.

The CoC per picture height may be the most relevant measure.

Best regards

Erik

JimK says

Here you go, Erik:

https://blog.kasson.com/the-last-word/comparing-blur-circles-across-formats-and-sensors/
